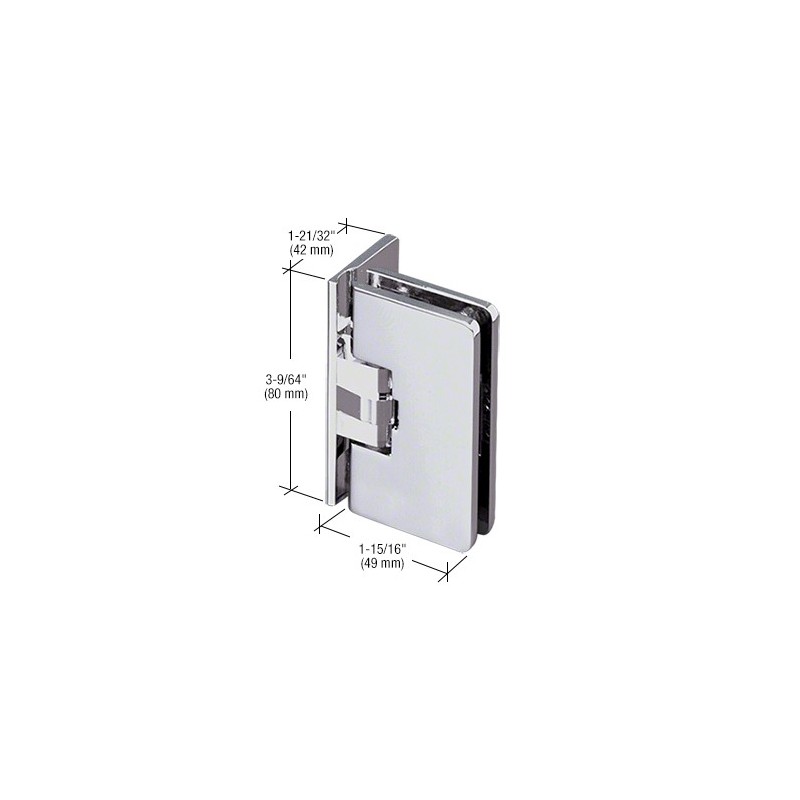

CRL Chrome Milano 044 Series Wall Mount Full Offset Back Plate Hinge - M1L044CH
Traditionally designed CRL Milano Series Hinges are constructed of solid brass for reliable and durable performance. The closing action of the Milano allows precise closing of the door to zero degrees. Two Wall Mount styles and three Glass-to-Glass styles provide design flexibility. The Milano Series offers five elegant finishes from which to choose, and will accommodate tempered safety glass from 1/4" (6 mm) to 5/16" (8 mm) thick.
Wall Mount Offset Back Plate (Allows Clean Sight Line From Shower Exterior)
Precise Closing Feature to Zero Degrees
Available in Several Beautiful Finishes
Three Year Warranty
Wall Mount Offset Back Plate (Allows Clean Sight Line From Shower Exterior)
Precise Closing Feature to Zero Degrees
Available in Several Beautiful Finishes
Three Year Warranty
Catalog Number: M1L044CH
Also Available in These Catalogs:
SD16 Frameless Shower Door Hardware 2015, PAGE 146S
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 199J
Color: Chrome
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Minimum Order: 1 Each
Also Available in These Catalogs:
SD16 Frameless Shower Door Hardware 2015, PAGE 146S
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 199J
Color: Chrome
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
M1L044CH CRL Chrome Milano 044 Series Wall Mount Full Offset Back Plate Hinge
M1L044SC CRL Satin Chrome Milano 044 Series Wall Mount Full Offset Back Plate Hinge
M1L044CH CRL Chrome Milano 044 Series Wall Mount Full Offset Back Plate Hinge
M1L044SC CRL Satin Chrome Milano 044 Series Wall Mount Full Offset Back Plate Hinge
Using two hinges with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 60 lbs. (27 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 90 lbs. (41 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness: 1/4" (6 mm) to 5/16" (8 mm) Tempered Safety Glass
Special Features: Hinge has Precise Closing Feature to 0 degree
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out
Closing Type: Precise Closing to 0 degree
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
For more information contact CRL Shower Door Technical Sales Department.
Using three hinges with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 90 lbs. (41 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness: 1/4" (6 mm) to 5/16" (8 mm) Tempered Safety Glass
Special Features: Hinge has Precise Closing Feature to 0 degree
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out
Closing Type: Precise Closing to 0 degree
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
For more information contact CRL Shower Door Technical Sales Department.
