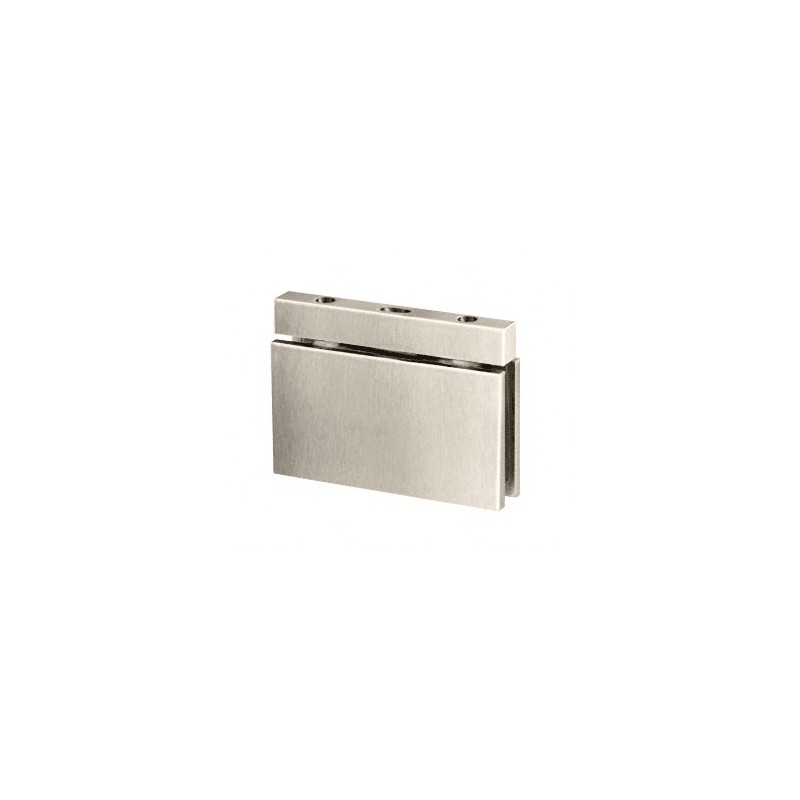

CRL Brushed Nickel New York Glass-to-Header Top Mount Shower Door Pivot Hinge - 3803088

The CRL New York Series Shower Door Pivot Hinge features precision machined 300 Series stainless steel components. The New York Series pivot hinges offer even more possibilities for unique designs and applications. They can be used with our frameless header systems to create shower enclosures that are not attached to the ceiling. This series hinge uses non-mouse ear design for added adjustment. It has precision wound stainless steel return springs and is self-closing from 25º to self centering 0º return. (5º positive closure and 45º configurations available) Matched finish stainless steel Allen style clamp screws with an Allen wrench is included. Wall mount hinges include matched finish stainless steel mounting screws. Conservatively rated at 50 pounds per hinge.
For 3/8" and 1/2" (10 and 12 mm) Tempered Glass
Solid Forged Brass Construction
Available in Several Finishes
Catalog Number: 3803088
Also Available in These Catalogs:
Color: Brushed Nickel
Maximum
Door Weight: Capacities
Door Width
2 Hinges 120 lbs: 32" (812.8 mm)
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
CATALOG NUMBER DESCRIPTION COLOR
3803088 CRL Brushed Nickel New York Glass-to-Header Top Mount Shower Door Pivot Hinge
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 120 pounds (54 kg) with a maximum width of 32" (813 mm).
