Made of solid brass, and available in numerous stock finishes, these CRL No-Drill Fixed Panel Clamps provide an alternative to Clamps requiring drilled holes or notches in the glass. Two nylon tipped set screws are tightened to secure the glass. Mounting screws are also provided for the wall/ceiling/floor. Silicone must also be used for reinforcement along all glass edges where Clamps are used.
Catalog Number: NDC4MGM
Also Available in These Catalogs:
This item is currently only available in Australia and surrounding areas

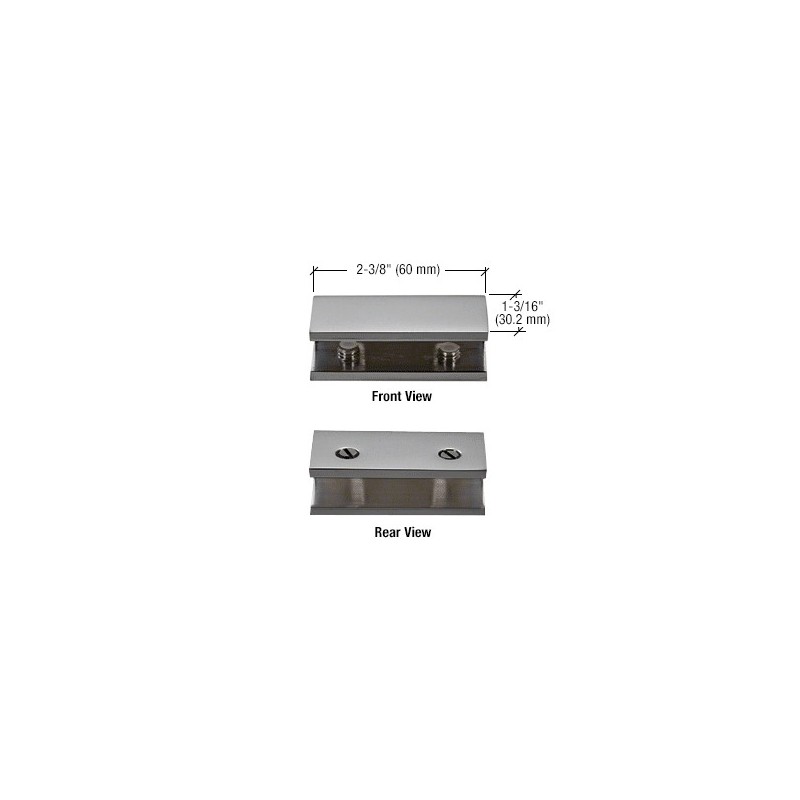

Glass Thickness Range: 3/8" or 5/16" (10 or 8 mm)
Width: 2-3/8" (60 mm)
Height: 1-1/8" (28 mm)
Ship Via: No UPS - Common Carrier Only
Shipping Weight: 5 oz (150g)
Case Qty: 50
Minimum Order: 1 Each
Also Available in These Catalogs:
This item is currently only available in Australia and surrounding areas
Glass Thickness Range: 3/8" or 5/16" (10 or 8 mm)
Width: 2-3/8" (60 mm)
Height: 1-1/8" (28 mm)
Ship Via: No UPS - Common Carrier Only
Shipping Weight: 5 oz (150g)
Case Qty: 50
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
NDC4CH CRL Polished Chrome No-Drill Fixed Panel Glass Clamp
NDC4MBL CRL Matte Black No-Drill Fixed Panel Glass Clamp
NDC4BR CRL Polished Brass No-Drill Fixed Panel Glass Clamp
NDC40RB CRL Oil Rubbed Bronze No-Drill Fixed Panel Glass Clamp
NDC4ABC0 CRL Antique Brushed Copper No-Drill Fixed Panel Glass Clamp
NDC4ABR CRL Antique Brass No-Drill Fixed Panel Glass Clamp
NDC4BBRZ CRL Brushed Bronze No-Drill Fixed Panel Glass Clamp
NDC4BN CRL Brushed Nickel No-Drill Fixed Panel Glass Clamp
NDC4PN CRL Polished Nickel No-Drill Fixed Panel Glass Clamp
NDC4SC CRL Satin Chrome No-Drill Fixed Panel Glass Clamp
NDC4CH CRL Polished Chrome No-Drill Fixed Panel Glass Clamp
NDC4MBL CRL Matte Black No-Drill Fixed Panel Glass Clamp
NDC4BR CRL Polished Brass No-Drill Fixed Panel Glass Clamp
NDC40RB CRL Oil Rubbed Bronze No-Drill Fixed Panel Glass Clamp
NDC4ABC0 CRL Antique Brushed Copper No-Drill Fixed Panel Glass Clamp
NDC4ABR CRL Antique Brass No-Drill Fixed Panel Glass Clamp
NDC4BBRZ CRL Brushed Bronze No-Drill Fixed Panel Glass Clamp
NDC4BN CRL Brushed Nickel No-Drill Fixed Panel Glass Clamp
NDC4PN CRL Polished Nickel No-Drill Fixed Panel Glass Clamp
NDC4SC CRL Satin Chrome No-Drill Fixed Panel Glass Clamp
IMPORTANT NOTE: Do not hinge a door off a fixed panel using these Clamps. Clamps must be used on minimum of three sides of fixed panel (top, bottom, and at least one side). Silicone must be used for reinforcement along the entire edge of the glass where Clamps are used. It is the responsibility of the installer to determine if adequate structural backing support is being used.
SPECIFICATIONS:
Glass Thickness: 5/16" to 3/8" (8 to 10 mm)
Material: Solid Brass
Includes: Mounting Screw and Clear Gaskets
No Glass Fabrication Required
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colours can vary depending on your computer's video card and on how your monitor's color is adjusted.
SPECIFICATIONS:
Glass Thickness: 5/16" to 3/8" (8 to 10 mm)
Material: Solid Brass
Includes: Mounting Screw and Clear Gaskets
No Glass Fabrication Required
