CRL Polished Stainless North American Patch Door Kit for Use with Overhead Door Closer - Without Lock - PHA2PS

Finish: POLISHED STAINLESS
$190.64
Quantity

CRL PHA2 North American Patch Door Kits come with all the hardware to complete a single door (except the overhead closer and glass). Pivot setback is 2-3/4" (70 mm). The Top Patch Fitting (Cat. No. PH20C) is adjustable after the door is installed. Overhead door closer must be ordered separately.
Adjustable Top Fitting
Five Architectural Finishes
Door Closer Not Included
Use Monolithic Tempered Glass
Catalog Number: PHA2PS
Also Available in These Catalogs:
CRL14D Door and Entrance Catalog, PAGE 136D
AH18 Architectural Hardware Catalog 2018, PAGE 198Z
CRL93A Architectural Hardware, PAGE CH118
Color: Polished Stainless
Ship Via: Can Ship UPS
CATALOG NUMBER DESCRIPTION COLOR
PHA2A CRL Satin Anodized North American Patch Door Kit for Use with Overhead Door Closer - Without Lock
PHA2BR CRL Polished Brass North American Patch Door Kit for Use with Overhead Door Closer - Without Lock
PHA2BS CRL Brushed Stainless North American Patch Door Kit for Use with Overhead Door Closer - Without Lock
PHA2DU CRL Black Bronze Anodized North American Patch Door Kit for Use with Overhead Door Closer - Without Lock
PHA2PS CRL Polished Stainless North American Patch Door Kit for Use with Overhead Door Closer - Without Lock
PHA2SB CRL Satin Brass North American Patch Door Kit for Use with Overhead Door Closer - Without Lock

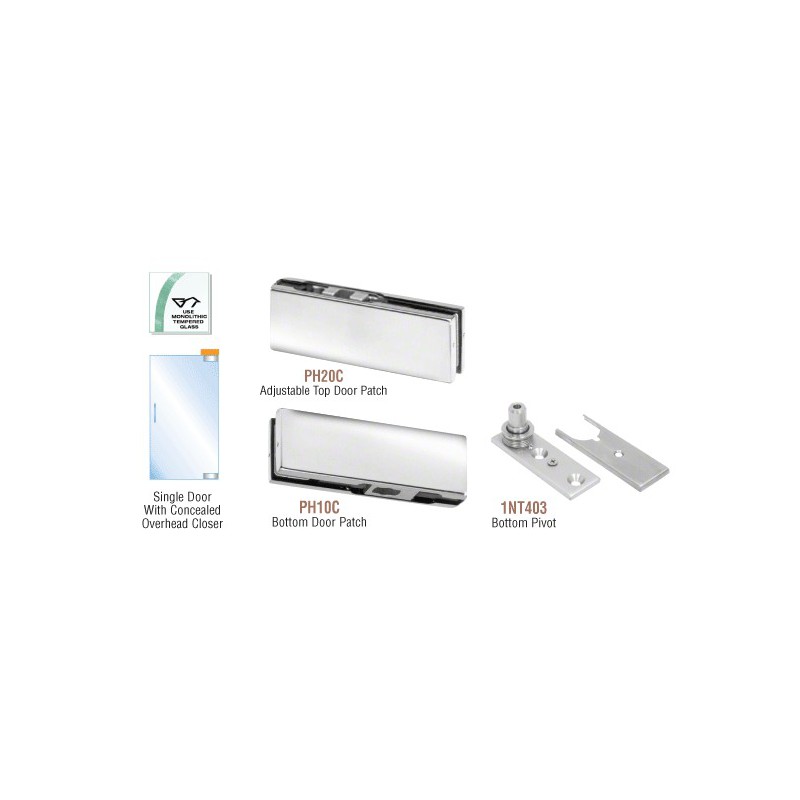

Kit Contains:
One - PH20C Adjustable Top Door Patch
One - PH10C Bottom Door Patch
One - 1NT403 Bottom Pivot
Gaskets for 3/8" or 1/2" (10 or 12 mm) Tempered Glass (holes and notches are required in the glass).
Kits with Lock also come with one each Cat. No. AMR205 patch lock. Cylinders, thumbturns, and keepers are ordered separately.
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
