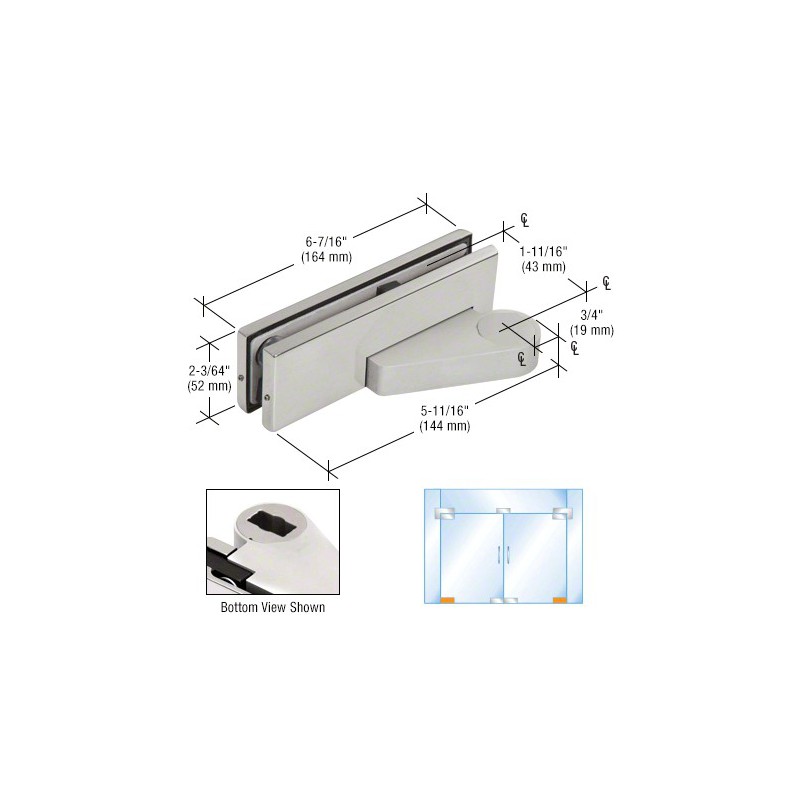

CRL Brushed Stainless Left Offset Bottom Door Patch Fitting - 0PF10LBS
The CRL Bottom of Door Offset Patch Fitting is designed to work with any of our other offset fittings. Allowing for a full 180º door swing, these fittings are available for right or left hand configurations, in your choice of brushed or polished stainless steel. glass fabrication templates are included in the box.
Allows for 180º Door Swing
For 3/8" or 1/2" (10 or 12 mm) Glass
Left and Right Handed
Allows for 180º Door Swing
For 3/8" or 1/2" (10 or 12 mm) Glass
Left and Right Handed
Catalog Number: 0PF10LBS
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 219Z
CRL63A Architectural Hardware Master, PAGE 369H
CRL93A Architectural Hardware, PAGE CH129
Color: Brushed Stainless
Glass Thickness: 3/8" or 1/2" (10 or 12 mm)
Hand: LH/RHR
Ship Via: Can Ship UPS
Shipping Weight: 3 lb (1.36kg)
Minimum Order: 1 Each
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 219Z
CRL63A Architectural Hardware Master, PAGE 369H
CRL93A Architectural Hardware, PAGE CH129
Color: Brushed Stainless
Glass Thickness: 3/8" or 1/2" (10 or 12 mm)
Hand: LH/RHR
Ship Via: Can Ship UPS
Shipping Weight: 3 lb (1.36kg)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
0PF10LBS CRL Brushed Stainless Left Offset Bottom Door Patch Fitting
0PF10LPS CRL Polished Stainless Left Offset Bottom Door Patch Fitting
0PF10RBS CRL Brushed Stainless Right Offset Bottom Door Patch Fitting
0PF10RPS CRL Polished Stainless Right Offset Bottom Door Patch Fitting
0PF10LBS CRL Brushed Stainless Left Offset Bottom Door Patch Fitting
0PF10LPS CRL Polished Stainless Left Offset Bottom Door Patch Fitting
0PF10RBS CRL Brushed Stainless Right Offset Bottom Door Patch Fitting
0PF10RPS CRL Polished Stainless Right Offset Bottom Door Patch Fitting
INCLUDES:
- High Density Cast Body
- Cover Plates (Finish of Your Choice)
- Gasket for 3/8" or 1/2" (10 or 12.7 mm) Glass
- Template and Instructions
SPECIFICATIONS:
For Use With:
- CRL8300 Series Floor Closers
- CRL8400 Series Floor Closers
- INT402 Bottom Free Swinging Pivot
- INT403 Adjustable Bottom Free Swinging Pivot
- INT406 Adjustable Bottom Free Swinging Pivot
Glass Fabrication Required:
One 3/4" (19 mm) Diameter
Hole and Corner Notch
Comes With: Template and Instructions
- High Density Cast Body
- Cover Plates (Finish of Your Choice)
- Gasket for 3/8" or 1/2" (10 or 12.7 mm) Glass
- Template and Instructions
SPECIFICATIONS:
For Use With:
- CRL8300 Series Floor Closers
- CRL8400 Series Floor Closers
- INT402 Bottom Free Swinging Pivot
- INT403 Adjustable Bottom Free Swinging Pivot
- INT406 Adjustable Bottom Free Swinging Pivot
Glass Fabrication Required:
One 3/4" (19 mm) Diameter
Hole and Corner Notch
Comes With: Template and Instructions
