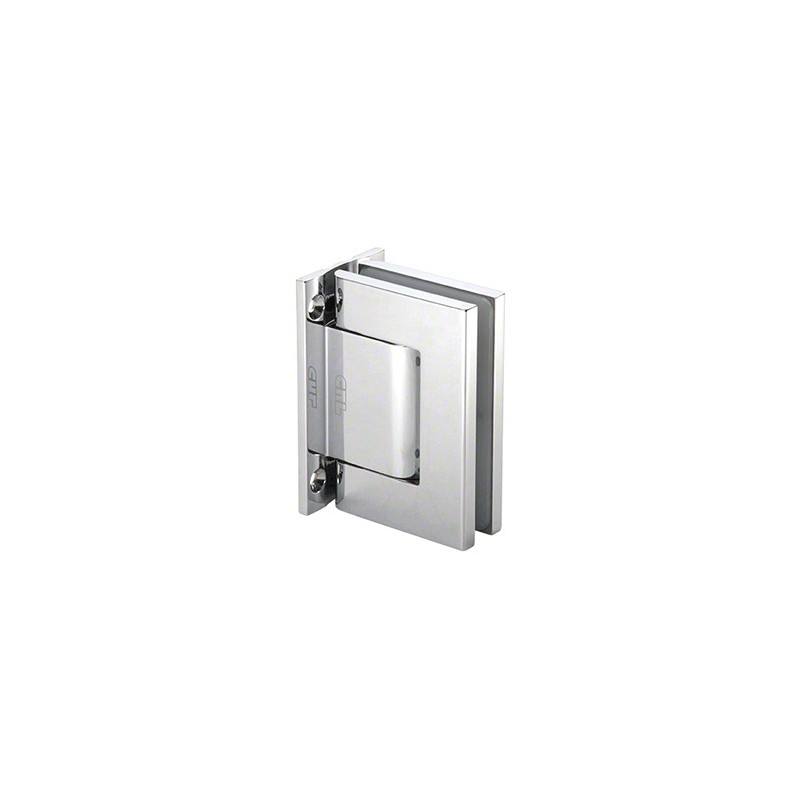

CRL Brite Chrome Oil Dynamic Full Back Plate Wall-to-Glass Hinge - NHO - H8210CH
This CRL Full Back Plate Wall Mount Hinge swings in and out a full 90 degrees, with stop at 0 degree. Closing speed can be adjusted. For doors up to 39" (1 m) wide. Maximum weight per two hinges is 220 lbs. (100 kg).
For Self-Closing Glass Doors from 5/16" to 9/16" (8 to 13.52 mm) Thick
Recommended for Use as Interior Entry Doors to Bathroom/Shower Area (Not for Shower Doors)
Aluminum Body in Your Choice of Three Finishes: Brite Chrome, Brushed Satin, and Satin Anodized
Adjustable Closing Speed
For Self-Closing Glass Doors from 5/16" to 9/16" (8 to 13.52 mm) Thick
Recommended for Use as Interior Entry Doors to Bathroom/Shower Area (Not for Shower Doors)
Aluminum Body in Your Choice of Three Finishes: Brite Chrome, Brushed Satin, and Satin Anodized
Adjustable Closing Speed
Catalog Number: H8210CH
Also Available in These Catalogs:
Color: Chrome
Closing Type: No Hold Open
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Minimum Order: 1 Each
Also Available in These Catalogs:
Color: Chrome
Closing Type: No Hold Open
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
H8210CH CRL Brite Chrome Oil Dynamic Full Back Plate Wall-to-Glass Hinge - NHO
H8210SA CRL Satin Anodized Oil Dynamic Full Back Plate Wall-to-Glass Hinge - NHO
H8210SN CRL Brushed Satin Nickel Oil Dynamic Full Back Plate Wall-to-Glass Hinge - NHO
H8210CH CRL Brite Chrome Oil Dynamic Full Back Plate Wall-to-Glass Hinge - NHO
H8210SA CRL Satin Anodized Oil Dynamic Full Back Plate Wall-to-Glass Hinge - NHO
H8210SN CRL Brushed Satin Nickel Oil Dynamic Full Back Plate Wall-to-Glass Hinge - NHO
The Oil Dynamic Hinge represents the evolution and the synthesis between automatic mechanical hinges and hydraulic door closers. Designed for use on interior doors (not for Shower Doors) leading into the bathroom area, Oil Dynamic allows you to design a self-closing door without the need of a floor-mounted or overhead closing device. This gives you the advantage of being able to install an 'all-glass' door in an existing opening without the need for extensive retrofitting of hardware into the floor or overhead.
Properly mounted, two Oil Dynamic Hinges will support a 5/16" to 9/16" (8 to 13.52 mm) thick glass door up to 39" (1 m) in width and weighing up to 220 lbs. (100 kg). (Do not use more than two hinges.) A control valve lets you adjust the hinge to the desired closing speed. And Oil Dynamic is ambidextrous, giving you even more design freedom.
The Oil Dynamic Hinge features an aluminum body in distinct configurations for Wall Mount and Glass-to-Glass applications. Oil Dynamic has been subject to strict testing (over 1 million cycles), assuring long lasting service.
SPECIFICATIONS:
Glass Thickness Range: 5/16" to 9/16" (8 to 13.52 mm)
Construction: Aluminum
Hinge Swings: 90 Degrees Inwards and Outwards (Except 31M8060 Model, Which Only Swings One Way)
Closing Type: Automatic Closing From 0 to 80 Degrees
Cut-Out Required
Includes: Snap-In Molded Gaskets for 5/16" to 9/16" (8 to 13.52 mm) Glass; Maximum Capacities Using Two Hinges:
Door Width: 39" (1 m); Door Weight: 220 lbs. (100 kg)
NOTE: Do not use more than two hinges on one door.
Properly mounted, two Oil Dynamic Hinges will support a 5/16" to 9/16" (8 to 13.52 mm) thick glass door up to 39" (1 m) in width and weighing up to 220 lbs. (100 kg). (Do not use more than two hinges.) A control valve lets you adjust the hinge to the desired closing speed. And Oil Dynamic is ambidextrous, giving you even more design freedom.
The Oil Dynamic Hinge features an aluminum body in distinct configurations for Wall Mount and Glass-to-Glass applications. Oil Dynamic has been subject to strict testing (over 1 million cycles), assuring long lasting service.
SPECIFICATIONS:
Glass Thickness Range: 5/16" to 9/16" (8 to 13.52 mm)
Construction: Aluminum
Hinge Swings: 90 Degrees Inwards and Outwards (Except 31M8060 Model, Which Only Swings One Way)
Closing Type: Automatic Closing From 0 to 80 Degrees
Cut-Out Required
Includes: Snap-In Molded Gaskets for 5/16" to 9/16" (8 to 13.52 mm) Glass; Maximum Capacities Using Two Hinges:
Door Width: 39" (1 m); Door Weight: 220 lbs. (100 kg)
NOTE: Do not use more than two hinges on one door.
