CRL Brushed Bronze Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge - P1N037BBRZ
The CRL Pinnacle Hinge is similar to our popular Geneva Series Hinge, but with one design change: Pinnacle has radius corners and beveled edges for a sleek appearance. Pinnacle Hinges accommodate 5/16" (8 mm) to 1/2" (12 mm) thick tempered safety glass, and are self-centering when within 15 degree of the closed position. Pinnacle Hinges are constructed of solid brass, and have stainless steel plunger tips, pins, and springs to ensure long service life and reliable door closure. The Pinnacle Hinge also contains the same Reversible 5 degree Pivot Pin featured in our Geneva, Cathedral, Roman, Ultimate, and Elite Series Hinges. A Custom Pivot Pin is also available for "off-angle" installations.
Self-Centering with Reversible 5 Degree Pivot Pin
Available in Several Beautiful Finishes
Three Year Warranty
Wall Mount Full Back Plate Standard Model (Factory Set for Standard Closing Position)
Use Monolithic Tempered Glass
Self-Centering with Reversible 5 Degree Pivot Pin
Available in Several Beautiful Finishes
Three Year Warranty
Wall Mount Full Back Plate Standard Model (Factory Set for Standard Closing Position)
Use Monolithic Tempered Glass
Catalog Number: P1N037BBRZ
Also Available in These Catalogs:
SD16 Frameless Shower Door Hardware 2015, PAGE 116S
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 145J
Color: Brushed Bronze

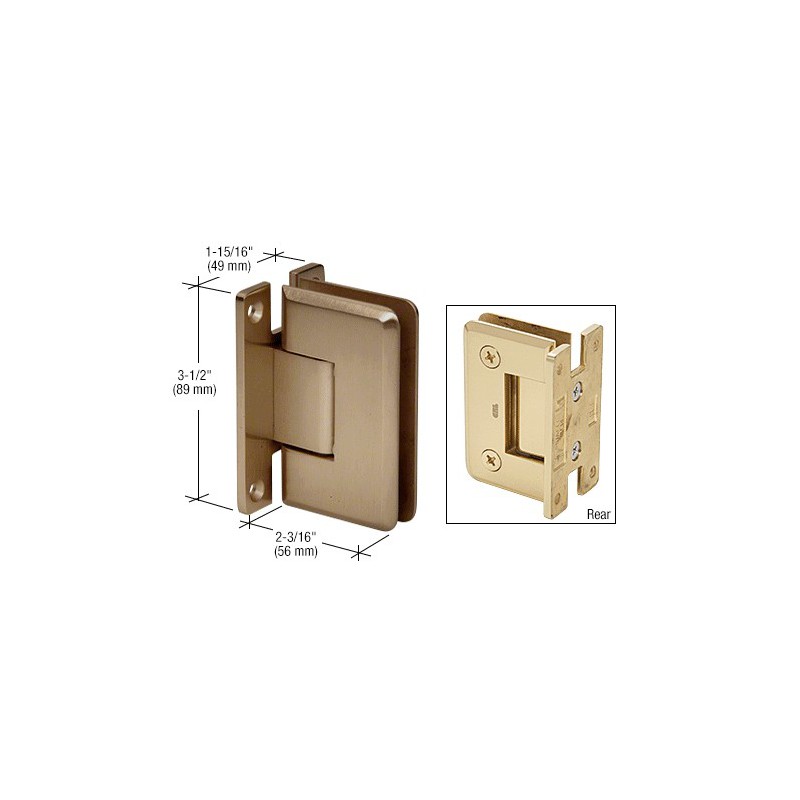

Height: 3-1/2" (89 mm)
Width: 2-3/16" (56 mm)
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Minimum Order: 1 Each
Also Available in These Catalogs:
SD16 Frameless Shower Door Hardware 2015, PAGE 116S
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 145J
Color: Brushed Bronze
Height: 3-1/2" (89 mm)
Width: 2-3/16" (56 mm)
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
P1N037CH CRL Polished Chrome Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037MBL CRL Matte Black Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037BR CRL Polished Brass Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N0370RB CRL Oil Rubbed Bronze Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037ABC0 CRL Antique Brushed Copper Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037ABL CRL All Black Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037ABN CRL Antique Brushed Nickel Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037ABR CRL Antique Brass Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037ABRZ CRL Antique Bronze Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037BBRZ CRL Brushed Bronze Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037BN CRL Brushed Nickel Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037BNBA CRL Brushed Nickel with Brass Accents Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037BSC CRL Brushed Satin Chrome Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037CBA CRL Chrome with Brass Accents Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037GM CRL Gun Metal Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037GP CRL Gold Plated Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037PC0 CRL Polished Copper Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037PN CRL Polished Nickel Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037SB CRL Satin Brass Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037SC CRL Satin Chrome Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037SN CRL Satin Nickel Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037UBR CRL Ultra Brass Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037CH CRL Polished Chrome Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037MBL CRL Matte Black Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037BR CRL Polished Brass Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N0370RB CRL Oil Rubbed Bronze Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037ABC0 CRL Antique Brushed Copper Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037ABL CRL All Black Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037ABN CRL Antique Brushed Nickel Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037ABR CRL Antique Brass Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037ABRZ CRL Antique Bronze Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037BBRZ CRL Brushed Bronze Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037BN CRL Brushed Nickel Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037BNBA CRL Brushed Nickel with Brass Accents Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037BSC CRL Brushed Satin Chrome Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037CBA CRL Chrome with Brass Accents Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037GM CRL Gun Metal Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037GP CRL Gold Plated Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037PC0 CRL Polished Copper Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037PN CRL Polished Nickel Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037SB CRL Satin Brass Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037SC CRL Satin Chrome Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037SN CRL Satin Nickel Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
P1N037UBR CRL Ultra Brass Pinnacle 037 Series Wall Mount Full Back Plate Standard Hinge
STANDARD REVERSIBLE PIVOT PIN: Each Pinnacle Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Pinnacle Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.
CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).
Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm) Tempered Safety Glass
Special Feature: Wall Mount Hinges and 180 degree Glass-to-Glass Hinge offer a choice of a Standard Model, factory set at standard closing position (0 degree), or a 5 degree Pre-Set Model for tighter closure into shower interior.
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree out
Closing Type: Self-Centering when within 15 degree of closed position
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. P1N13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.
CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).
Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm) Tempered Safety Glass
Special Feature: Wall Mount Hinges and 180 degree Glass-to-Glass Hinge offer a choice of a Standard Model, factory set at standard closing position (0 degree), or a 5 degree Pre-Set Model for tighter closure into shower interior.
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree out
Closing Type: Self-Centering when within 15 degree of closed position
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. P1N13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.
