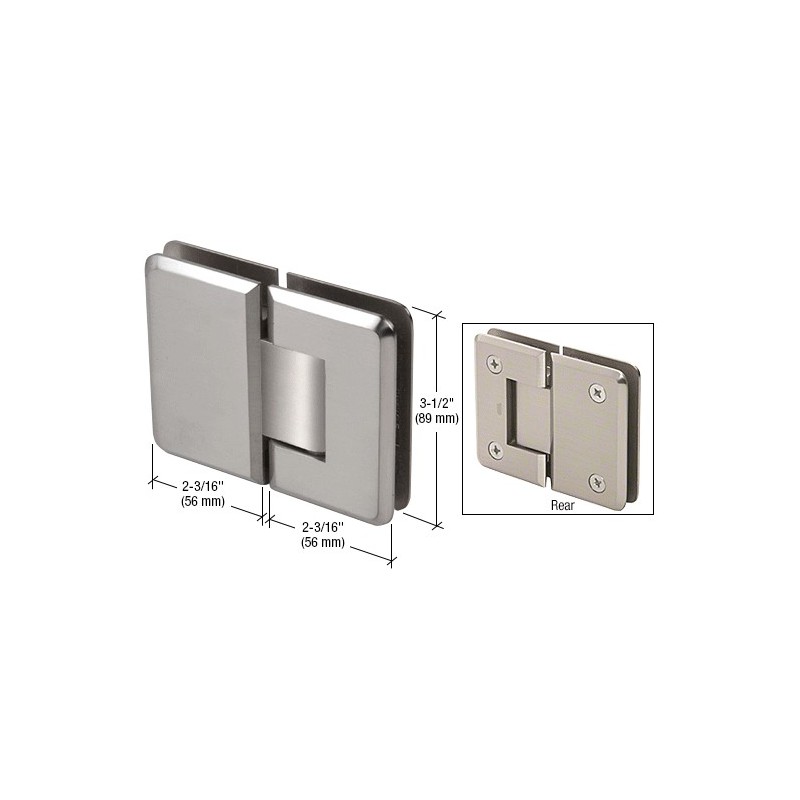

CRL Brushed Satin Chrome Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge - P1N180BSC
The CRL Pinnacle Hinge is similar to our popular Geneva Series Hinge, but with one design change: Pinnacle has radius corners and beveled edges for a sleek appearance. Pinnacle Hinges accommodate 5/16" (8 mm) to 1/2" (12 mm) thick tempered safety glass, and are self-centering when within 15 degree of the closed position. Pinnacle Hinges are constructed of solid brass, and have stainless steel plunger tips, pins, and springs to ensure long service life and reliable door closure. The Pinnacle Hinge also contains the same Reversible 5 degree Pivot Pin featured in our Geneva, Cathedral, Roman, Ultimate, and Elite Series Hinges. A Custom Pivot Pin is also available for "off-angle" installations.
P1N180BSC has been superseded by Catalog Number: P1N580BSC. To view the replacement item, Click here
CATALOG NUMBER DESCRIPTION COLOR
P1N180CH CRL Polished Chrome Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180MBL CRL Matte Black Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180BR CRL Polished Brass Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N1800RB CRL Oil Rubbed Bronze Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180ABC0 CRL Antique Brushed Copper Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180ABN CRL Antique Brushed Nickel Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180ABR CRL Antique Brass Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180ABRZ CRL Antique Bronze Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180BBRZ CRL Brushed Bronze Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180BN CRL Brushed Nickel Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180BNBA CRL Brushed Nickel with Brass Accents Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180CBA CRL Chrome with Brass Accents Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180GM CRL Gun Metal Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180GP CRL Gold Plated Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180PN CRL Polished Nickel Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180SB CRL Satin Brass Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180SC CRL Satin Chrome Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180SN CRL Satin Nickel Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180UBR CRL Ultra Brass Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180WC CRL White with Chrome Accents Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180CH CRL Polished Chrome Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180MBL CRL Matte Black Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180BR CRL Polished Brass Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N1800RB CRL Oil Rubbed Bronze Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180ABC0 CRL Antique Brushed Copper Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180ABN CRL Antique Brushed Nickel Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180ABR CRL Antique Brass Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180ABRZ CRL Antique Bronze Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180BBRZ CRL Brushed Bronze Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180BN CRL Brushed Nickel Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180BNBA CRL Brushed Nickel with Brass Accents Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180CBA CRL Chrome with Brass Accents Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180GM CRL Gun Metal Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180GP CRL Gold Plated Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180PN CRL Polished Nickel Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180SB CRL Satin Brass Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180SC CRL Satin Chrome Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180SN CRL Satin Nickel Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180UBR CRL Ultra Brass Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
P1N180WC CRL White with Chrome Accents Pinnacle 180 Series 180 Degree Glass-to-Glass Standard Hinge
STANDARD REVERSIBLE PIVOT PIN: Each Pinnacle Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Pinnacle Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.
CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).
Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Wall Mount Hinges and 180 degree Glass-to-Glass Hinge offer a choice of a Standard Model, factory set at standard closing position (0 degree), or a 5 degree Pre-Set Model for tighter closure into shower interior.
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree out
Closing Type: Self-Centering when within 15 degree of closed position
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. P1N13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.
CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).
Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Wall Mount Hinges and 180 degree Glass-to-Glass Hinge offer a choice of a Standard Model, factory set at standard closing position (0 degree), or a 5 degree Pre-Set Model for tighter closure into shower interior.
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree out
Closing Type: Self-Centering when within 15 degree of closed position
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. P1N13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.
