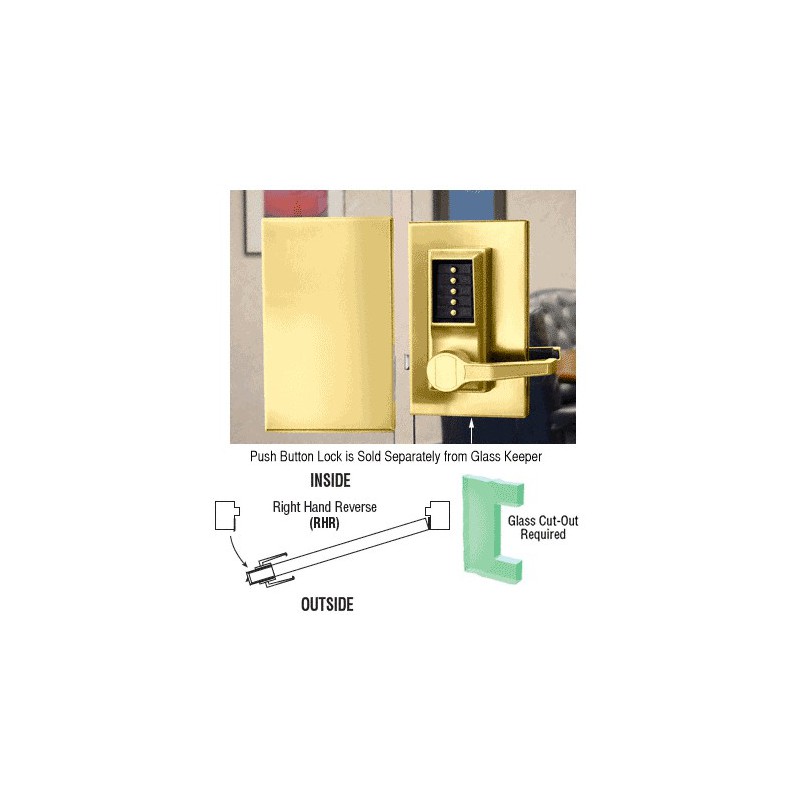

CRL Polished Brass 6" x 10" RHR Center Push Button Lock With Housing - DL611RCPB
CRL 6" x 10" Center Locks with Deadlatch offer the most diversity in lock function and security. Available in five attractive finishes for 1/2" (12 mm) heavy glass doors. The operation of the lock varies with the lock function. A simple cut-out in the glass is all that is required. No messy cement or silicone required for installing. Center Locks are available left and right handed.
Requires No Electrical Connections
Complies with A.D.A. Standards
Five Finishes Available
Use Monolithic Tempered Glass
Requires No Electrical Connections
Complies with A.D.A. Standards
Five Finishes Available
Use Monolithic Tempered Glass
Catalog Number: DL611RCPB
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 241Z
CRL63A Architectural Hardware Master, PAGE 251H
CRL83R Door and Window Replacement, PAGE 765W
CRL93A Architectural Hardware, PAGE CH105
DC14 Door Controls Catalog 2014, PAGE D413
LP11 Commercial Door Handles Catalog, PAGE L215
TH18 Transaction and Security Hardware Catalog, PAGE T569
Color: Polished Brass
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Minimum Order: 1 Each
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 241Z
CRL63A Architectural Hardware Master, PAGE 251H
CRL83R Door and Window Replacement, PAGE 765W
CRL93A Architectural Hardware, PAGE CH105
DC14 Door Controls Catalog 2014, PAGE D413
LP11 Commercial Door Handles Catalog, PAGE L215
TH18 Transaction and Security Hardware Catalog, PAGE T569
Color: Polished Brass
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
DL611RCBS CRL Brushed Stainless 6" x 10" RHR Center Push Button Lock With Housing
DL611RCDU CRL Black Bronze Anodized 6" x 10" RHR Center Push Button Lock With Housing
DL611RCPB CRL Polished Brass 6" x 10" RHR Center Push Button Lock With Housing
DL611RCPS CRL Polished Stainless 6" x 10" RHR Center Push Button Lock With Housing
DL611RCSC CRL Satin Anodized 6" x 10" RHR Center Push Button Lock With Housing
DL611RCBS CRL Brushed Stainless 6" x 10" RHR Center Push Button Lock With Housing
DL611RCDU CRL Black Bronze Anodized 6" x 10" RHR Center Push Button Lock With Housing
DL611RCPB CRL Polished Brass 6" x 10" RHR Center Push Button Lock With Housing
DL611RCPS CRL Polished Stainless 6" x 10" RHR Center Push Button Lock With Housing
DL611RCSC CRL Satin Anodized 6" x 10" RHR Center Push Button Lock With Housing
Office Lock Function: The Latchbolt is operated by lever on either side (except when outside lever is locked by rocker in faceplate) or by a key outside. Auxiliary Latchbolt deadlocks the main Latchbolt to prevent jimmying of lock. Turning inside lever will always retract the locking mechanism and allow exiting.
Entrance Lock: Latch bolt is operated by lever on either side (except when Deadbolt is projected). Dead bolt is operated by key outside and thumbturn inside. Turning inside lever will retract Latch bolt and Dead bolt simultaneously to allow exiting.
Passage Lock: Latchbolt is operated by lever on either side. Turning inside lever will always retract the locking mechanism and allow exiting.
Storeroom Lock: Latchbolt is operated by lever inside, and by key outside. The outside lever is always fixed. Auxiliary Latchbolt deadlocks the main Latchbolt to prevent jimmying of lock. Turning inside lever will always retract the locking mechanism to allow exiting. This lock is used primarily with Electric Strikes.
Classroom Lock: Latchbolt is operated by lever either side except when outside lever is locked by Key outside. Key operates latch and unlocks outside lever. Inside lever is always operable.
Entrance Lock: Latch bolt is operated by lever on either side (except when Deadbolt is projected). Dead bolt is operated by key outside and thumbturn inside. Turning inside lever will retract Latch bolt and Dead bolt simultaneously to allow exiting.
Passage Lock: Latchbolt is operated by lever on either side. Turning inside lever will always retract the locking mechanism and allow exiting.
Storeroom Lock: Latchbolt is operated by lever inside, and by key outside. The outside lever is always fixed. Auxiliary Latchbolt deadlocks the main Latchbolt to prevent jimmying of lock. Turning inside lever will always retract the locking mechanism to allow exiting. This lock is used primarily with Electric Strikes.
Classroom Lock: Latchbolt is operated by lever either side except when outside lever is locked by Key outside. Key operates latch and unlocks outside lever. Inside lever is always operable.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting Glass Experts customer service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
