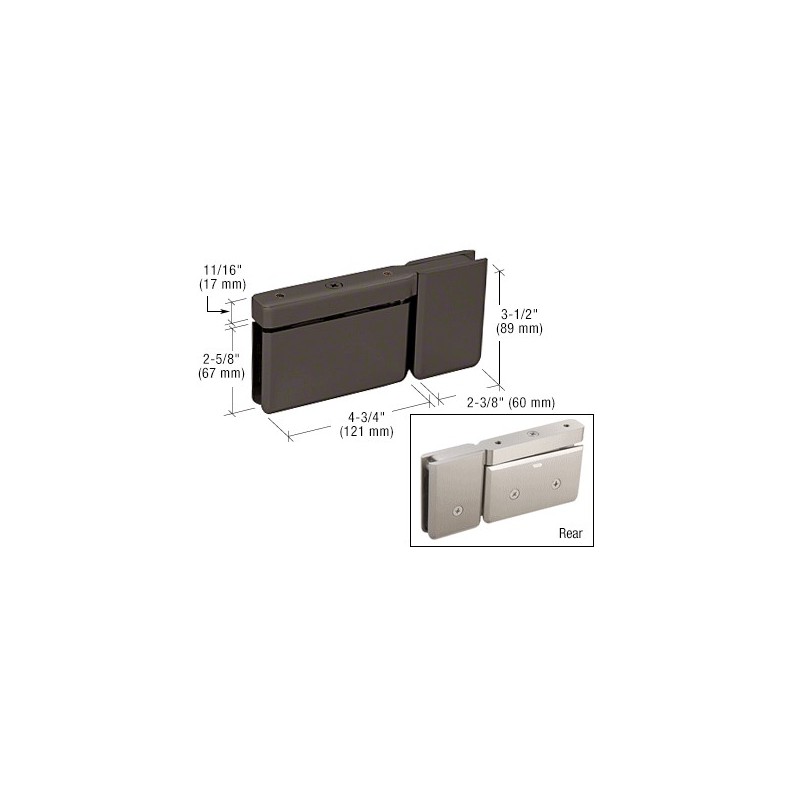

CRL Oil Rubbed Bronze Top or Bottom Mount Senior Prima Pivot Hinge with Attached U-Clamp - SRPPH070RB
Advantages of CRL Senior and Junior Prima Hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. The Glass-to-Fixed Transom Mount Pivot Hinge is used for doors having fixed transoms above them. When placed vertically, either style can be used in movable transom installations. These Pivot Hinges are self-centering, with four springs for maximum retention strength. The SRPPH01 Model is adaptable to our Deluxe Header System. Our SRPPH06 Model is only compatible with our EZ-Adjust Header System. It includes an adaptor used with our EZ-Adjust Header System. The Junior Prima Series is adaptable to our Junior Header Kit.
Top or Bottom Mount with Attached U-Clamp (Provides Alternative to Using Traditional Top or Bottom Mount with Attached U-Clamp (Provides Alternative to using Traditional Header Systems Under Certain Criteria (See "How-To-Do-It" Mounting Criteria)
Available in Several Beautiful Finishes
3 Year Warranty
Use Monolithic Tempered Glass
U.S. Patent 5,297,313
Top or Bottom Mount with Attached U-Clamp (Provides Alternative to Using Traditional Top or Bottom Mount with Attached U-Clamp (Provides Alternative to using Traditional Header Systems Under Certain Criteria (See "How-To-Do-It" Mounting Criteria)
Available in Several Beautiful Finishes
3 Year Warranty
Use Monolithic Tempered Glass
U.S. Patent 5,297,313
Catalog Number: SRPPH070RB
Also Available in These Catalogs:
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 126J
SD16 Frameless Shower Door Hardware 2015, PAGE 134S
CRL93A Shower Door, PAGE SD047
Color: Oil Rubbed Bronze
Height: 2" (51 mm)
Maximum Door Width: 31" (787 mm)
Maximum Weight: 117 lbs. (53 kg)
Ship Via: Can Ship UPS
Minimum Order: 1 Each
Also Available in These Catalogs:
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 126J
SD16 Frameless Shower Door Hardware 2015, PAGE 134S
CRL93A Shower Door, PAGE SD047
Color: Oil Rubbed Bronze
Height: 2" (51 mm)
Maximum Door Width: 31" (787 mm)
Maximum Weight: 117 lbs. (53 kg)
Ship Via: Can Ship UPS
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
SRPPH07CH CRL Polished Chrome Top or Bottom Mount Senior Prima Pivot Hinge with Attached U-Clamp
SRPPH070RB CRL Oil Rubbed Bronze Top or Bottom Mount Senior Prima Pivot Hinge with Attached U-Clamp
SRPPH07BBRZ CRL Brushed Bronze Top or Bottom Mount Senior Prima Pivot Hinge with Attached U-Clamp
SRPPH07BN CRL Brushed Nickel Top or Bottom Mount Senior Prima Pivot Hinge with Attached U-Clamp
SRPPH07PN CRL Polished Nickel Top or Bottom Mount Senior Prima Pivot Hinge with Attached U-Clamp
SRPPH07SC CRL Satin Chrome Top or Bottom Mount Senior Prima Pivot Hinge with Attached U-Clamp
SRPPH07CH CRL Polished Chrome Top or Bottom Mount Senior Prima Pivot Hinge with Attached U-Clamp
SRPPH070RB CRL Oil Rubbed Bronze Top or Bottom Mount Senior Prima Pivot Hinge with Attached U-Clamp
SRPPH07BBRZ CRL Brushed Bronze Top or Bottom Mount Senior Prima Pivot Hinge with Attached U-Clamp
SRPPH07BN CRL Brushed Nickel Top or Bottom Mount Senior Prima Pivot Hinge with Attached U-Clamp
SRPPH07PN CRL Polished Nickel Top or Bottom Mount Senior Prima Pivot Hinge with Attached U-Clamp
SRPPH07SC CRL Satin Chrome Top or Bottom Mount Senior Prima Pivot Hinge with Attached U-Clamp
SENIOR PRIMA: Using two hinges with 1/2" (12 mm) tempered safety glass, the hinge will hold up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm).
JUNIOR PRIMA: Using two hinges with 1/4" (6 mm) tempered safety glass, the hinge will hold up to 117 lbs. (53 kg) with a maximum door width of 31" (787 mm).
SPECIFICATIONS:
Glass Thickness:
Senior Prima 1/2" (12 mm) Tempered Safety Glass
Junior Prima 1/4" (6 mm) Tempered Safety Glass
Special Feature: Top and Bottom Mount allows more glass exposure. Can also save on glass fabrication costs when compared to use of Side Mount Glass-to-Glass Hinges requiring more cut-outs.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Senior and Junior Prima Hinges are patented (Patent No. 5,297,313)
Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.
JUNIOR PRIMA: Using two hinges with 1/4" (6 mm) tempered safety glass, the hinge will hold up to 117 lbs. (53 kg) with a maximum door width of 31" (787 mm).
SPECIFICATIONS:
Glass Thickness:
Senior Prima 1/2" (12 mm) Tempered Safety Glass
Junior Prima 1/4" (6 mm) Tempered Safety Glass
Special Feature: Top and Bottom Mount allows more glass exposure. Can also save on glass fabrication costs when compared to use of Side Mount Glass-to-Glass Hinges requiring more cut-outs.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Senior and Junior Prima Hinges are patented (Patent No. 5,297,313)
Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.
