CRL Sofia Series Interior Door Hinge Kit - PTHK1

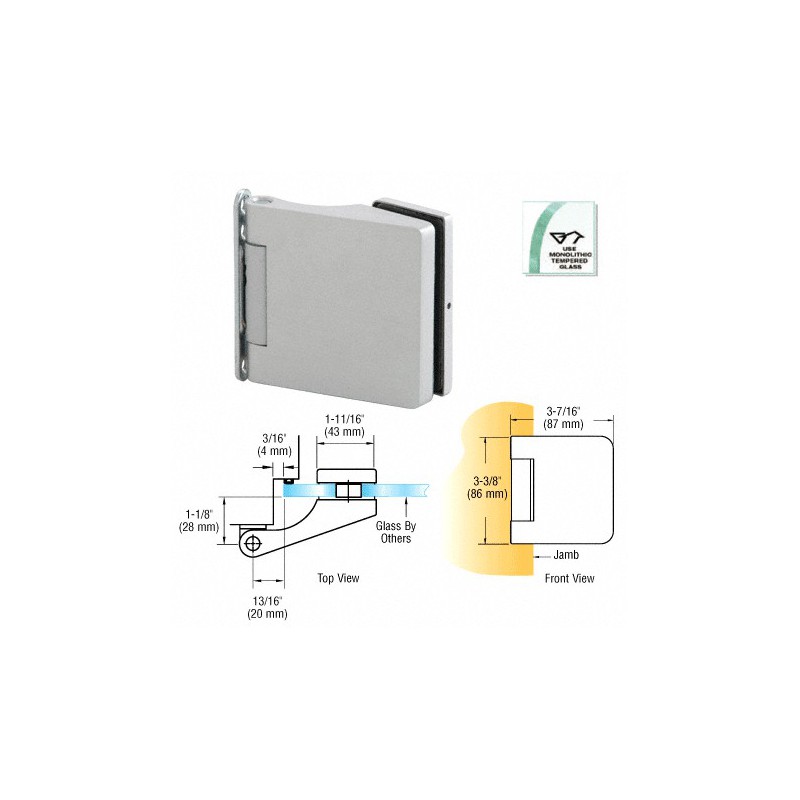

CRL Sofia Interior Door Hinge Kit is of solid aluminum construction with integrated surface mount brackets that can swing open to 180 degrees. The Sofia Kits can accommodate a maximum weight of 99 pounds (45 kg) and a width of 39" (990 mm) per pair of hinges. Only two holes required in glass for each hinge. Includes: Two sofia hinges and gaskets for 5/16" or 3/8" (8 or 10 mm) tempered glass.
Solid Aluminum Construction
Satin Anodized Finish
For 5/16" or 3/8" (8 or 10 mm) Tempered Glass
Solid Aluminum Construction
Satin Anodized Finish
For 5/16" or 3/8" (8 or 10 mm) Tempered Glass
Catalog Number: PTHK1
Also Available in These Catalogs:
CRL14D Door and Entrance Catalog, PAGE 150D
OP15 Office Partitions, PAGE 168X
CRL93A Architectural Hardware, PAGE CH145
Ship Via: Can Ship UPS
Also Available in These Catalogs:
CRL14D Door and Entrance Catalog, PAGE 150D
OP15 Office Partitions, PAGE 168X
CRL93A Architectural Hardware, PAGE CH145
Ship Via: Can Ship UPS
CATALOG NUMBER DESCRIPTION
PTHK1 CRL Sofia Series Interior Door Hinge Kit
PTHK1 CRL Sofia Series Interior Door Hinge Kit
No additional product information available at this time.
