CRL Satin Anodized SSR Bottom Rolling Sliding Door System XOX - SSR3DSA

Finish: SATIN ANODIZED
The CRL SSR Bottom Rolling Sliding Door System with 4" (102 mm) Tapered Rails utilizes our popular Wedge-Lock® Glass Securing System found in the DR4T Series Door Rails on all sliding panels. They can be ordered with or without locks in the bottom rail.
With 4" Tapered DR4T Series Door Rails and 4" Tapered SR4T Series Sidelite Bottom Rails
Available in Seven Architectural Finishes
Catalog Number: SSR3DSA
Also Available in These Catalogs:
USAL14 U.S. Aluminum Architectural Design Manual, PAGE 29G1
USAL15 U.S. Aluminum Curtain Wall Catalog, PAGE 29P1
CRL63A Architectural Hardware Master, PAGE 334H
CRL14D Door and Entrance Catalog, PAGE 392D
Color: Satin Anodized
Door Configuration: XOX
Panels: O = Fixed, X = Sliding
Ship Via: No UPS - Common Carrier Only
CATALOG NUMBER DESCRIPTION COLOR
SSR3DBL CRL Black Powder Coat SSR Bottom Rolling Sliding Door System XOX
SSR3DBS CRL Brushed Stainless Steel SSR Bottom Rolling Sliding Door System XOX
SSR3DDU CRL Black Bronze Anodized SSR Bottom Rolling Sliding Door System XOX
SSR3DPB CRL Polished Brass SSR Bottom Rolling Sliding Door System XOX
SSR3DPS CRL Polished Stainless Steel SSR Bottom Rolling Sliding Door System XOX
SSR3DSA CRL Satin Anodized SSR Bottom Rolling Sliding Door System XOX
SSR3DSB CRL Satin Brass SSR Bottom Rolling Sliding Door System XOX

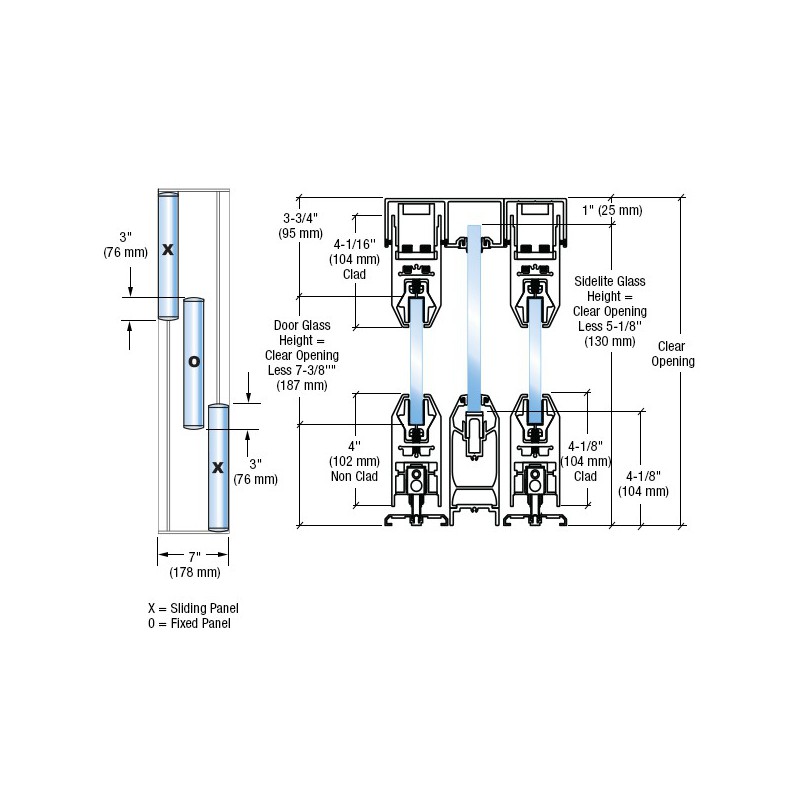

The fixed panels utilize our popular SR4T Series Sidelite Rails with roll-in vinyl at the bottom of the panel, and an integrated glazing channel with roll-in vinyl in the top track. Maximum door width is 48" (1.22 m); maximum door height is 108" (2.74 m), with a maximum weight not to exceed 234 pounds (106 kg). All panels are custom fabricated to your specifications.
