CRL Brushed Stainless Steel SSR Bottom Rolling Sliding Door System OXXO - SSR4FBS

Finish: BRUSHED STAINLESS
The CRL SSR Bottom Rolling Sliding Door System with 4" (102 mm) Tapered Rails utilizes our popular Wedge-Lock® Glass Securing System found in the DR4T Series Door Rails on all sliding panels. They can be ordered with or without locks in the bottom rail.
With 4" Tapered DR4T Series Door Rails and 4" Tapered SR4T Series Sidelite Bottom Rails
Available in Seven Architectural Finishes
Catalog Number: SSR4FBS
Also Available in These Catalogs:
USAL14 U.S. Aluminum Architectural Design Manual, PAGE 29G1
USAL15 U.S. Aluminum Curtain Wall Catalog, PAGE 29P1
CRL63A Architectural Hardware Master, PAGE 334H
CRL14D Door and Entrance Catalog, PAGE 392D
Color: Brushed Stainless
Door Configuration: OXXO
Panels : O = Fixed, X = Sliding
Ship Via: No UPS - Common Carrier Only
CATALOG NUMBER DESCRIPTION COLOR
SSR4FBL CRL Black Powder Coat SSR Bottom Rolling Sliding Door System OXXO
SSR4FBS CRL Brushed Stainless Steel SSR Bottom Rolling Sliding Door System OXXO
SSR4FDU CRL Black Bronze Anodized SSR Bottom Rolling Sliding Door System OXXO
SSR4FPB CRL Polished Brass SSR Bottom Rolling Sliding Door System OXXO
SSR4FPS CRL Polished Stainless Steel SSR Bottom Rolling Sliding Door System OXXO
SSR4FSA CRL Satin Anodized SSR Bottom Rolling Sliding Door System OXXO
SSR4FSB CRL Satin Brass SSR Bottom Rolling Sliding Door System OXXO

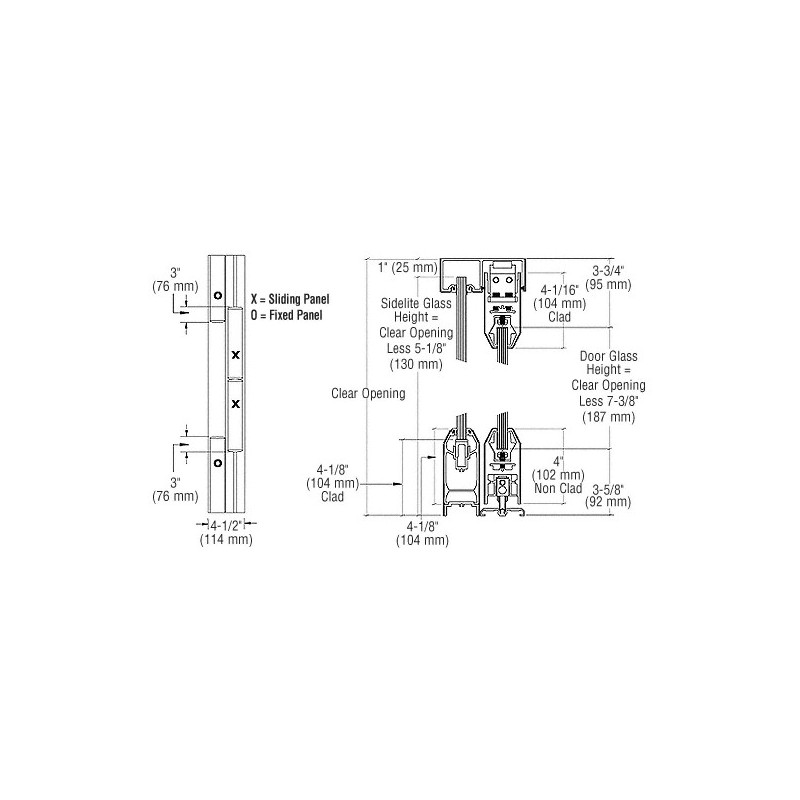

The fixed panels utilize our popular SR4T Series Sidelite Rails with roll-in vinyl at the bottom of the panel, and an integrated glazing channel with roll-in vinyl in the top track. Maximum door width is 48" (1.22 m); maximum door height is 108" (2.74 m), with a maximum weight not to exceed 234 pounds (106 kg). All panels are custom fabricated to your specifications.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting Glass Experts customer service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
