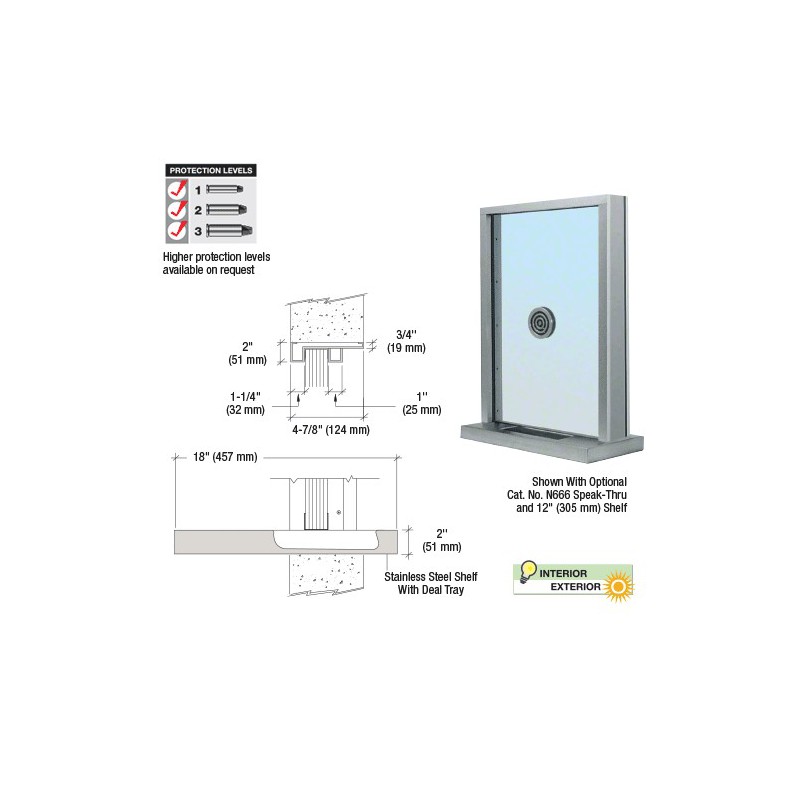

CRL Brushed Stainless Steel Frame Exterior Glazed Exchange Window with 18" Shelf and Deal Tray - S1EW18S
Catalog Number: S1EW18S
Also Available in These Catalogs:
CRL53R Glass & Glazing Catalog, PAGE 636G
TH18 Transaction and Security Hardware Catalog, PAGE T466
Shelf Size: 18" (457 mm)
Ship Via: No UPS - Common Carrier Only
Also Available in These Catalogs:
CRL53R Glass & Glazing Catalog, PAGE 636G
TH18 Transaction and Security Hardware Catalog, PAGE T466
Shelf Size: 18" (457 mm)
Ship Via: No UPS - Common Carrier Only
CATALOG NUMBER DESCRIPTION
S1EW18S CRL Brushed Stainless Steel Frame Exterior Glazed Exchange Window with 18" Shelf and Deal Tray
S1EW18S CRL Brushed Stainless Steel Frame Exterior Glazed Exchange Window with 18" Shelf and Deal Tray
NOTE: An overhang is recommended for exterior applications. Customer specifies overall width and height when ordering.
For us to fabricate this window for you, we need width and height of the intended frame, and for you to select from these options:
SPECIFICATIONS:
Materials: Frame - Type 304, 11 Gauge Stainless Steel; Glazing - 1/4" (6 mm) Glass; 1-3/16" (30 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard; 1-3/8" (35 mm) Level 2 Glass; 1-3/8" (35 mm) Level 2 Acrylic with Abrasion Resistant Coating; 1" (25 mm) Level 2 Lexgard; 1-11/16" (43 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard.
Finishes: Frame - Brushed Stainless Steel #4 Finish; Shelf - Brushed Stainless Steel #4 Finish
Deal Tray: Level 1 or Level 3 Protection. Weather Flap/Drain Hole Options Available.
Speak-Thru Options: Bullet Resistant and Non-Bullet Resistant Models Available
Shelf Options: Stainless Steel Shelf with Deal Tray and Formica Shelf with Deal Tray
For additional specifications and installation data, contact CRL Technical Sales Department.
For us to fabricate this window for you, we need width and height of the intended frame, and for you to select from these options:
SPECIFICATIONS:
Materials: Frame - Type 304, 11 Gauge Stainless Steel; Glazing - 1/4" (6 mm) Glass; 1-3/16" (30 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard; 1-3/8" (35 mm) Level 2 Glass; 1-3/8" (35 mm) Level 2 Acrylic with Abrasion Resistant Coating; 1" (25 mm) Level 2 Lexgard; 1-11/16" (43 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard.
Finishes: Frame - Brushed Stainless Steel #4 Finish; Shelf - Brushed Stainless Steel #4 Finish
Deal Tray: Level 1 or Level 3 Protection. Weather Flap/Drain Hole Options Available.
Speak-Thru Options: Bullet Resistant and Non-Bullet Resistant Models Available
Shelf Options: Stainless Steel Shelf with Deal Tray and Formica Shelf with Deal Tray
For additional specifications and installation data, contact CRL Technical Sales Department.
