CRL Polished Stainless Steel Swivel Combination Fastener for 1/2" to 1-1/16" Glass - HSF14PS

Finish: POLISHED STAINLESS
$78.02
Quantity

The head of the CRL Swivel Glass Attachment can tilt up to 6 degrees in any direction on its ball and socket joint. This allows for any stress applied to the glass to be more evenly distributed across the entire panel of glass rather than concentrating at the hole. These are typically used in conditions where the glass will be subject to live loads.
Designed for the 'All-Glass' Look
For Use with 1/2" to 1-1/16" (12 to 27 mm) Tempered Glass
Made of 316 Alloy Stainless Steel
Available in Polished and Brushed Stainless Finishes
Use with Tempered Monolithic or Tempered Laminated Glass
Ionoplast Interlayer recommended for Laminated Glass
Catalog Number: HSF14PS
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 502Z
CRL63A Architectural Hardware Master, PAGE 549H
CRL93A Architectural Hardware, PAGE CH296
AM09 Architectural Metals 2009, PAGE M185
Color: Polished Stainless
Ship Via: Can Ship UPS
Shipping Weight: 1 lb (454g)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
HSF14BS CRL Brushed Stainless Steel Swivel Combination Fastener for 1/2" to 1-1/16" Glass
HSF14PS CRL Polished Stainless Steel Swivel Combination Fastener for 1/2" to 1-1/16" Glass

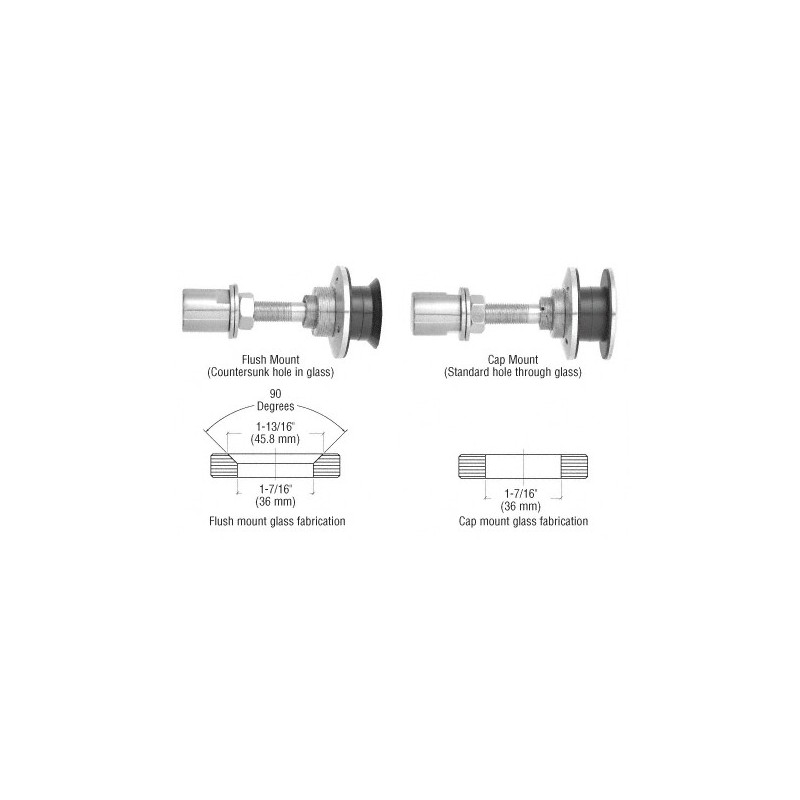

The Swivel Head Fitting also employs our special Combination Glass Attachment design so it can be used for 'flush' mounting for a smooth exterior surface when the glass is fabricated with a countersunk hole. This same Fitting can be used for the 'cap' type of mounting when using the supplied adaptor washer. This requires just a standard hole in the glass.
NOTE: We suggest when using the flush mount method that you give your glass fabricator a sample Flush Mount Glass Attachment to ensure a proper flush fit.
