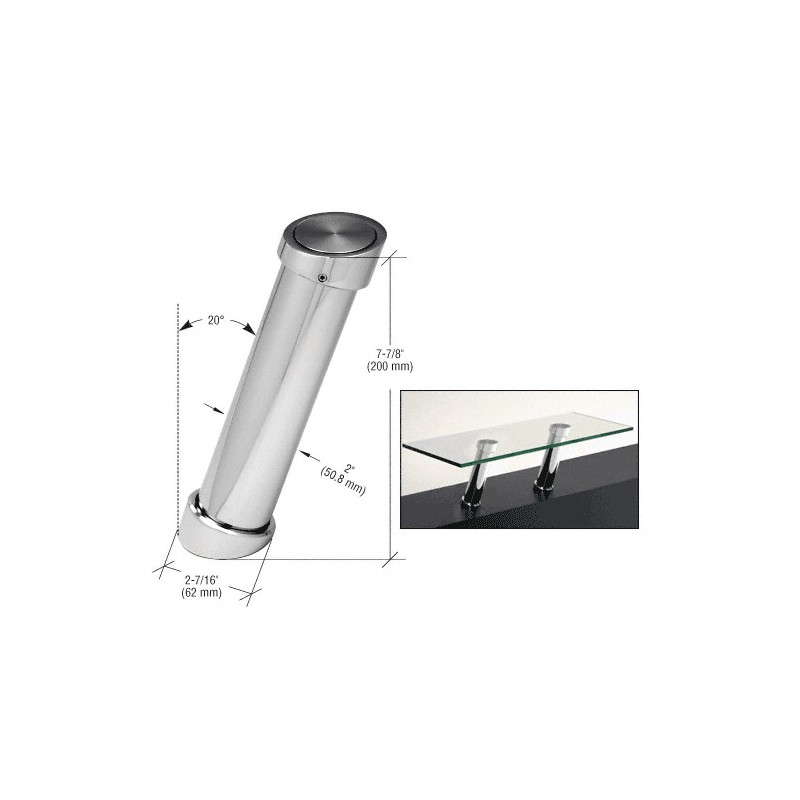

CRL Chrome 7-7/8" UV Bonded Angled Countertop Support - UV0135

Catalog Number: UV0135
Also Available in These Catalogs:
SC18 Standoff and Clamp Hardware, PAGE 31SC
CRL53R Glass & Glazing Catalog, PAGE 450G
CRL03 Sealants, Adhesives, and Fasteners, PAGE N441
Color: Chrome
Ship Via: Can Ship UPS
CATALOG NUMBER DESCRIPTION COLOR
UV0135 CRL Chrome 7-7/8" UV Bonded Angled Countertop Support
UV0136 CRL Satin Chrome 7-7/8" UV Bonded Angled Countertop Support
UV0137 CRL Satin Nickel 7-7/8" UV Bonded Angled Countertop Support
Three popular finishes are available, and simple-to-follow instructions are provided for easy installation. The Supports are designed to allow precise final height adjustments to compensate for slightly uneven surfaces. Lower counter mounting bolts are included with each Support. A finely machined disk for UV bonding provides the perfect surface for strong contact to glass using Cat. No. UV682 UV Bonding Adhesive.
NOTE: Maximum recommended span between Supports is 23-1/2" (600 mm). Maximum overhang from post center is 7-7/8" (200 mm). Maximum load capacity is 33 lbs. (15 kg) per Support.
