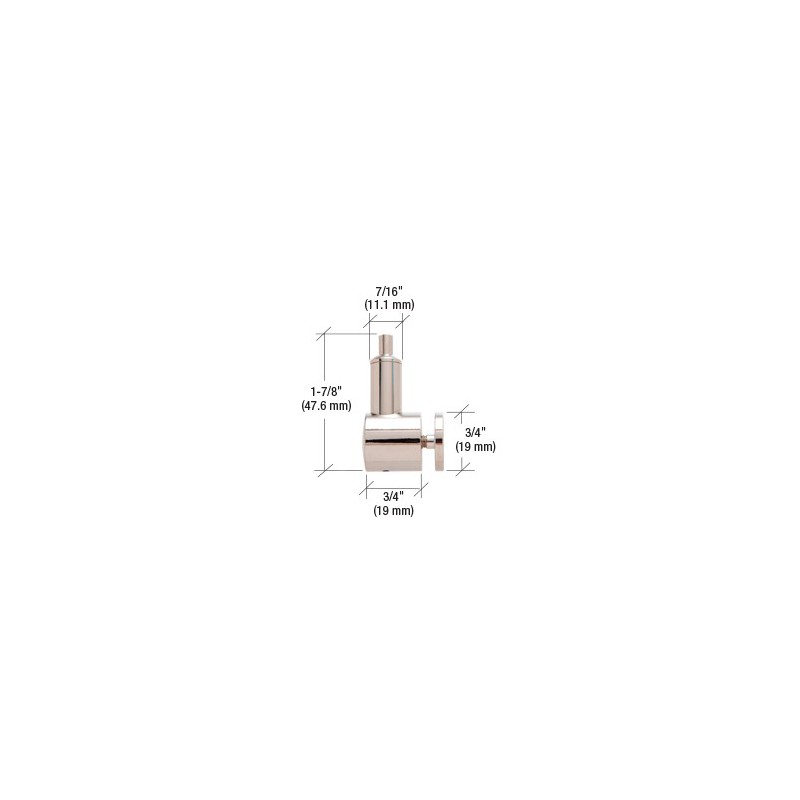

CRL Vertical Panel Connector - Y04CR

CRL's Vertical Panel Connectors are the ideal product for hanging 1/4" to 3/8" (6 to 10 mm) mirrors or glass panels in a high moisture environment where clamping on the edges of the glass is not the most secure method. The Panel Connectors are also the choice when Cables are designed to be installed behind the panel. Glass or panel fabrication requires a minimum 1/4" (6 mm) diameter hole, and can require a 3/8" (10 mm) diameter hole for 3/8" (10 mm) thick tempered glass. Each Panel Connector has a maximum weight capacity of 20 lbs. (9 kg) for 1/4" to 5/16" (6 to 8 mm) panels, and 10 lbs. (4.5 kg) for 3/8" (10 mm) panels.
Hang Vertical Panels Safely and Securely
Requires Drilled Hole in Glass or Panel
Component to CRL's Cable System for 1/4" to 3/8" (6 to 10 mm) Glass
Catalog Number: Y04CR
Also Available in These Catalogs:
CRL53R Glass & Glazing Catalog, PAGE 310G
SC18 Standoff and Clamp Hardware, PAGE 63SC
Ship Via: Can Ship UPS
Shipping Weight: 4 oz (113g)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION
Y04CR CRL Vertical Panel Connector
No additional product information available at this time.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting Glass Experts customer service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
