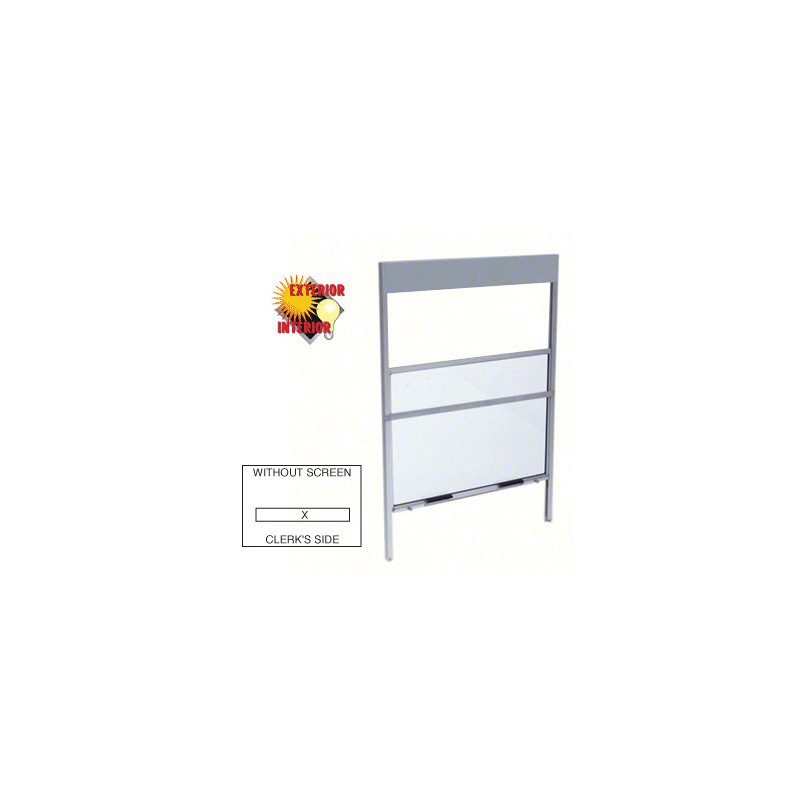

CRL Satin Anodized Vertical Sliding Service Window With Sash Balances for Surface or Pocket Installation with 1/4" Glass - No Screen - SWB1414A
These CRL Vertical Sliding Service Windows are designed for surface mount or pocket installation. They feature a lower opening panel that slides up into the empty upper frame. Select models are pre-glazed with 1/4" (6 mm) tempered glass (sliding panel only) or may also be ordered supplied only with vinyl to accommodate 1/4" (6 mm) thick glazing materials. Slide lock and Pin Lock options available. All windows are shipped assembled, ready for glazing and installation. Maximum width is 36" (91mm).
For Light Duty Applications of 50 or Fewer Uses Per Day
For Windows Exceeding 1050 Square Inches (Width x Height)
Available Pre-Glazed or Non-Glazed
Drawings and Specifications are Available
For Light Duty Applications of 50 or Fewer Uses Per Day
For Windows Exceeding 1050 Square Inches (Width x Height)
Available Pre-Glazed or Non-Glazed
Drawings and Specifications are Available
Catalog Number: SWB1414A
Also Available in These Catalogs:
CRL53R Glass & Glazing Catalog, PAGE 621G
TH18 Transaction and Security Hardware Catalog, PAGE T425
Color: Satin Anodized
Glazing: Pocket 1/4" (6 mm) Glass
Screen: No
One Panel Only : X = Sliding
Ship Via: No UPS - Common Carrier Only
Also Available in These Catalogs:
CRL53R Glass & Glazing Catalog, PAGE 621G
TH18 Transaction and Security Hardware Catalog, PAGE T425
Color: Satin Anodized
Glazing: Pocket 1/4" (6 mm) Glass
Screen: No
One Panel Only : X = Sliding
Ship Via: No UPS - Common Carrier Only
CATALOG NUMBER DESCRIPTION COLOR
SWB1414A CRL Satin Anodized Vertical Sliding Service Window With Sash Balances for Surface or Pocket Installation with 1/4" Glass - No Screen
SWB1414DU CRL Duranodic Bronze Vertical Sliding Service Window With Sash Balances for Surface or Pocket Installation with 1/4" Glass - No Screen
SWB1414P CRL Custom Powder Painted Vertical Sliding Service Window With Sash Balances for Surface or Pocket Installation with 1/4" Glass - No Screen
SWB1414K CRL Custom KYNAR Painted Vertical Sliding Service Window With Sash Balances for Surface or Pocket Installation with 1/4" Glass - No Screen
SWB1414A CRL Satin Anodized Vertical Sliding Service Window With Sash Balances for Surface or Pocket Installation with 1/4" Glass - No Screen
SWB1414DU CRL Duranodic Bronze Vertical Sliding Service Window With Sash Balances for Surface or Pocket Installation with 1/4" Glass - No Screen
SWB1414P CRL Custom Powder Painted Vertical Sliding Service Window With Sash Balances for Surface or Pocket Installation with 1/4" Glass - No Screen
SWB1414K CRL Custom KYNAR Painted Vertical Sliding Service Window With Sash Balances for Surface or Pocket Installation with 1/4" Glass - No Screen
NOTE: Windows exceeding 1050 square inches (width x height) will require a covered top to conceal sash balances. For pocket installations an opening equal to the overall size of the sliding panel is required above the opening. An overhang or awning is recommended if used in an exterior application.
SPECIFICATIONS:
Materials: Extruded Aluminum
Finishes: Satin Anodized, Duranodic Bronze, RAL Powder Painted or KYNAR Painted
Glazing: Pocket 1/4" (6 mm) Vinyl Only
Installation Instructions Included
Weight: Custom so weight varies
For quotation contact transaction@crlaurence.com 1-800-421-6144 ext 17760 or click the REQUEST A QUOTE link.
SPECIFICATIONS:
Materials: Extruded Aluminum
Finishes: Satin Anodized, Duranodic Bronze, RAL Powder Painted or KYNAR Painted
Glazing: Pocket 1/4" (6 mm) Vinyl Only
Installation Instructions Included
Weight: Custom so weight varies
For quotation contact transaction@crlaurence.com 1-800-421-6144 ext 17760 or click the REQUEST A QUOTE link.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting Glass Experts customer service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Specific References
