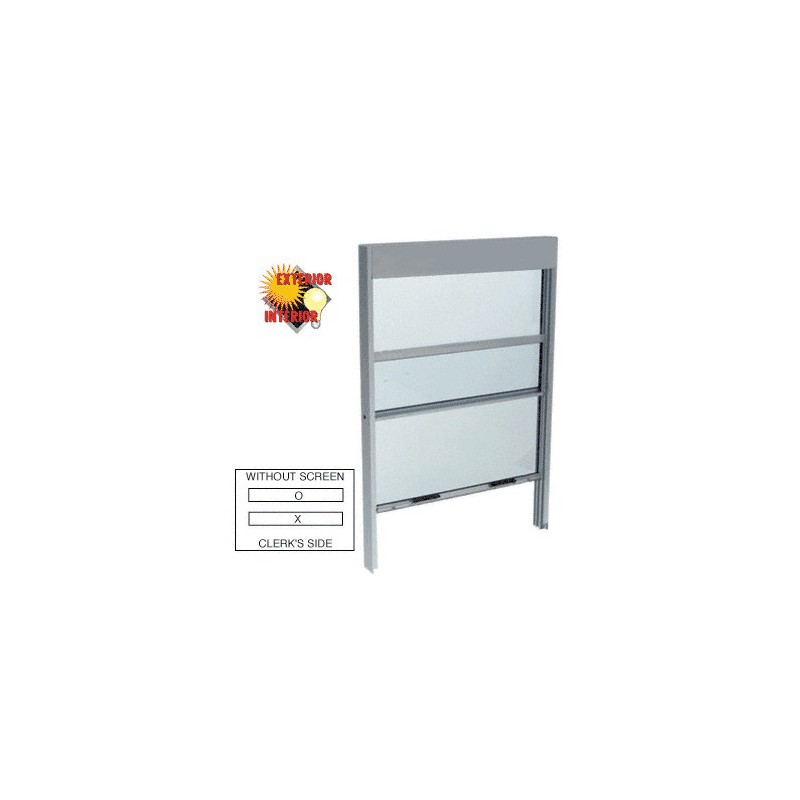

This CRL "SW" Series Sliding Service Window is available for interior or exterior applications, with a variety of formats and options to choose from. Uses include walk-up food service, receptionist or pharmacy windows. Vertical Windows include nylon runners over coiled tension springs to provide smooth operation. Horizontal Windows operate with top nylon guides. For larger windows, a full bottom track with rollers is recommended.
For Light Duty Applications of 50 or Fewer Uses Per Day
For Windows Exceeding 1050 Square Inches (Width x Height)
Available Pre-Glazed or Non-Glazed
Available in Vertical and Horizontal Formats
Each Unit is Customized to Fit Your Needs
For Light Duty Applications of 50 or Fewer Uses Per Day
For Windows Exceeding 1050 Square Inches (Width x Height)
Available Pre-Glazed or Non-Glazed
Available in Vertical and Horizontal Formats
Each Unit is Customized to Fit Your Needs
Catalog Number: SWB1014A
Also Available in These Catalogs:
CRL53R Glass & Glazing Catalog, PAGE 621G
TH18 Transaction and Security Hardware Catalog, PAGE T425
Color: Satin Anodized
Glazing: 1/4" (6 mm) Glass
Screen: No
Panels : O = Fixed, X = Sliding
Ship Via: No UPS - Common Carrier Only
Also Available in These Catalogs:
CRL53R Glass & Glazing Catalog, PAGE 621G
TH18 Transaction and Security Hardware Catalog, PAGE T425
Color: Satin Anodized
Glazing: 1/4" (6 mm) Glass
Screen: No
Panels : O = Fixed, X = Sliding
Ship Via: No UPS - Common Carrier Only
CATALOG NUMBER DESCRIPTION COLOR
SWB1014A CRL Satin Anodized Vertical Sliding Service Windows with Sash Balances and 1/4" Glass - No Screen
SWB1014DU CRL Duranodic Bronze Vertical Sliding Service Windows with Sash Balances and 1/4" Glass - No Screen
SWB1014P CRL Custom Powder Painted Vertical Sliding Service Windows with Sash Balances and 1/4" Glass - No Screen
SWB1014K CRL Custom KYNAR Painted Vertical Sliding Service Windows with Sash Balances and 1/4" Glass - No Screen
SWB1014A CRL Satin Anodized Vertical Sliding Service Windows with Sash Balances and 1/4" Glass - No Screen
SWB1014DU CRL Duranodic Bronze Vertical Sliding Service Windows with Sash Balances and 1/4" Glass - No Screen
SWB1014P CRL Custom Powder Painted Vertical Sliding Service Windows with Sash Balances and 1/4" Glass - No Screen
SWB1014K CRL Custom KYNAR Painted Vertical Sliding Service Windows with Sash Balances and 1/4" Glass - No Screen
All larger Vertical Format Service Windows which exceed 1050 square inches (width x height) require Sash Balances. They are concealed behind a 4-5/8" (117 mm) tall header. An overhang is recommended if used in an exterior application.
NOTE: Specify handling when ordering; left or right hand fixed from clerks side. Surround frame not available for insulating glass models. If ordered with keyed lock the screen panel will be installed in center channel.
SPECIFICATIONS:
Materials: Extruded Aluminum; Tempered Safety Glass (On Some Models); Fiberglass Screen (On Some Models)
Finishes: Satin Anodized, Duranodic Bronze, RAL Powder Painted or Kynar Painted. Painted units ship glazed only.
Glazing: 1/4" (6 mm) Glass
Installation Instructions Included
NOTE: Specify handling when ordering; left or right hand fixed from clerks side. Surround frame not available for insulating glass models. If ordered with keyed lock the screen panel will be installed in center channel.
SPECIFICATIONS:
Materials: Extruded Aluminum; Tempered Safety Glass (On Some Models); Fiberglass Screen (On Some Models)
Finishes: Satin Anodized, Duranodic Bronze, RAL Powder Painted or Kynar Painted. Painted units ship glazed only.
Glazing: 1/4" (6 mm) Glass
Installation Instructions Included
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting Glass Experts customer service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
