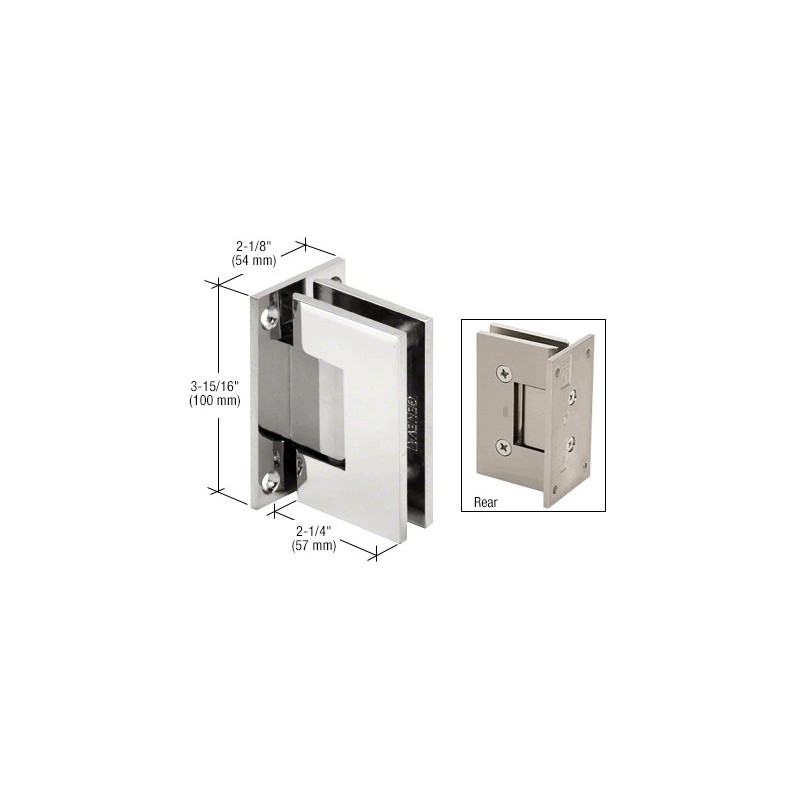

CRL Chrome Wall Mount Positive Close Vienna Hinge - V1E067CH
The Positive Close Vienna Hinge contains an internal grooved pivot pin that allows the door a precise and positive closing action. This is a different closing action than the typical self-centering Vienna Hinges. Stocked in our four most popular finishes, and available in other finishes upon special order.
Special Grooved Internal Pivot Pin Allows Positive and Precise Closing Action
Stocked in Wall Mount and 180 Degree Glass-to-Glass Models
Stocked in Four Most Popular Finishes
Other Finishes Available Upon Special Order
Use Monolithic Tempered Glass
Special Grooved Internal Pivot Pin Allows Positive and Precise Closing Action
Stocked in Wall Mount and 180 Degree Glass-to-Glass Models
Stocked in Four Most Popular Finishes
Other Finishes Available Upon Special Order
Use Monolithic Tempered Glass
Catalog Number: V1E067CH
Also Available in These Catalogs:
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 155J
CRL93A Shower Door, PAGE SD026
Color: Chrome
Height: 3-15/16" (100 mm)
Width: 2-1/4" (57 mm)
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Minimum Order: 1 Each
Also Available in These Catalogs:
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 155J
CRL93A Shower Door, PAGE SD026
Color: Chrome
Height: 3-15/16" (100 mm)
Width: 2-1/4" (57 mm)
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
V1E067CH CRL Chrome Wall Mount Positive Close Vienna Hinge
V1E0670RB CRL Oil Rubbed Bronze Wall Mount Positive Close Vienna Hinge
V1E067BN CRL Brushed Nickel Wall Mount Positive Close Vienna Hinge
V1E067CH CRL Chrome Wall Mount Positive Close Vienna Hinge
V1E0670RB CRL Oil Rubbed Bronze Wall Mount Positive Close Vienna Hinge
V1E067BN CRL Brushed Nickel Wall Mount Positive Close Vienna Hinge
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 Degrees Inwards and Outwards
Closing Type: Positive Closing to Zero Degrees
Cut-Out Required
Includes: Gaskets, Phillips Screws, Allen Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact CRL Technical Sales Shower Door Department.
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 Degrees Inwards and Outwards
Closing Type: Positive Closing to Zero Degrees
Cut-Out Required
Includes: Gaskets, Phillips Screws, Allen Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact CRL Technical Sales Shower Door Department.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting Glass Experts customer service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
