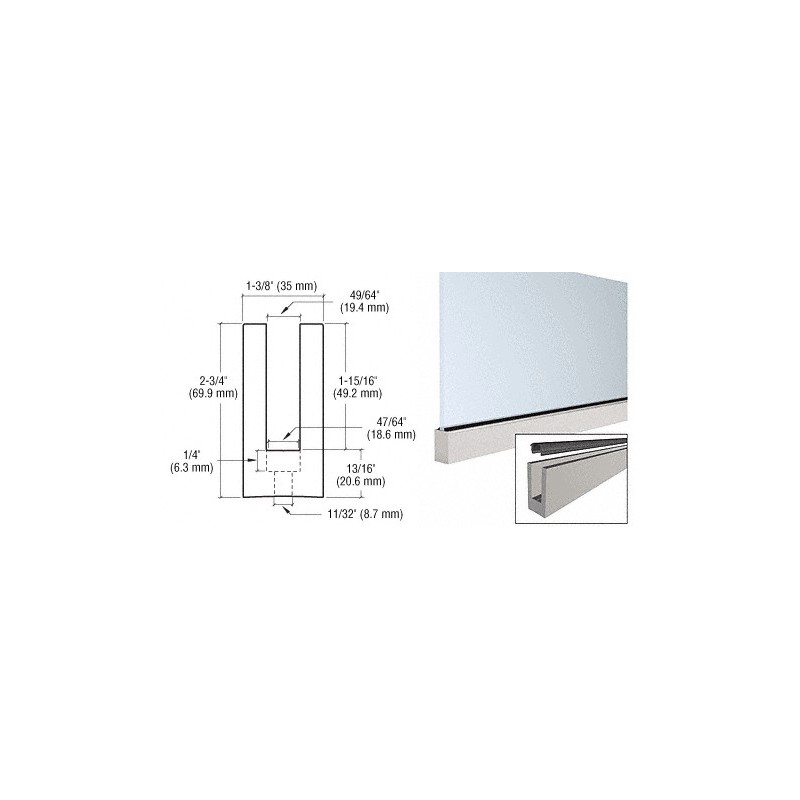

CRL Mill Aluminum 120" Small Profile Windscreen Base Shoe for 3/8" or 1/2" Glass - With Drilled Holes - W5B10D
CRL Standard Small Profile Windscreen Base Shoe for 3/8" or 1/2" (10 or 12 mm) tempered glass is typically used as the base channel for windscreens and privacy partitions. It is not recommended for Hand Rail/Guard Rail applications. Most standard glass windscreen applications use 3/8" (10 mm) monolithic tempered glass. Each glass panel is secured in the base shoe using CRL's Patented Dry Glazed TAPER-LOC® System. NOTE: If 1/2" (12 mm) glass is required, use CRL's Wet Glaze Method.
For 3/8" to 1/2" (10 to 12 mm) Monolithic Tempered Glass
Available Pre-Drilled in 10 and 20 Foot Lengths
Available in Drilled and Counter Bored, or We Will Custom Drill to Your Specifications
6063 Alloy, T52 Temper
For 3/8" to 1/2" (10 to 12 mm) Monolithic Tempered Glass
Available Pre-Drilled in 10 and 20 Foot Lengths
Available in Drilled and Counter Bored, or We Will Custom Drill to Your Specifications
6063 Alloy, T52 Temper
Catalog Number: W5B10D
Also Available in These Catalogs:
HR18 Architectural Railing Systems 2018, PAGE 470B
CRL63R Architectural Railing Systems, PAGE 472R
CRL53R Glass & Glazing Catalog, PAGE 586G
CRL93A Architectural Railings, PAGE HR229
Stock Length: 120" (3.05 m)
Hole Size: 11/32" (9 mm)
Counter Bore x Depth
Center-to-Center: 47/64" x 1/4" (19 x 6 mm)
12" (305 mm)
Ship Via: No UPS - Common Carrier Only
Shipping Weight: 28 lb (12.7kg)
Minimum Order: 1 Each
Also Available in These Catalogs:
HR18 Architectural Railing Systems 2018, PAGE 470B
CRL63R Architectural Railing Systems, PAGE 472R
CRL53R Glass & Glazing Catalog, PAGE 586G
CRL93A Architectural Railings, PAGE HR229
Stock Length: 120" (3.05 m)
Hole Size: 11/32" (9 mm)
Counter Bore x Depth
Center-to-Center: 47/64" x 1/4" (19 x 6 mm)
12" (305 mm)
Ship Via: No UPS - Common Carrier Only
Shipping Weight: 28 lb (12.7kg)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION
W5B10 CRL Mill Aluminum 120" Small Profile Windscreen Base Shoe for 3/8" or 1/2" Glass - Extrusion Only
W5B10D CRL Mill Aluminum 120" Small Profile Windscreen Base Shoe for 3/8" or 1/2" Glass - With Drilled Holes
W5B20 CRL Mill Aluminum 240" Small Profile Windscreen Base Shoe for 3/8" or 1/2" Glass - Extrusion Only
W5B20D CRL Mill Aluminum 240" Small Profile Windscreen Base Shoe for 3/8" or 1/2" Glass - with Drilled Holes
W5B10 CRL Mill Aluminum 120" Small Profile Windscreen Base Shoe for 3/8" or 1/2" Glass - Extrusion Only
W5B10D CRL Mill Aluminum 120" Small Profile Windscreen Base Shoe for 3/8" or 1/2" Glass - With Drilled Holes
W5B20 CRL Mill Aluminum 240" Small Profile Windscreen Base Shoe for 3/8" or 1/2" Glass - Extrusion Only
W5B20D CRL Mill Aluminum 240" Small Profile Windscreen Base Shoe for 3/8" or 1/2" Glass - with Drilled Holes
No additional product information available at this time.
