CRL Brushed Stainless Heavy-Duty Single Arm Wall Mount Frame Spider - FMH1BS

Finish: BRUSHED STAINLESS
$110.70
Quantity

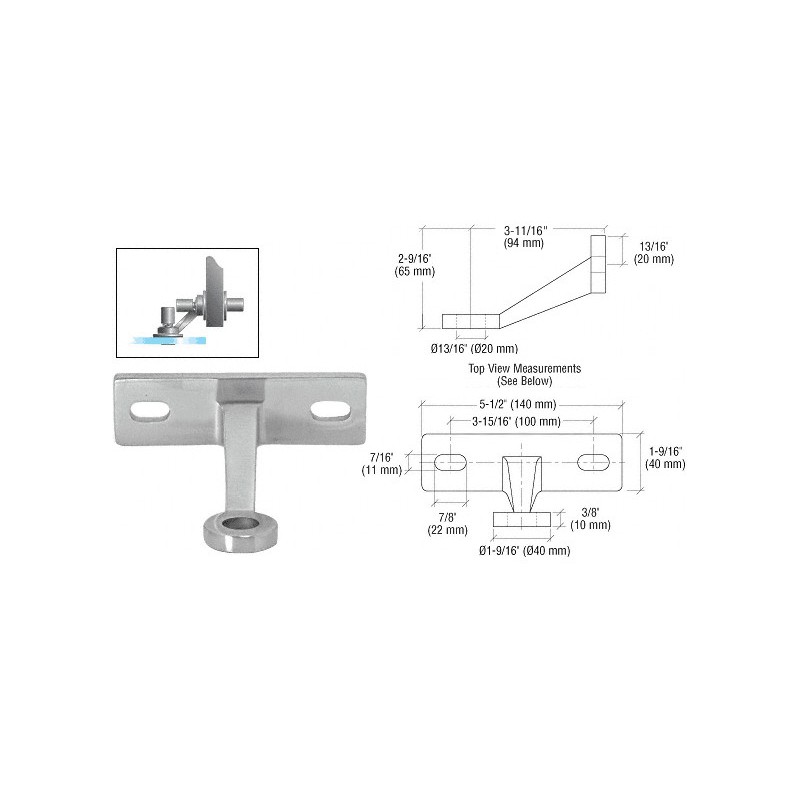

This CRL Fitting is used to attach a single glass panel to a wall or structural fin. Comes with two M10-1.5 x 65 mm (2-9/16") stainless steel threaded studs and four matching cap nuts with washers. Replacement Stud Set is available.
For Use with Glass Up to 1-1/16" (27 mm)
Complete with Hardware to Mount to Wall or Structural Fin
Glass Attachments Sold Separately
Use Monolithic Tempered Glass
Catalog Number: FMH1BS
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 505Z
CRL63A Architectural Hardware Master, PAGE 554H
CRL93A Architectural Hardware, PAGE CH299
AM09 Architectural Metals 2009, PAGE M190
Color: Brushed Stainless
Ship Via: Can Ship UPS
Shipping Weight: 3 lb (1.36kg)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
FMH1BS CRL Brushed Stainless Heavy-Duty Single Arm Wall Mount Frame Spider
FMH1PS CRL Polished Stainless Heavy-Duty Single Arm Wall Mount Frame Spider
For companion fitting use Cat. No. FMH2BS or FMH2PS Fittings.
