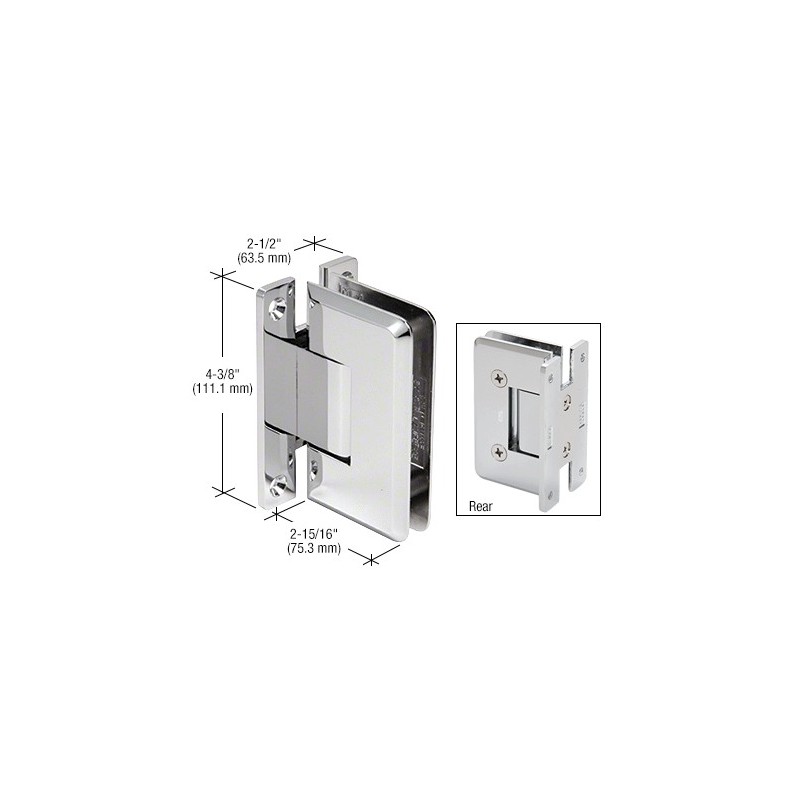

CRL Polished Chrome Wall Mount Plymouth Series Hinge - PLY037CH
Finish: POLISHED CHROME
$111.73
CRL Plymouth Series Hinges have the ability of supporting wider, heavier doors, with a maximum door weight of 140 lbs. (64 kg), and a maximum door width of 39" (1 m) using only two hinges.
An Excellent Choice for Heavier, Wider Shower Doors
Integrated Safety Interlock Enhances Glass Panel Control
Wall Mount and 180 Degree Glass-to-Glass Models Available
For Use with 3/8" to 1/2" (10 to 12 mm) Thick Tempered Glass
An Excellent Choice for Heavier, Wider Shower Doors
Integrated Safety Interlock Enhances Glass Panel Control
Wall Mount and 180 Degree Glass-to-Glass Models Available
For Use with 3/8" to 1/2" (10 to 12 mm) Thick Tempered Glass
Catalog Number: PLY037CH
Also Available in These Catalogs:
Color: Polished Chrome
Ship Via: Can Ship UPS
Minimum Order: 1 Each
Also Available in These Catalogs:
Color: Polished Chrome
Ship Via: Can Ship UPS
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
PLY037CH CRL Polished Chrome Wall Mount Plymouth Series Hinge
PLY037BR CRL Brass Wall Mount Plymouth Series Hinge
PLY0370RB CRL Oil Rubbed Bronze Wall Mount Plymouth Series Hinge
PLY037BN CRL Brushed Nickel Wall Mount Plymouth Series Hinge
PLY037MBL CRL Matte Black Wall Mount Plymouth Series Hinge
PLY037PN CRL Polished Nickel Wall Mount Plymouth Series Hinge
PLY037SC CRL Satin Chrome Wall Mount Plymouth Series Hinge
PLY037ULBR CRL Unlacquered Brass Wall Mount Plymouth Series Hinge
PLY037CH CRL Polished Chrome Wall Mount Plymouth Series Hinge
PLY037BR CRL Brass Wall Mount Plymouth Series Hinge
PLY0370RB CRL Oil Rubbed Bronze Wall Mount Plymouth Series Hinge
PLY037BN CRL Brushed Nickel Wall Mount Plymouth Series Hinge
PLY037MBL CRL Matte Black Wall Mount Plymouth Series Hinge
PLY037PN CRL Polished Nickel Wall Mount Plymouth Series Hinge
PLY037SC CRL Satin Chrome Wall Mount Plymouth Series Hinge
PLY037ULBR CRL Unlacquered Brass Wall Mount Plymouth Series Hinge
NOTE: Do not use three hinges.
This produces a frameless aesthetic by reducing the amount of hardware needed. These hinges utilize an integrated stiffening beam to minimize clamping plate flex, resulting in exceptional holding power. They also deliver increased self-centering force, and the heat-treated stainless steel springs produce enhanced durability. For use with 3/8" and 1/2" (10 and 12 mm) thick tempered glass. Stocked in six popular finishes, with custom finishes available.
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm), 39" (1 m) width, the two hinges will hold up to 140 lbs. (64 kg).
SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 Degree in and 90 Degree Out (at Factory Set Position)
Closing Type: Self-Centering when within 15 Degree of Closed Position
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
NOTE: Do not exceed either door weight or door width maximum capacities. Maximum two hinges per door. Glass fabrication is required.
This produces a frameless aesthetic by reducing the amount of hardware needed. These hinges utilize an integrated stiffening beam to minimize clamping plate flex, resulting in exceptional holding power. They also deliver increased self-centering force, and the heat-treated stainless steel springs produce enhanced durability. For use with 3/8" and 1/2" (10 and 12 mm) thick tempered glass. Stocked in six popular finishes, with custom finishes available.
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm), 39" (1 m) width, the two hinges will hold up to 140 lbs. (64 kg).
SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 Degree in and 90 Degree Out (at Factory Set Position)
Closing Type: Self-Centering when within 15 Degree of Closed Position
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
NOTE: Do not exceed either door weight or door width maximum capacities. Maximum two hinges per door. Glass fabrication is required.
