CRL Satin Brass XX Bi-Part SDR Bottom Rolling Sliding Door System - SDR21BSB

Finish: SATIN BRASS

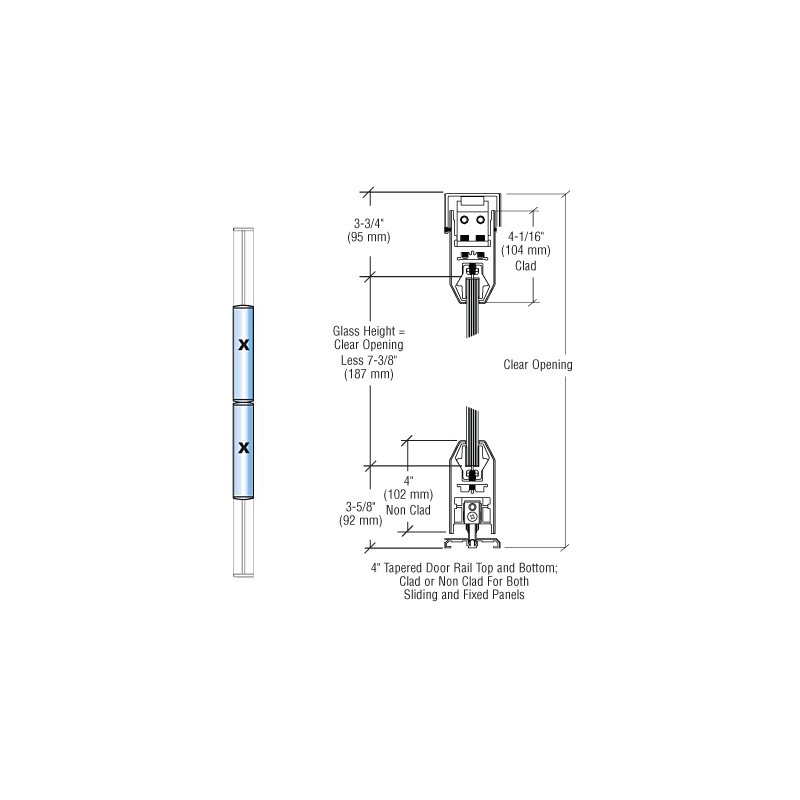

The CRL SDR Bottom Rolling Sliding Door System with 4" (102 mm) Tapered Rails Top and Bottom utilizes our popular Wedge-Lock® Glass Securing System. The DR4T Series Door Rails are used for all door and fixed panels, and are custom fabricated to your specifications. The doors can be ordered with or without locks in the bottom rail. Maximum door width is 48" (1.22 m); maximum door height is 108" (2.74 m), with a maximum weight not to exceed 234 pounds (106 kg).
With 4" Tapered DR4T Series Door Rails
Available in Seven Architectural Finishes
Catalog Number: SDR21BSB
Also Available in These Catalogs:
USAL14 U.S. Aluminum Architectural Design Manual, PAGE 28G1
USAL15 U.S. Aluminum Curtain Wall Catalog, PAGE 28P1
CRL63A Architectural Hardware Master, PAGE 331H
CRL14D Door and Entrance Catalog, PAGE 389D
Color: Satin Brass
Ship Via: No UPS - Common Carrier Only
CATALOG NUMBER DESCRIPTION COLOR
SDR21BBL CRL Black Powder Coat XX Bi-Part SDR Bottom Rolling Sliding Door System
SDR21BBS CRL Brushed Stainless XX Bi-Part SDR Bottom Rolling Sliding Door System
SDR21BDU CRL Black Bronze Anodized XX Bi-Part SDR Bottom Rolling Sliding Door System
SDR21BPB CRL Polished Brass XX Bi-Part SDR Bottom Rolling Sliding Door System
SDR21BPS CRL Polished Stainless XX Bi-Part SDR Bottom Rolling Sliding Door System
SDR21BSA CRL Satin Anodized XX Bi-Part SDR Bottom Rolling Sliding Door System
SDR21BSB CRL Satin Brass XX Bi-Part SDR Bottom Rolling Sliding Door System
No additional product information available at this time.
