CRL Black Powder Coat XXXX Format Sliding Door Entrance System - 4" Top and Bottom Tapered Rail - SDR42FBL

Finish: BLACK

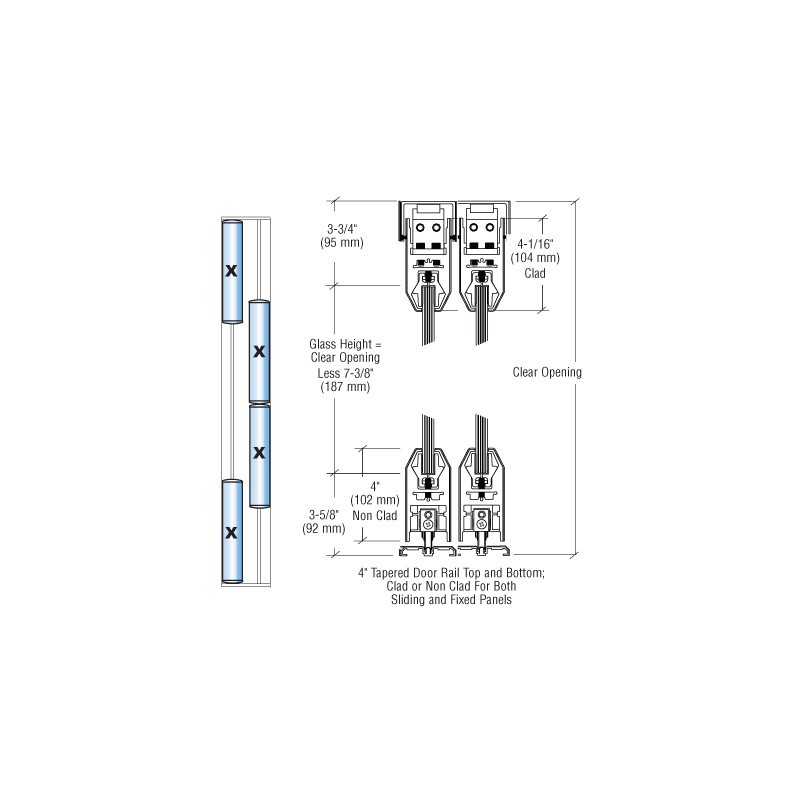

The CRL SDR Bottom Rolling Sliding Door System with 4" (102 mm) Tapered Rails Top and Bottom utilizes our popular Wedge-Lock® Glass Securing System. The DR4T Series Door Rails are used for all door and fixed panels, and are custom fabricated to your specifications. The doors can be ordered with or without locks in the bottom rail. Maximum door width is 48" (1.22 m); maximum door height is 108" (2.74 m), with a maximum weight not to exceed 234 pounds (106 kg).
With 4" Tapered DR4T Series Door Rails
Available in Seven Architectural Finishes
Catalog Number: SDR42FBL
Also Available in These Catalogs:
USAL14 U.S. Aluminum Architectural Design Manual, PAGE 28G1
USAL15 U.S. Aluminum Curtain Wall Catalog, PAGE 28P1
CRL63A Architectural Hardware Master, PAGE 331H
CRL14D Door and Entrance Catalog, PAGE 389D
Color: Black
Ship Via: No UPS - Common Carrier Only
CATALOG NUMBER DESCRIPTION COLOR
SDR42FBL CRL Black Powder Coat XXXX Format Sliding Door Entrance System - 4" Top and Bottom Tapered Rail
SDR42FBS CRL Brushed Stainless XXXX Format Sliding Door Entrance System - 4" Top and Bottom Tapered Rail
SDR42FDU CRL Black Bronze Anodized XXXX Format Sliding Door Entrance System - 4" Top and Bottom Tapered Rail
SDR42FPB CRL Polished Brass XXXX Format Sliding Door Entrance System - 4" Top and Bottom Tapered Rail
SDR42FPS CRL Polished Stainless XXXX Format Sliding Door Entrance System - 4" Top and Bottom Tapered Rail
SDR42FPT CRL Powder Painted XXXX Format Sliding Door Entrance System - 4" Top and Bottom Tapered Rail
SDR42FSA CRL Satin Anodized XXXX Format Sliding Door Entrance System - 4" Top and Bottom Tapered Rail
SDR42FSB CRL Satin Brass XXXX Format Sliding Door Entrance System - 4" Top and Bottom Tapered Rail
No additional product information available at this time.
