CRL White 240" Length Hat Channel for Fixed Glazing - HC1WH240

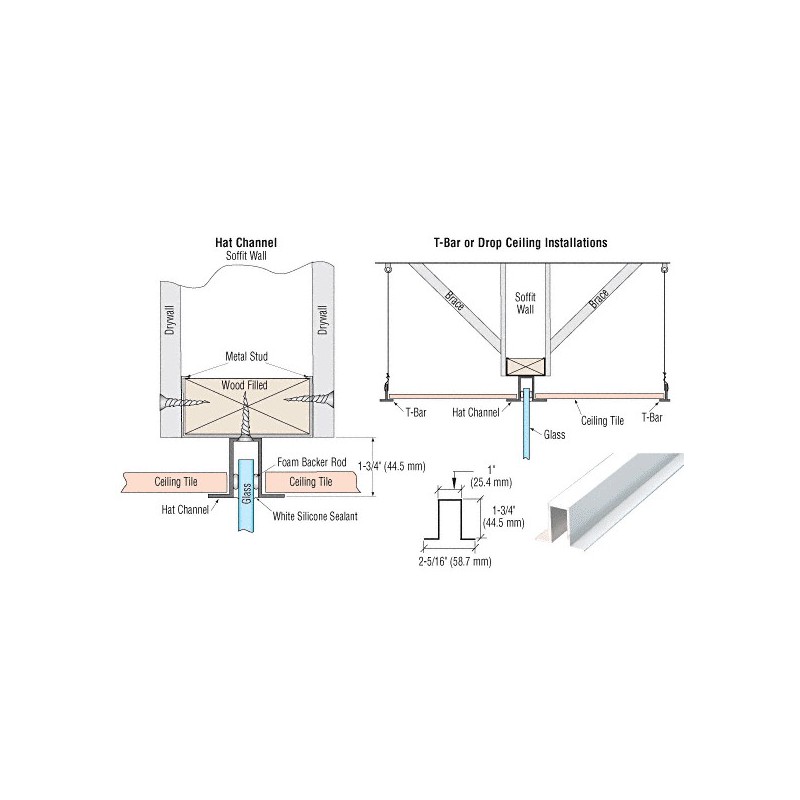

Our CRL Hat Channel secures to the bottom of the soffit. It provides a glazing pocket for 3/8" or 1/2" (10 or 12 mm) glass, and ceiling panel retaining lips that match the T-Bar 1-3/4" (44.5 mm) below the soffit. Glass is secured with Cat. No. RTV408W White Silicone Sealant.
Accepts 3/8" or 1/2" (10 or 12 mm) Glass
White Finish to Match Ceiling T-Bar
Use Monolithic Tempered Glass
Glass is Secured with Silicone Sealant
Accepts 3/8" or 1/2" (10 or 12 mm) Glass
White Finish to Match Ceiling T-Bar
Use Monolithic Tempered Glass
Glass is Secured with Silicone Sealant
Catalog Number: HC1WH240
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 166Z
CRL63A Architectural Hardware Master, PAGE 171H
CRL93A Architectural Hardware, PAGE CH054
DC14 Door Controls Catalog 2014, PAGE D357
Color: White
Length : 240" (6.10 m)
Ship Via: Requires Cutting Instructions for UPS
Shipping Weight: 6 lb (2.72kg)
Minimum Order: 1 Stock Length
Packing Charge: $ 6.50 for orders of fewer than 5 stock length of overhead u-channel
Finishes and/or shapes may be combined to meet minimum quantity.
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 166Z
CRL63A Architectural Hardware Master, PAGE 171H
CRL93A Architectural Hardware, PAGE CH054
DC14 Door Controls Catalog 2014, PAGE D357
Color: White
Length : 240" (6.10 m)
Ship Via: Requires Cutting Instructions for UPS
Shipping Weight: 6 lb (2.72kg)
Minimum Order: 1 Stock Length
Packing Charge: $ 6.50 for orders of fewer than 5 stock length of overhead u-channel
Finishes and/or shapes may be combined to meet minimum quantity.
CATALOG NUMBER DESCRIPTION COLOR
HC1WH240 CRL White 240" Length Hat Channel for Fixed Glazing
HC1WHCL CRL White Custom Length Hat Channel for Fixed Glazing
HC1WHSL CRL White 120" Length Hat Channel for Fixed Glazing
HC1WH240 CRL White 240" Length Hat Channel for Fixed Glazing
HC1WHCL CRL White Custom Length Hat Channel for Fixed Glazing
HC1WHSL CRL White 120" Length Hat Channel for Fixed Glazing
Available in stock in 120" and 240" (3.05 and 6.10 m) lengths, also available in custom lengths by contacting CRL Technical Sales.
