CRL Polished Stainless Z-Series Round Type 2" Radius Base Stainless Steel Clamp for 3/8" Glass - Z310PS
Our CRL Z-Series Round Type Radius Base Glass Clamps are designed to be used on glass thickness of 1/4" up to 1/2" (6 to 12 mm), and are available in either zinc or stainless steel. The clamps are the perfect solution for partitions, railings, windbreaks and countless other projects.
For 3/8" (10 mm) Glass
Use Monolithic Tempered Glass
Use on Mezzanines, Partitions, Railings and Windbreaks
Steel Pin Available for Additional Glass Support
Tested and Engineered to Meet and Exceed Code Standards (Engineering Reports)
Custom Painted Finishes Available Upon Request
For 3/8" (10 mm) Glass
Use Monolithic Tempered Glass
Use on Mezzanines, Partitions, Railings and Windbreaks
Steel Pin Available for Additional Glass Support
Tested and Engineered to Meet and Exceed Code Standards (Engineering Reports)
Custom Painted Finishes Available Upon Request
Catalog Number: Z310PS
Also Available in These Catalogs:
CRL63R Architectural Railing Systems, PAGE 270R
CRL53R Glass & Glazing Catalog, PAGE 284G
HR18 Architectural Railing Systems 2018, PAGE 306B
SC18 Standoff and Clamp Hardware, PAGE 46SC
CRL63A Architectural Hardware Master, PAGE 613H
CRL93A Architectural Railings, PAGE HR102
Color: Polished Stainless

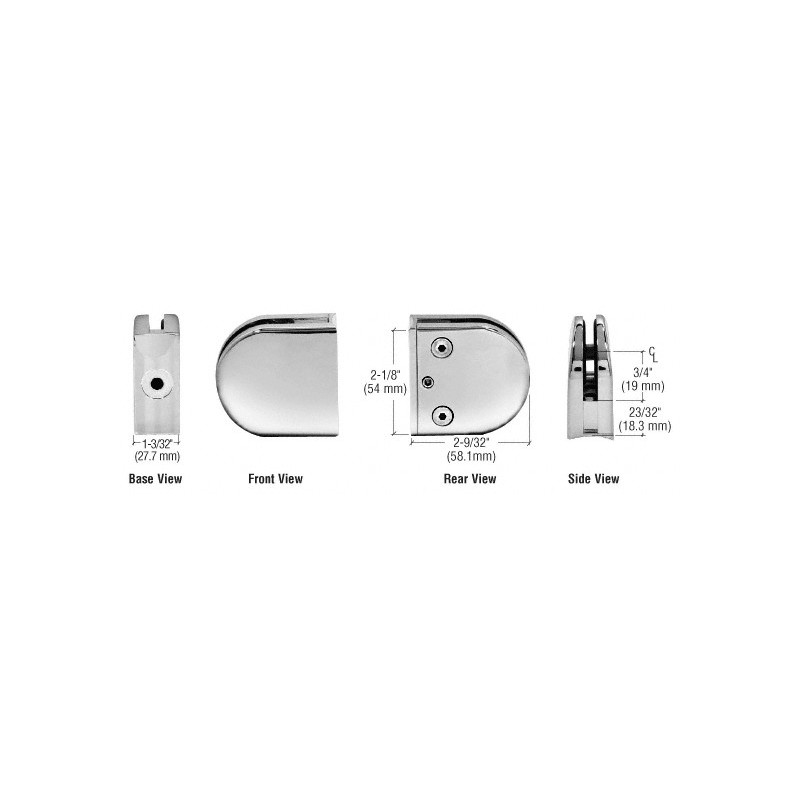

Width: 2-9/32" (58.1 mm)
Height: 2-1/8" (54 mm)
Tube Diameter: 2" (51 mm)
Ship Via: Can Ship UPS
Shipping Weight: 8 oz (227g)
Minimum Order: 1 Each
Also Available in These Catalogs:
CRL63R Architectural Railing Systems, PAGE 270R
CRL53R Glass & Glazing Catalog, PAGE 284G
HR18 Architectural Railing Systems 2018, PAGE 306B
SC18 Standoff and Clamp Hardware, PAGE 46SC
CRL63A Architectural Hardware Master, PAGE 613H
CRL93A Architectural Railings, PAGE HR102
Color: Polished Stainless
Width: 2-9/32" (58.1 mm)
Height: 2-1/8" (54 mm)
Tube Diameter: 2" (51 mm)
Ship Via: Can Ship UPS
Shipping Weight: 8 oz (227g)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
Z310BS CRL Brushed Stainless Z-Series Round Type 2" Radius Base Stainless Steel Clamp for 3/8" Glass
Z310PS CRL Polished Stainless Z-Series Round Type 2" Radius Base Stainless Steel Clamp for 3/8" Glass
Z310BS CRL Brushed Stainless Z-Series Round Type 2" Radius Base Stainless Steel Clamp for 3/8" Glass
Z310PS CRL Polished Stainless Z-Series Round Type 2" Radius Base Stainless Steel Clamp for 3/8" Glass
For securing the Z-Clamp to thin wall tubing (less than 1/8), use CRLs ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. For installation, drill a 17/32 (13.5 mm) hole, then install the Rivet-Nut using 34604 Heavy-Duty Thread Insert tool and 34618 5/16 Mandrel and Nosepiece.
NOTE: 1/2" (12 mm) notch is required if using the steel pin (included with the clamp) for additional glass support. Replacement gaskets are available by ordering CRL Cat. No. Z14RG.
SPECIFICATIONS:
Glass Thicknesses: Models for 1/4" to 1/2" (6 to 12 mm)
Base Design: Radius
For Use With: 1-1/2" or 2" (38 or 50.8 mm) Diameter Round Tubing
Material: Choice of Zinc Constructed or Stainless Steel. Stainless Steel or Powder Painted Zinc Clamps are recommended for more durability in exterior applications.
Glass Fabrication:
For 1/4" (6 mm), 5/16" (8 mm), and 3/8" (10 mm)
Thick Glass: 1/2" (12 mm) notch is required if using provided steel pin for glass support. For 1/2" (12 mm) Thick Glass: 9/16" (14 mm) diameter hole required if using provided steel pin for glass support.
Includes: Rubber Gaskets and Steel Pin (for optional use) with Grommet
NOTE: 1/2" (12 mm) notch is required if using the steel pin (included with the clamp) for additional glass support. Replacement gaskets are available by ordering CRL Cat. No. Z14RG.
SPECIFICATIONS:
Glass Thicknesses: Models for 1/4" to 1/2" (6 to 12 mm)
Base Design: Radius
For Use With: 1-1/2" or 2" (38 or 50.8 mm) Diameter Round Tubing
Material: Choice of Zinc Constructed or Stainless Steel. Stainless Steel or Powder Painted Zinc Clamps are recommended for more durability in exterior applications.
Glass Fabrication:
For 1/4" (6 mm), 5/16" (8 mm), and 3/8" (10 mm)
Thick Glass: 1/2" (12 mm) notch is required if using provided steel pin for glass support. For 1/2" (12 mm) Thick Glass: 9/16" (14 mm) diameter hole required if using provided steel pin for glass support.
Includes: Rubber Gaskets and Steel Pin (for optional use) with Grommet
