CRL Matte Black Z-Series Square Type Flat Base Stainless Steel Clamp for 1/2" Glass - Z912MBL

Finish: MATTE BLACK
$31.06
Quantity

This CRL Z-Series Square Type Flat Base Glass Clamp is designed to be used on glass 1/2" (12 mm) thickness. Constructed from either zinc or stainless steel, the clamps are the perfect solution for partitions, railings, windbreaks and countless other projects.
For 1/2" (12 mm) Glass Thickness
Replacement Gaskets are Available by Ordering Cat. No. Z12SG
For Use on Mezzanines, Partitions, Railings and Windbreaks
Use Monolithic Tempered Glass
Steel Pin Available for Additional Glass Support
Tested and Engineered to Meet and Exceed Code Standards (Engineering Reports)
Custom Painted Finishes Available Upon Request
Catalog Number: Z912MBL
Also Available in These Catalogs:
This Item is Not Yet Shown in Any Printed Catalog.
Color: Matte Black

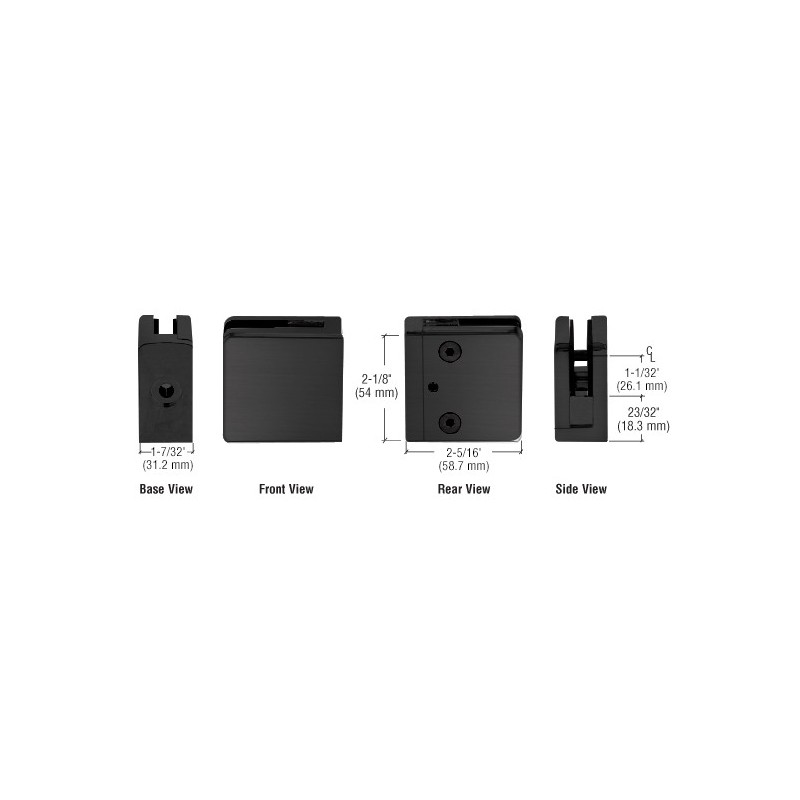

Width: 2-1/8" (54 mm)
Height: 2-5/16" (58.7 mm)
Ship Via: Can Ship UPS
Shipping Weight: 8 oz (227g)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
Z912BS CRL Brushed Stainless Z-Series Square Type Flat Base Stainless Steel Clamp for 1/2" Glass
Z912MBL CRL Matte Black Z-Series Square Type Flat Base Stainless Steel Clamp for 1/2" Glass
Z912PS CRL Polished Stainless Z-Series Square Type Flat Base Stainless Steel Clamp for 1/2" Glass
Z912PT CRL Painted Z-Series Square Type Flat Base Stainless Steel Clamp for 1/2" Glass
For securing the Z-Clamp to thin wall tubing (less than 1/8), use CRLs ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. For installation, drill a 17/32 (13.5 mm) hole, then install the Rivet-Nut using 34604 Heavy-Duty Thread Insert tool and 34618 5/16 Mandrel and Nosepiece.
NOTE: 9/16" (14.3 mm) hole is required if using the steel pin (included with the clamp) for additional glass support.
SPECIFICATIONS:
Glass Thicknesses: Models for 1/4" to 1/2" (6 to 12 mm)
Base Design: Flat
For Use With: Square Tubing or Other Flat Surfaces
Material: Choice of Zinc Constructed or Stainless Steel. Stainless Steel or Powder Painted Zinc Clamps are recommended for more durability in exterior applications.
Glass Fabrication: For 1/4" (6 mm), 5/16" (8 mm), and 3/8" (10 mm) Thick Glass: 1/2" (12 mm) diameter hole required if using provided steel pin for glass support. For 1/2" (12 mm) Thick Glass: 9/16" (14 mm) diameter hole required if using provided steel pin for glass support.
Includes: Rubber Gaskets and Steel Pin (for optional use) with Grommet
