CRL Polished Stainless Z-Series Flat Surface Mount Square Type Glass Clamps for 3/4" Glass - Z934PS
CRL Brushed Stainless Z-Series Flat Surface Mount Square Type Glass Clamps for 3/4" (19 mm) Glass.
For Use with Square Tubing or Other Flat Surfaces
316 Alloy Stainless Steel
For 3/4" (19 mm) Glass (Flat Surface Mounting)
Use Monolithic Tempered Glass
Custom Painted Finishes Available Upon Request
For Use with Square Tubing or Other Flat Surfaces
316 Alloy Stainless Steel
For 3/4" (19 mm) Glass (Flat Surface Mounting)
Use Monolithic Tempered Glass
Custom Painted Finishes Available Upon Request
Catalog Number: Z934PS
Also Available in These Catalogs:
CRL63R Architectural Railing Systems, PAGE 274R
CRL53R Glass & Glazing Catalog, PAGE 288G
HR18 Architectural Railing Systems 2018, PAGE 310B
SC18 Standoff and Clamp Hardware, PAGE 50SC
CRL63A Architectural Hardware Master, PAGE 617H
CRL93A Architectural Railings, PAGE HR108
Color: Polished Stainless

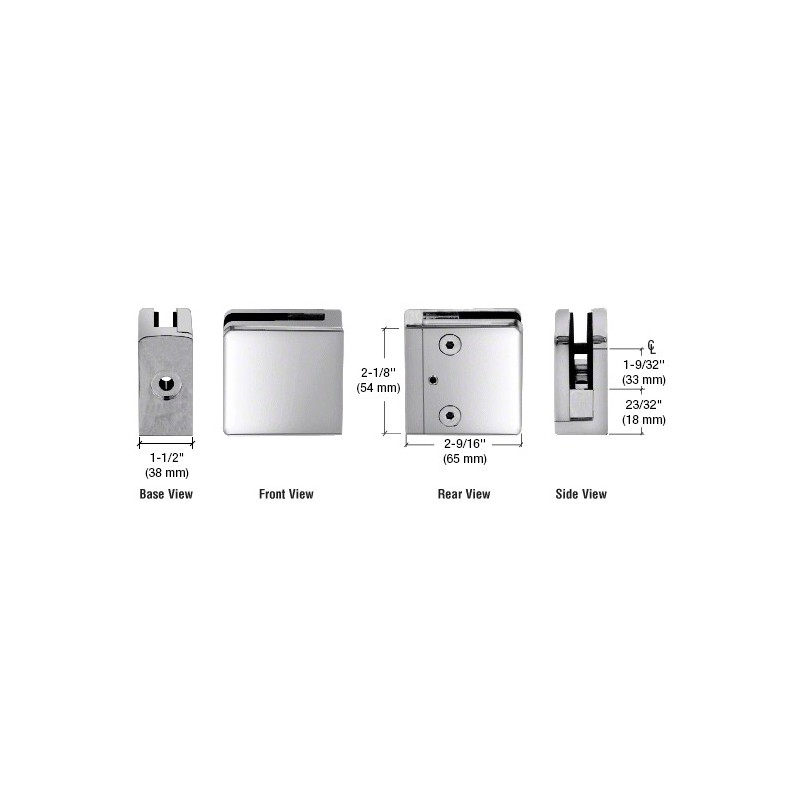

Width: 2-1/8" (54 mm)
Height : 2-5/16" (58.7 mm)
Ship Via: Can Ship UPS
Shipping Weight: 1 lb (454g)
Minimum Order: 1 Each
Also Available in These Catalogs:
CRL63R Architectural Railing Systems, PAGE 274R
CRL53R Glass & Glazing Catalog, PAGE 288G
HR18 Architectural Railing Systems 2018, PAGE 310B
SC18 Standoff and Clamp Hardware, PAGE 50SC
CRL63A Architectural Hardware Master, PAGE 617H
CRL93A Architectural Railings, PAGE HR108
Color: Polished Stainless
Width: 2-1/8" (54 mm)
Height : 2-5/16" (58.7 mm)
Ship Via: Can Ship UPS
Shipping Weight: 1 lb (454g)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
Z934BS CRL Brushed Stainless Z-Series Flat Surface Mount Square Type Glass Clamps for 3/4" Glass
Z934MBL CRL Matte Black Z-Series Flat Surface Mount Square Type Glass Clamps for 3/4" Glass
Z934PS CRL Polished Stainless Z-Series Flat Surface Mount Square Type Glass Clamps for 3/4" Glass
Z934BS CRL Brushed Stainless Z-Series Flat Surface Mount Square Type Glass Clamps for 3/4" Glass
Z934MBL CRL Matte Black Z-Series Flat Surface Mount Square Type Glass Clamps for 3/4" Glass
Z934PS CRL Polished Stainless Z-Series Flat Surface Mount Square Type Glass Clamps for 3/4" Glass
SPECIFICATIONS:
Glass Thickness: 3/4" (19 mm)
Base Design: Flat and Radius
For Use With: Square Tubing or Other Flat Surfaces and 2" (51 mm) Diameter Round Tubing
Material: 316 Alloy Stainless Steel
Glass Fabrication: One 7/8" (22 mm) diameter finger notch is required. The included steel pin must be used for 3/4" (19 mm) Glass applications.
Includes: Rubber Gaskets and Steel Pin
Glass Thickness: 3/4" (19 mm)
Base Design: Flat and Radius
For Use With: Square Tubing or Other Flat Surfaces and 2" (51 mm) Diameter Round Tubing
Material: 316 Alloy Stainless Steel
Glass Fabrication: One 7/8" (22 mm) diameter finger notch is required. The included steel pin must be used for 3/4" (19 mm) Glass applications.
Includes: Rubber Gaskets and Steel Pin
