CRL Matte Black Z-Series Square Type Radius Base Stainless Steel Clamp for 3/8" Glass - Z710MBL

Finish: MATTE BLACK
$29.95
Quantity

This CRL Z-Series Square Type Radius Base Glass Clamp is designed to be used on glass thickness of 3/8" (10 mm). Constructed from either zinc or stainless steel, the clamps are the perfect solution for partitions, railings, windbreaks and countless other projects.
For 3/8" (10 mm) Glass
Replacement Gaskets are Available by Ordering Cat. No. Z38SG
For Use on Mezzanines, Partitions, Railings and Windbreaks
Use Monolithic Tempered Glass
Steel Pin Available for Additional Glass Support
Tested and Engineered to Meet and Exceed Code Standards (Engineering Reports)
Custom Painted Finishes Available Upon Request
Catalog Number: Z710MBL
Also Available in These Catalogs:
This Item is Not Yet Shown in Any Printed Catalog.

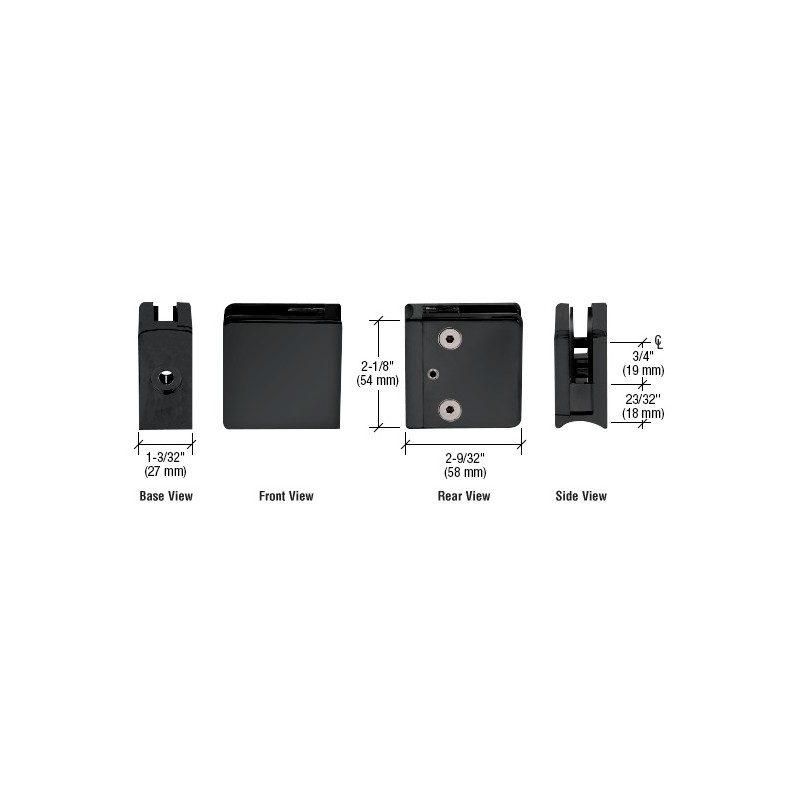

Color: Matte Black
Width: 2-1/8" (54 mm)
Height: 2-9/32" (58.1 mm)
Ship Via: Can Ship UPS
Shipping Weight: 8 oz (227g)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
Z710BS CRL Brushed Stainless Z-Series Square Type Radius Base Stainless Steel Clamp for 3/8" Glass
Z710MBL CRL Matte Black Z-Series Square Type Radius Base Stainless Steel Clamp for 3/8" Glass
Z710PS CRL Polished Stainless Z-Series Square Type Radius Base Stainless Steel Clamp for 3/8" Glass
For securing the Z-Clamp to thin wall tubing (less than 1/8), use CRLs ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. For installation, drill a 17/32 (13.5 mm) hole, then install the Rivet-Nut using 34604 Heavy-Duty Thread Insert tool and 34618 5/16 Mandrel and Nosepiece.
NOTE: 1/2" (12 mm) hole is required if using the steel pin (included with the clamp) for additional glass support.
SPECIFICATIONS: Glass Thicknesses: Models for 1/4" to 1/2" (6 to 12 mm).
Base Design: Radius.
For Use With: 2" (51 mm) Diameter Round Tubing only.
Material: Choice of Zinc Constructed or Stainless Steel. Stainless Steel or Powder Painted Zinc Clamps are recommended for more durability in exterior applications.
Glass Fabrication: For 1/4" (6 mm), 5/16" (8 mm), and 3/8" (10 mm) Thick Glass: 1/2" (12 mm) diameter hole required if using provided steel pin for glass support. For 1/2" (12 mm) Thick Glass: 9/16" (14 mm) diameter hole required if using provided steel pin for glass support.
Includes: Rubber Gaskets and Steel Pin (for optional use) with Grommet.
