CRL Brushed Stainless Z-Series Radius Surface Mount Square Type Glass Clamps for 3/4" (19 mm) Glass - Z734BS

CRL Replacement Gaskets are available for both square and round Z-Clamps as well as for 1/4", 1/2", 3/8", and 5/8" (6, 12, 10, and 16 mm) thick glass. Two gaskets per pack.
For 3/4" (19 mm) Glass (Radius Surface Mounting)
For Use with 2" (51 mm) Diameter Round Tubing
316 Alloy Stainless Steel
Use Monolithic Tempered Glass
Catalog Number: Z734BS
Also Available in These Catalogs:
CRL63R Architectural Railing Systems, PAGE 274R
CRL53R Glass & Glazing Catalog, PAGE 288G
HR18 Architectural Railing Systems 2018, PAGE 310B
SC18 Standoff and Clamp Hardware, PAGE 50SC
CRL63A Architectural Hardware Master, PAGE 617H
CRL93A Architectural Railings, PAGE HR108
Color: Brushed Stainless

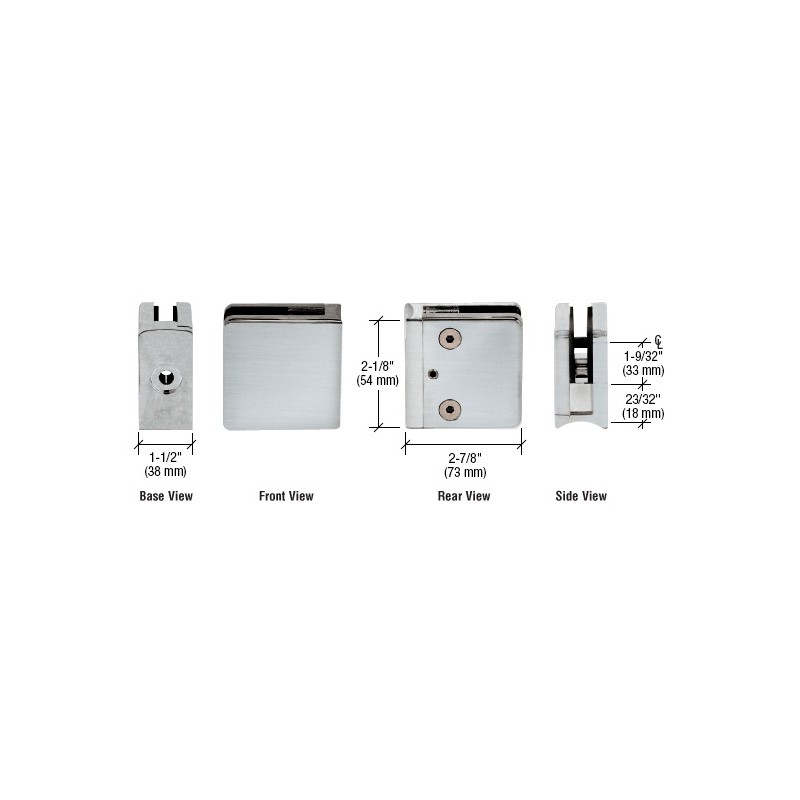

Width: 2-1/8" (54 mm)
Height: 2-5/16" (58.7 mm)
Ship Via: Can Ship UPS
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
Z734BS CRL Brushed Stainless Z-Series Radius Surface Mount Square Type Glass Clamps for 3/4" (19 mm) Glass
Z734PS CRL Polished Stainless Z-Series Radius Surface Mount Square Type Glass Clamps for 3/4" (19 mm) Glass
SPECIFICATIONS:
Glass Thickness: 3/4" (19 mm)
Base Design: Flat and Radius
For Use With: Square Tubing or Other Flat Surfaces and 2" (51 mm) Diameter Round Tubing
Material: 316 Alloy Stainless Steel
Glass Fabrication: One 7/8" (22 mm) diameter finger notch is required. The included steel pin must be used for 3/4" (19 mm) Glass applications.
Includes: Rubber Gaskets and Steel Pin
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting Glass Experts customer service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
