CRL Polished Stainless Zurich 02 Series 180 Degree Glass-to-Glass Inswing or Outswing Bi-Fold Hinge - ZUR02PS
The CRL Zurich Series of professional Hinges for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass was the first Bi-fold Hinge offered by CRL. All seven Zurich Hinge models feature stainless steel or brass construction, and are available in up to 13 finishes. In addition, screws and washers are interchangeable for a special design accent. Only two holes per Hinge per panel are required, with no cut-out necessary.
180 Degree Glass-to-Glass Inswing or Outswing Bi-Fold Application
Available in Several Beautiful Finishes
Use Monolithic Tempered Glass
180 Degree Glass-to-Glass Inswing or Outswing Bi-Fold Application
Available in Several Beautiful Finishes
Use Monolithic Tempered Glass
Catalog Number: ZUR02PS
Also Available in These Catalogs:
SD16 Frameless Shower Door Hardware 2015, PAGE 130S
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 184J
CRL93A Shower Door, PAGE SD037
Color: Polished Stainless

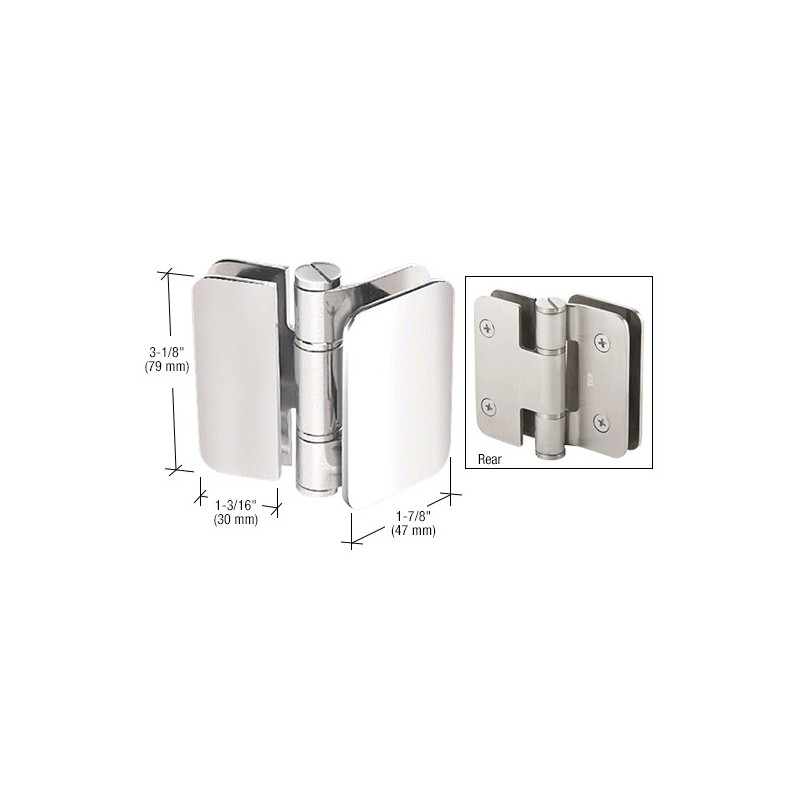

Height: 3-1/8" (79 mm)
Width: 1-7/8" (47 mm)
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Minimum Order: 1 Each
Also Available in These Catalogs:
SD16 Frameless Shower Door Hardware 2015, PAGE 130S
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 184J
CRL93A Shower Door, PAGE SD037
Color: Polished Stainless
Height: 3-1/8" (79 mm)
Width: 1-7/8" (47 mm)
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
ZUR02PS CRL Polished Stainless Zurich 02 Series 180 Degree Glass-to-Glass Inswing or Outswing Bi-Fold Hinge
ZUR02BN CRL Brushed Nickel Zurich 02 Series 180 Degree Glass-to-Glass Inswing or Outswing Bi-Fold Hinge
ZUR02GP CRL Gold Plated Zurich 02 Series 180 Degree Glass-to-Glass Inswing or Outswing Bi-Fold Hinge
ZUR02PS CRL Polished Stainless Zurich 02 Series 180 Degree Glass-to-Glass Inswing or Outswing Bi-Fold Hinge
ZUR02BN CRL Brushed Nickel Zurich 02 Series 180 Degree Glass-to-Glass Inswing or Outswing Bi-Fold Hinge
ZUR02GP CRL Gold Plated Zurich 02 Series 180 Degree Glass-to-Glass Inswing or Outswing Bi-Fold Hinge
Screw and Washer Accent Kit: Interchangeable Screws and Washers for Zurich Series Hinges let you add a special highlighting accent to the installation (e.g., Cat. No. ZUR70). Available in four finishes: Brass, polished stainless, satin stainless, and gold plated.
NOTE: Not Available in Germany.
Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 150 lbs. (68 kg) with a maximum door width of 40" (1.02 m).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Ideal for Bi-Fold Application. Use ZUR01 and ZUR03 for doors that fold into tub area. Use ZUR02 and ZUR05 for doors that fold out to bathroom area.
Construction: Stainless Steel or Solid Brass
Hinge Swings: See descriptions next to photos of hinges.
Closing Type: Free-Swinging
Two Holes Required Per Hinge Per Panel (No Cut-Out)
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.
NOTE: Not Available in Germany.
Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 150 lbs. (68 kg) with a maximum door width of 40" (1.02 m).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Ideal for Bi-Fold Application. Use ZUR01 and ZUR03 for doors that fold into tub area. Use ZUR02 and ZUR05 for doors that fold out to bathroom area.
Construction: Stainless Steel or Solid Brass
Hinge Swings: See descriptions next to photos of hinges.
Closing Type: Free-Swinging
Two Holes Required Per Hinge Per Panel (No Cut-Out)
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.
