CRL285 Series Brushed Stainless Anodized Single Slider Kit for 1/2" Glass - CRL28512BSA
Finish:
$1,787.34

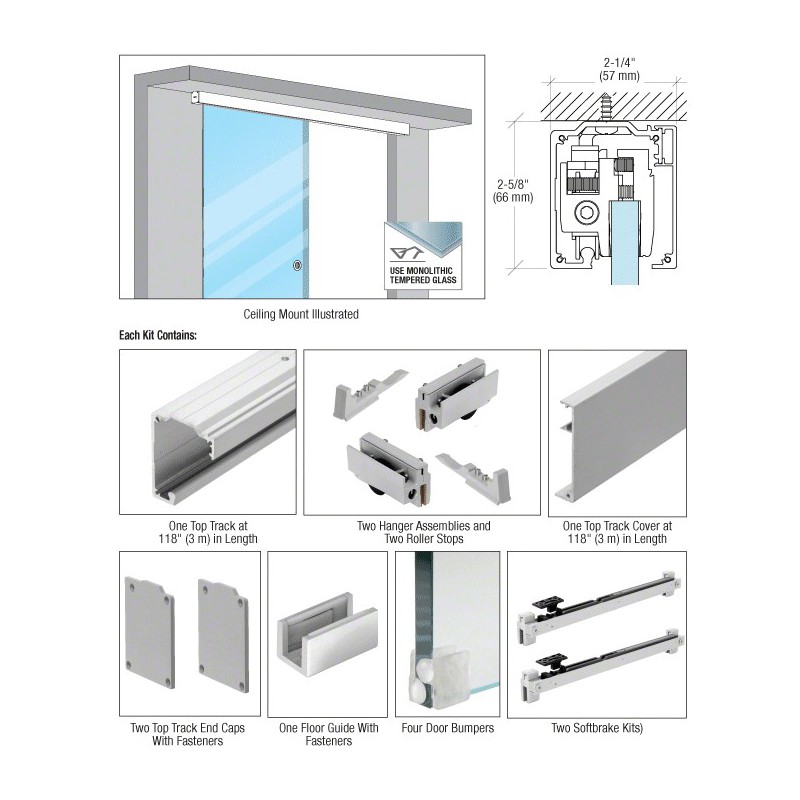

This configuration of the CRL285 Series Slider is used for single door applications where the top track mounts to a structural wall or ceiling. Kit includes all the components you will need (except the tempered glass) to complete this style of installation. One "Softbrake" is supplied for each direction of travel to be controlled. Minimum sliding panel width of 25-1/2" (650 mm) for control in a single direction; 39-3/8" (1000 mm) for control in both directions of travel.
For 1/2" (2 mm) Glass Thickness
Maximum Weight 176 Pounds (80 kg), Maximum Panel Width 59" (1.5 m)
Kits Contain All Necessary Hardware to Complete the Installation
118" (3000 mm) Track Length
For 1/2" (2 mm) Glass Thickness
Maximum Weight 176 Pounds (80 kg), Maximum Panel Width 59" (1.5 m)
Kits Contain All Necessary Hardware to Complete the Installation
118" (3000 mm) Track Length
Catalog Number: CRL28512BSA
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 394Z
CRL93A Architectural Hardware, PAGE CH261
Glass Thickness: 3/8" to 1/2" (10 to 12 mm)
Ship Via: No UPS - Common Carrier Only
Minimum Order: 1 Each
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 394Z
CRL93A Architectural Hardware, PAGE CH261
Glass Thickness: 3/8" to 1/2" (10 to 12 mm)
Ship Via: No UPS - Common Carrier Only
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION
CRL28512 CRL285 Series Satin Anodized Single Slider Kit for 3/8" and 1/2" Tempered Glass
CRL28512BSA CRL285 Series Brushed Stainless Anodized Single Slider Kit for 1/2" Glass
CRL28512 CRL285 Series Satin Anodized Single Slider Kit for 3/8" and 1/2" Tempered Glass
CRL28512BSA CRL285 Series Brushed Stainless Anodized Single Slider Kit for 1/2" Glass
NOTE: Laminated glass should not be used.
