CRL50 Series Ceiling Mount Synchronized and Telescoping Kit - CRL502CSP2
CRL offers a combined Synchronized and Telescoping Kit as part of our CRL50 Series for use on 5/16" to 3/8" (8 to 10 mm) tempered glass doors. This Kit provides the best of both worlds, synchronized and telescoping operation in a four panel opening, where pairs of panels bi-part and stack away.
For 5/16" or 3/8" (8 or 10 mm) Tempered Glass
Use Monolithic Tempered Glass
Can Accommodate Doors Weighing Up to 176 Pounds (80 kg), Maximum Door Width of 39-3/8" (1 m)
For 5/16" or 3/8" (8 or 10 mm) Tempered Glass
Use Monolithic Tempered Glass
Can Accommodate Doors Weighing Up to 176 Pounds (80 kg), Maximum Door Width of 39-3/8" (1 m)
Catalog Number: CRL502CSP2
Also Available in These Catalogs:
CRL63A Architectural Hardware Master, PAGE 310H
CRL14D Door and Entrance Catalog, PAGE 333D
AH18 Architectural Hardware Catalog 2018, PAGE 378Z
CRL53R Glass & Glazing Catalog, PAGE 523G
CRL93A Architectural Hardware, PAGE CH245
Mount: Ceiling
Maximum Door Width: 39-3/8" (1m)
Ship Via: No UPS - Common Carrier Only
Minimum Order: 1 Each
Also Available in These Catalogs:
CRL63A Architectural Hardware Master, PAGE 310H
CRL14D Door and Entrance Catalog, PAGE 333D
AH18 Architectural Hardware Catalog 2018, PAGE 378Z
CRL53R Glass & Glazing Catalog, PAGE 523G
CRL93A Architectural Hardware, PAGE CH245
Mount: Ceiling
Maximum Door Width: 39-3/8" (1m)
Ship Via: No UPS - Common Carrier Only
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION
CRL502CSP2 CRL50 Series Ceiling Mount Synchronized and Telescoping Kit
CRL502CSP2 CRL50 Series Ceiling Mount Synchronized and Telescoping Kit
Kits are available with Track Covers in a satin anodized finish. Optional finishes are available on special order. Pull hardware is ordered separately. Contact our Technical Sales for Commercial Products for Kit selection or installation assistance.

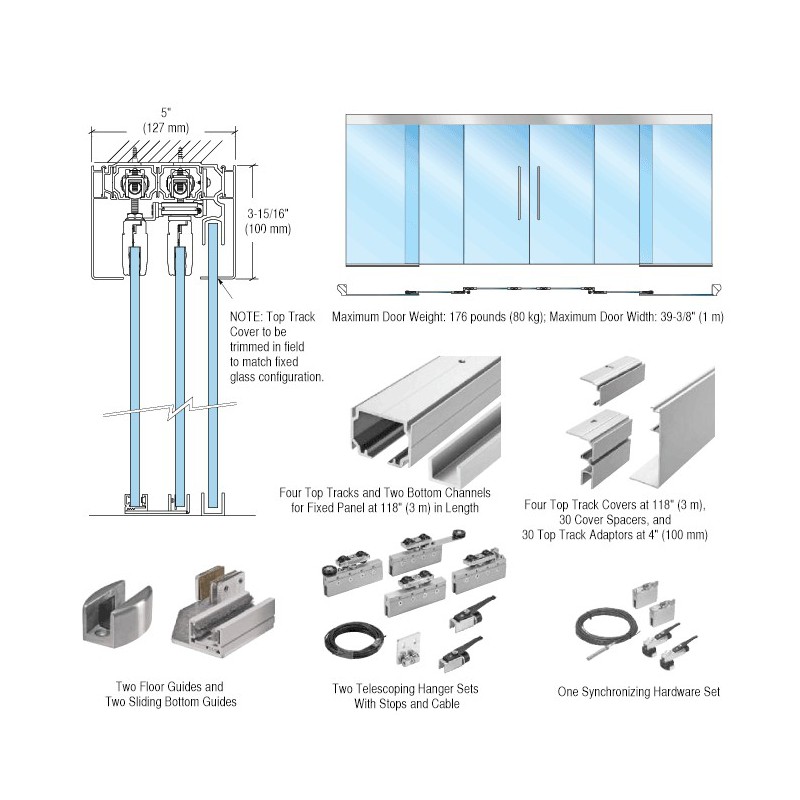

KIT INCLUDES:
Four Top Track Covers
30 Cover Spacers
30 Top Track Adaptors
NOTE: Laminated glass should not be used with the CRL50 Series Kits.
KIT INCLUDES:
Four Top Track Covers
30 Cover Spacers
30 Top Track Adaptors
NOTE: Laminated glass should not be used with the CRL50 Series Kits.
