CRL51 Series Ceiling Mount Single Slider Kit - CRL51C

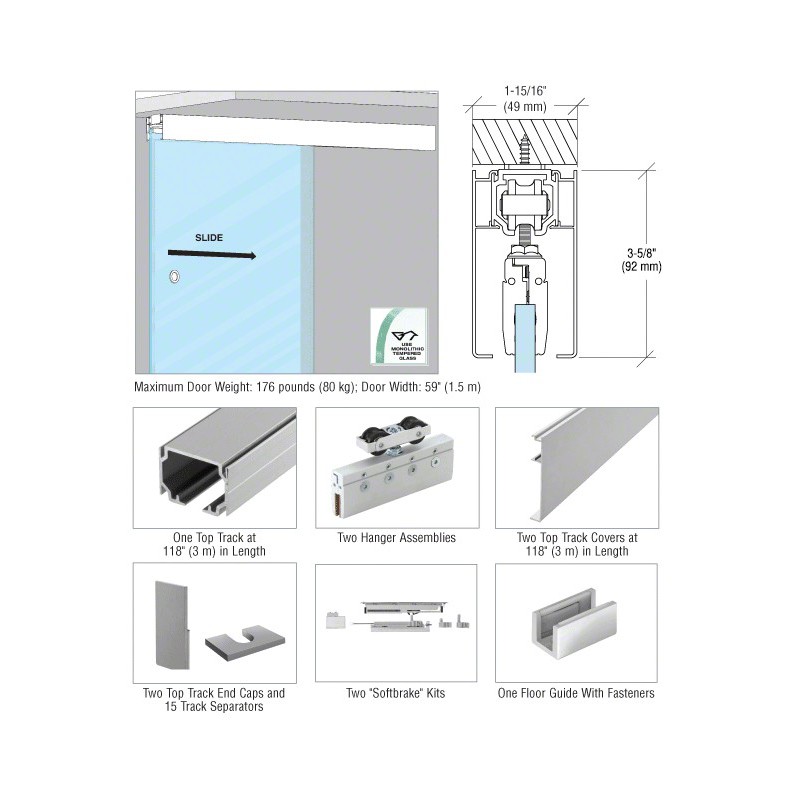

This configuration of the CRL51 Series Slider is used for single door applications where the top track mounts to a structural ceiling. Kit includes two Top Track Covers to conceal the Top Track and Hanger Assemblies, making for an attractive yet simple installation. Pull hardware ordered separately. One "Softbrake" is required for each direction of travel to be controlled per panel. Minimum sliding panel width of 25-9/16" (650 mm) for control in a single direction; 31-1/2" (800 mm) for control in both directions of travel.
"Softbrake" Braking System
For 5/16" or 3/8" (8 or 10 mm) Tempered Glass
Use Monolithic Tempered Glass
"Softbrake" Braking System
For 5/16" or 3/8" (8 or 10 mm) Tempered Glass
Use Monolithic Tempered Glass
Catalog Number: CRL51C
Also Available in These Catalogs:
USAL15 U.S. Aluminum Curtain Wall Catalog, PAGE 22P1
CRL14D Door and Entrance Catalog, PAGE 321D
AH18 Architectural Hardware Catalog 2018, PAGE 373Z
CRL93A Architectural Hardware, PAGE CH240
Overall Length: 118" (3 m)
Shelf Life: : :
Ship Via: No UPS - Common Carrier Only
Minimum Order: 1 Each
Also Available in These Catalogs:
USAL15 U.S. Aluminum Curtain Wall Catalog, PAGE 22P1
CRL14D Door and Entrance Catalog, PAGE 321D
AH18 Architectural Hardware Catalog 2018, PAGE 373Z
CRL93A Architectural Hardware, PAGE CH240
Overall Length: 118" (3 m)
Shelf Life: : :
Ship Via: No UPS - Common Carrier Only
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION
CRL51C CRL51 Series Ceiling Mount Single Slider Kit
CRL51C CRL51 Series Ceiling Mount Single Slider Kit
NOTE: Laminated glass should not be used.
