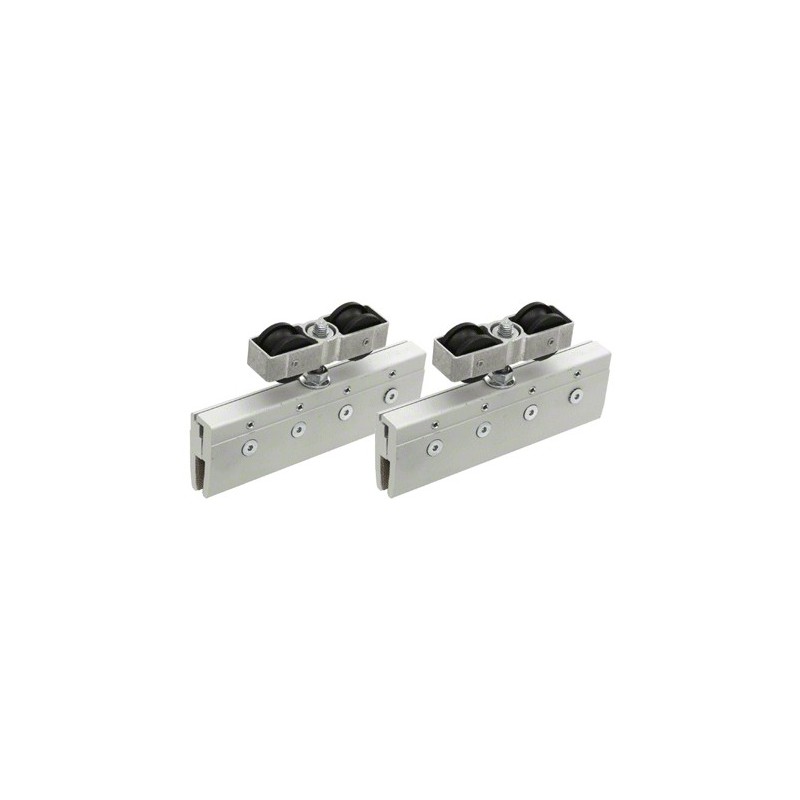

CRL70 Series Sliding Door Hanger Set - CRL3986

CRL70 Series Hanger Assemblies for Glass Doors are used with Cat. No. CRL3980A Top Track and 5/16" to 1/2" (8 to 12 mm) tempered glass. No notches or holes are required in the glass. Each set comes with two roller assemblies and two clamps. They can be fine tuned 1/4" (6 mm) in height to allow for floors and walls that are not true and level.
Smooth Rolling Tandem Rollers for 5/16" to 1/2" (8 to 12 mm) Tempered Glass
Features 1/4" (6 mm) Height Adjustment
275 Pounds (125 kg) Maximum Weight Capacity Per Set
Catalog Number: CRL3986
Also Available in These Catalogs:
CRL14D Door and Entrance Catalog, PAGE 352D
AH18 Architectural Hardware Catalog 2018, PAGE 387Z
CRL93A Architectural Hardware, PAGE CH254
Ship Via: Can Ship UPS
CATALOG NUMBER DESCRIPTION
CRL3986 CRL70 Series Sliding Door Hanger Set
No additional product information available at this time.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting Glass Experts customer service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Specific References
