CRL Diamond Style Spindle 8.5 Lb. Exterior 105º No Hold Open Retrofit Overhead Concealed Closer Body Only - CRL7672
This CRL Overhead Concealed Door Closer incorporates a spindle set in the diamond position, instead of a square position, at 0º. This enables door installers to replace existing pre-1998 Kawneer® original style Husky® Door Closers without the need to change the door arm, which requires a diamond pattern spindle engagement. With the addition of our Retrofit Clips for either 4" or 4-1/2" (102 or 114 mm) optional headers, the existing door closer can be replaced without the need to replace any additional door hardware. The existing Center-Hung or Offset Arms can be used, as well as the existing pivot.
Spindle Set in the Diamond Position at 0º
Replace Existing Pre-1998 Original Kawneer® Husky® Closers
5 Year Limited Warranty
UL Listed
Warranty Information and Cross Reference Chart Available
Spindle Set in the Diamond Position at 0º
Replace Existing Pre-1998 Original Kawneer® Husky® Closers
5 Year Limited Warranty
UL Listed
Warranty Information and Cross Reference Chart Available
Catalog Number: CRL7672
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 317Z
CRL63A Architectural Hardware Master, PAGE 460H
CRL83R Door and Window Replacement, PAGE 701W
CRL93A Architectural Hardware, PAGE CH172
DC14 Door Controls Catalog 2014, PAGE D343
Spring Size: 8.5 Lb.
Door Size (Width): 36" to 48" (914 mm to 1.22 m)
No Hold Open: 105
Ship Via: Can Ship UPS
Shipping Weight: 10 lb (4.54kg)
Case Qty: 6
Minimum Order: 1 Each
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 317Z
CRL63A Architectural Hardware Master, PAGE 460H
CRL83R Door and Window Replacement, PAGE 701W
CRL93A Architectural Hardware, PAGE CH172
DC14 Door Controls Catalog 2014, PAGE D343
Spring Size: 8.5 Lb.
Door Size (Width): 36" to 48" (914 mm to 1.22 m)
No Hold Open: 105
Ship Via: Can Ship UPS
Shipping Weight: 10 lb (4.54kg)
Case Qty: 6
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION
CRL7670 CRL Diamond Style Spindle 8.5 Lb. Exterior 105 Hold Open Retrofit Overhead Concealed Closer Body Only
CRL7672 CRL Diamond Style Spindle 8.5 Lb. Exterior 105 No Hold Open Retrofit Overhead Concealed Closer Body Only
CRL7770 CRL Diamond Style Spindle Medium Duty 105 Hold Open Retrofit Overhead Concealed Closer Body Only
CRL7772 CRL Diamond Style Spindle Medium Duty 105 No Hold Open Retrofit Overhead Concealed Closer Body Only
CRL7670 CRL Diamond Style Spindle 8.5 Lb. Exterior 105 Hold Open Retrofit Overhead Concealed Closer Body Only
CRL7672 CRL Diamond Style Spindle 8.5 Lb. Exterior 105 No Hold Open Retrofit Overhead Concealed Closer Body Only
CRL7770 CRL Diamond Style Spindle Medium Duty 105 Hold Open Retrofit Overhead Concealed Closer Body Only
CRL7772 CRL Diamond Style Spindle Medium Duty 105 No Hold Open Retrofit Overhead Concealed Closer Body Only
These Overhead Concealed Door Closers are available in 105 Hold Open and No Hold Open styles, with Medium Spring Size, and an 8.5 lb. model for exterior door applications. A diamond pattern End-Load Center-Hung Replacement Arm, Cat. No. CRL8010H, is also available.
NOTE: May require considerable alterations to retrofit. Mounting Clips are sold separately and are required to mount Closer.
NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entry way due to over-extension of maximum allowable door swing.

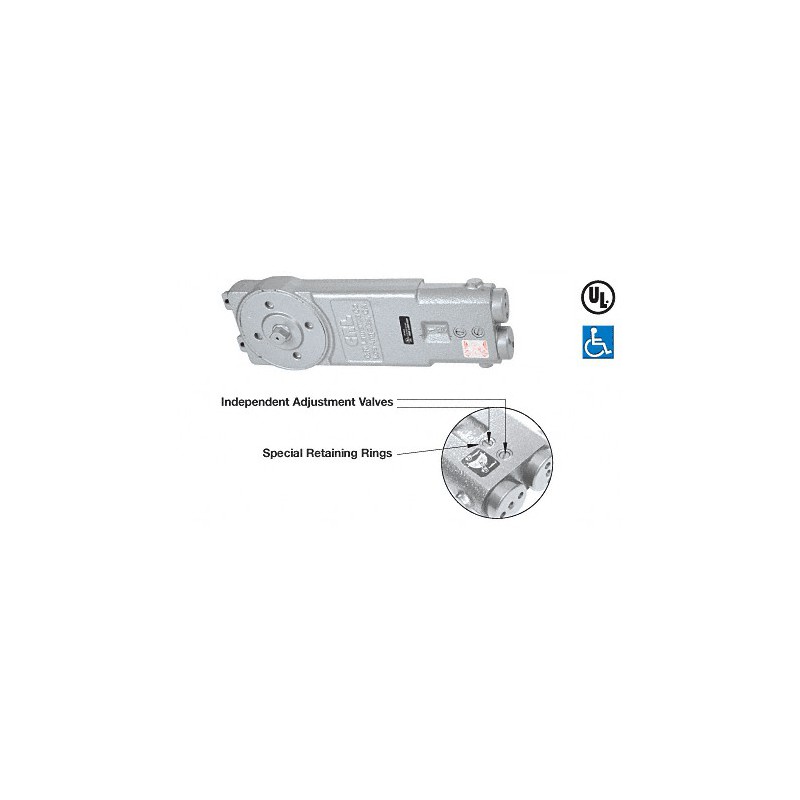

Independent Adjustment Valves
Non-Critical valve control adjusts both Closing Speed and Latching Speed independent of each other.
Special Retaining Rings
Prevent the Adjustment Valve Screws from being backed all the way out of the Door Closer Body.
NOTE: Although Series Door Closers comply with specified opening forces, they might not provide adequate spring power to control and close the door due to varying site conditions and door size.
NOTE: May require considerable alterations to retrofit. Mounting Clips are sold separately and are required to mount Closer.
NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entry way due to over-extension of maximum allowable door swing.
Independent Adjustment Valves
Non-Critical valve control adjusts both Closing Speed and Latching Speed independent of each other.
Special Retaining Rings
Prevent the Adjustment Valve Screws from being backed all the way out of the Door Closer Body.
NOTE: Although Series Door Closers comply with specified opening forces, they might not provide adequate spring power to control and close the door due to varying site conditions and door size.
