CRL-Blumcraft® Brushed Stainless Left Hand Reverse Rail Mount Retainer Plate 'F' Exterior, 'D' Shape Top Securing Panic Handle for 5/8" Glass - 5DP100F4RPBS
CRL-Blumcraft® manufactures a complete line of Access Control Handles for your 'all-glass' door needs. We have Panic Devices, Deadbolt Handles, and Electronic Egress Control Handles in a wide variety of configurations. We can also supply you with Dummy Handles to match these devices, allowing you to maintain the same appearance throughout the project, but without the added costs.
UL, ULC, and ANSI/BHMA Certified
Elegant Tubular Design
Wide Selection of Exterior Fixed Handles For 1/2" (12 mm) or 3/4" (19 mm) Tempered Glass Doors
Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
Custom Finishes Available By Special Order
Custom Sizes Ship Within One to Two Weeks
UL, ULC, and ANSI/BHMA Certified
Elegant Tubular Design
Wide Selection of Exterior Fixed Handles For 1/2" (12 mm) or 3/4" (19 mm) Tempered Glass Doors
Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
Custom Finishes Available By Special Order
Custom Sizes Ship Within One to Two Weeks
Catalog Number: 5DP100F4RPBS
Also Available in These Catalogs:
This Item is Not Yet Shown in Any Printed Catalog.
Color: Brushed Stainless
ANSI/BHMA Standards Web Site: buildershardware.com
U.S. UL Web Site: UL Certificate (US)
Canada UL Web Site: UL Certificate (CN)
Ship Via: No UPS - Common Carrier Only
Minimum Order: 1 Each
Also Available in These Catalogs:
This Item is Not Yet Shown in Any Printed Catalog.
Color: Brushed Stainless
ANSI/BHMA Standards Web Site: buildershardware.com
U.S. UL Web Site: UL Certificate (US)
Canada UL Web Site: UL Certificate (CN)
Ship Via: No UPS - Common Carrier Only
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
5DP100F4RKBS CRL-Blumcraft Brushed Stainless Left Hand Reverse Rail Mount Keyed Access 'F' Exterior, 'D' Shape Top Securing Panic Handle for 5/8" Glass
5DP100F4RPBS CRL-Blumcraft Brushed Stainless Left Hand Reverse Rail Mount Retainer Plate 'F' Exterior, 'D' Shape Top Securing Panic Handle for 5/8" Glass
DPA100F4RK0RB CRL-Blumcraft Oil Rubbed Bronze Left Hand Reverse Rail Mount Keyed Access "F" Exterior, "D" Shape Top Securing Panic Handle
DPA100F4RKBS CRL-Blumcraft Brushed Stainless Left Hand Reverse Rail Mount Keyed Access "F" Exterior, "D" Shape Top Securing Panic Handle
DPA100F4RKKN CRL-Blumcraft KYNAR Paint Left Hand Reverse Rail Mount Keyed Access "F" Exterior, "D" Shape Top Securing Panic Handle
DPA100F4RKPS CRL-Blumcraft Polished Stainless Left Hand Reverse Rail Mount Keyed Access "F" Exterior, "D" Shape Top Securing Panic Handle
DPA100F4RPBS CRL-Blumcraft Brushed Stainless Left Hand Reverse Rail Mount Keyed Retainer Plate "F" Exterior, "D" Shape Top Securing Panic Handle
5DP100F4RKBS CRL-Blumcraft Brushed Stainless Left Hand Reverse Rail Mount Keyed Access 'F' Exterior, 'D' Shape Top Securing Panic Handle for 5/8" Glass
5DP100F4RPBS CRL-Blumcraft Brushed Stainless Left Hand Reverse Rail Mount Retainer Plate 'F' Exterior, 'D' Shape Top Securing Panic Handle for 5/8" Glass
DPA100F4RK0RB CRL-Blumcraft Oil Rubbed Bronze Left Hand Reverse Rail Mount Keyed Access "F" Exterior, "D" Shape Top Securing Panic Handle
DPA100F4RKBS CRL-Blumcraft Brushed Stainless Left Hand Reverse Rail Mount Keyed Access "F" Exterior, "D" Shape Top Securing Panic Handle
DPA100F4RKKN CRL-Blumcraft KYNAR Paint Left Hand Reverse Rail Mount Keyed Access "F" Exterior, "D" Shape Top Securing Panic Handle
DPA100F4RKPS CRL-Blumcraft Polished Stainless Left Hand Reverse Rail Mount Keyed Access "F" Exterior, "D" Shape Top Securing Panic Handle
DPA100F4RPBS CRL-Blumcraft Brushed Stainless Left Hand Reverse Rail Mount Keyed Retainer Plate "F" Exterior, "D" Shape Top Securing Panic Handle
The operating mechanism concealed within the vertical tubing of our Panic Handles retracts the latch bolt when the interior actuation bar is pushed. An optional exterior Keyed Access Device can be installed to allow entry, and a special dogging feature allows the doors to remain unlocked during business hours. Electronic Strikes are also available, providing a variety of secured entry options.
CRL manufactures a complete line of Panic Handles designed with the 'all-glass' door in mind. These elegant tubular devices give you maximum viewing area and a contemporary look when used on 1/2" or 3/4" (12 or 19 mm) tempered glass doors.
The most popular of these Panics is our PA100 Series. They provide a solution to the strict Americans With Disabilities Act (A.D.A.) Codes that confront every manufacturer and installer of 'all-glass' doors.

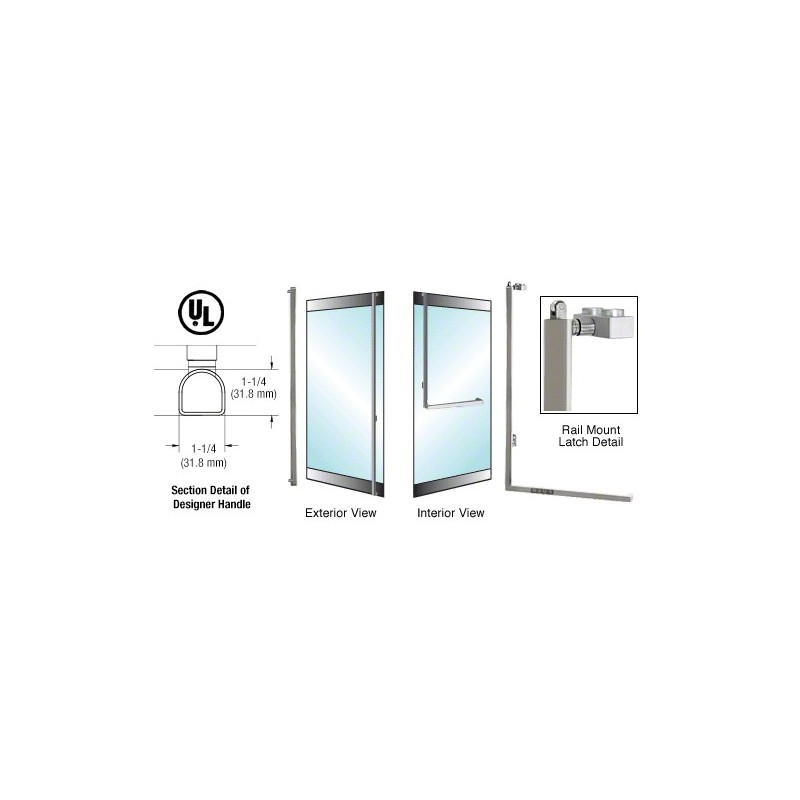

The interior portion of the device is a slender 1-1/4" (32 mm) tube stretching across the door and then gently turning upwards to the top of the door, eliminating any interference at the lower half of the door, which must remain clear of obstructions to pass A.D.A. demands.
All PA100 Series Panic Handles come with a 'dogging' feature that allows you to lock the device in the open position by simply sliding a lever, giving free access during business hours. They also can be used in conjunction with an Electric Strike, allowing for remote keyless entry. For your convenience, Custom Headers are available with all strike hardware installed.
For additional information, contact CRL Technical Sales from the home page by clicking on Contact Us, and then click on Technical Sales for Commercial Products. The latest catalog pages with complete details on our CRL-Blumcraft Access Handle product line can be found here.
CRL manufactures a complete line of Panic Handles designed with the 'all-glass' door in mind. These elegant tubular devices give you maximum viewing area and a contemporary look when used on 1/2" or 3/4" (12 or 19 mm) tempered glass doors.
The most popular of these Panics is our PA100 Series. They provide a solution to the strict Americans With Disabilities Act (A.D.A.) Codes that confront every manufacturer and installer of 'all-glass' doors.
The interior portion of the device is a slender 1-1/4" (32 mm) tube stretching across the door and then gently turning upwards to the top of the door, eliminating any interference at the lower half of the door, which must remain clear of obstructions to pass A.D.A. demands.
All PA100 Series Panic Handles come with a 'dogging' feature that allows you to lock the device in the open position by simply sliding a lever, giving free access during business hours. They also can be used in conjunction with an Electric Strike, allowing for remote keyless entry. For your convenience, Custom Headers are available with all strike hardware installed.
For additional information, contact CRL Technical Sales from the home page by clicking on Contact Us, and then click on Technical Sales for Commercial Products. The latest catalog pages with complete details on our CRL-Blumcraft Access Handle product line can be found here.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting Glass Experts customer service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
