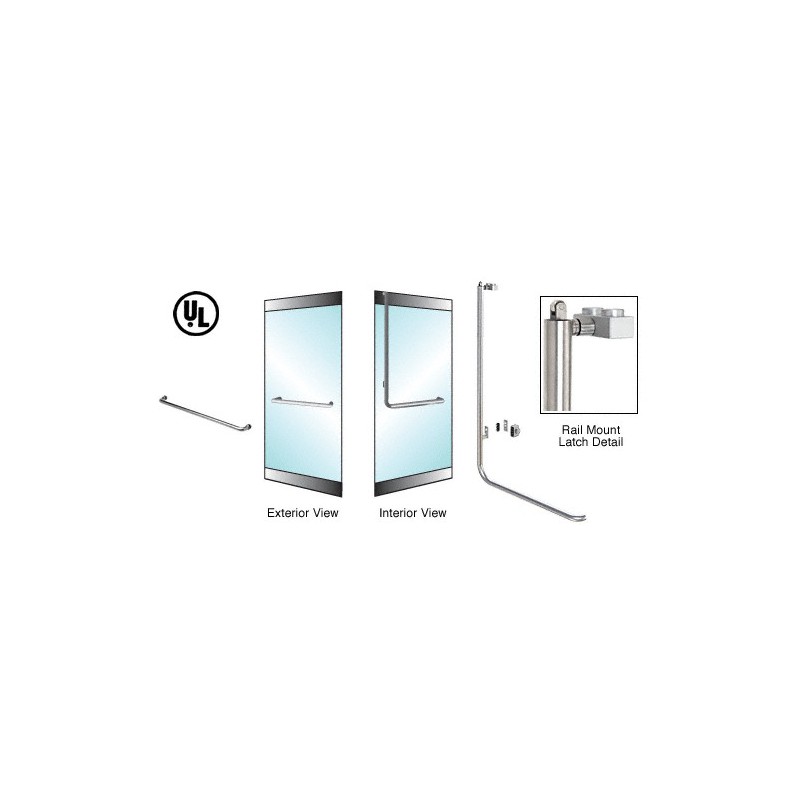

CRL-Blumcraft® Brushed Stainless Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Top Securing Panic Handle for 3/4" Glass - 3P100A4RKBS
This CRL-Blumcraft® Glass Door Panic Handle is designed to allow maximum view and a contemporary look to 3/4" (19 mm) tempered glass doors. Installations can be made on single or double doors. For your convenience, we have designed the handles so they are ready-to-install on 36" to 48" (914 mm to 1.22 m) wide doors ranging in height from 90" to 102" (2.29 to 2.59 m) high without modifications. "Dogging", locking the device in the open position, is easy with just a slide of a knob. A Door Stop/Strike must be ordered separately. Threshold Strike Plate available for PA110 Series. Custom Header available with your choice of pre-installed hardware.
For 3/4" (19 mm) Tempered Glass Doors and Can Be Used as a Replacement for Older Panics
Custom Sizes Ship within One to Two Weeks
Optional Keyed Access and Electric Strike
Certification: ANSI/BHMA A156.3 - 2001 Grade 1
For 3/4" (19 mm) Tempered Glass Doors and Can Be Used as a Replacement for Older Panics
Custom Sizes Ship within One to Two Weeks
Optional Keyed Access and Electric Strike
Certification: ANSI/BHMA A156.3 - 2001 Grade 1
Catalog Number: 3P100A4RKBS
Also Available in These Catalogs:
CRL63A Architectural Hardware Master, PAGE 176H
CRL14D Door and Entrance Catalog, PAGE 400D
DC14 Door Controls Catalog 2014, PAGE D398
LP11 Commercial Door Handles Catalog, PAGE L218
Color: Brushed Stainless
ANSI/BHMA Standards Web Site: buildershardware.com
U.S. UL Web Site: UL Certificate (US)
Canada UL Web Site: UL Certificate (CN)
Ship Via: No UPS - Common Carrier Only
Minimum Order: 1 Each
Also Available in These Catalogs:
CRL63A Architectural Hardware Master, PAGE 176H
CRL14D Door and Entrance Catalog, PAGE 400D
DC14 Door Controls Catalog 2014, PAGE D398
LP11 Commercial Door Handles Catalog, PAGE L218
Color: Brushed Stainless
ANSI/BHMA Standards Web Site: buildershardware.com
U.S. UL Web Site: UL Certificate (US)
Canada UL Web Site: UL Certificate (CN)
Ship Via: No UPS - Common Carrier Only
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
3DP100A4RKBS CRL-Blumcraft Brushed Stainless Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Designer Series Panic Handle for 3/4" Glass
3P100A4RK0RB CRL-Blumcraft Oil Rubbed Bronze Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Top Securing Panic Handle for 3/4" Glass
3P100A4RKBS CRL-Blumcraft Brushed Stainless Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Top Securing Panic Handle for 3/4" Glass
3P100A4RKPS CRL-Blumcraft Polished Stainless Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Top Securing Panic Handle for 3/4" Glass
3P100A4RPBS CRL-Blumcraft Brushed Stainless Left Hand Reverse Rail Mount Retainer Plate "A" Exterior, Top Securing Panic Handle for 3/4" Glass
3P100A4RPSB CRL-Blumcraft Satin Brass Left Hand Reverse Rail Mount Retainer Plate "A" Exterior, Top Securing Panic Handle for 3/4" Glass
5P100A4RKBS CRL-Blumcraft Brushed Stainless Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Top Securing Panic Handle for 5/8" Glass
5P100A4RKPS CRL-Blumcraft Polished Stainless Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Top Securing Panic Handle for 5/8" Glass
5P100A4RPBS CRL-Blumcraft Brushed Stainless Left Hand Reverse Rail Mount "A" Exterior Retainer Plate Handle for 5/8" Glass
BP100A4RKBS CRL-Blumcraft Brushed Stainless Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Top Securing Balanced Door Panic Handle
D3P100A4RKBS CRL-Blumcraft Brushed Stainless Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Top Securing D-Shape Panic Handle for 3/4" Glass
PA100A4RK0RB CRL-Blumcraft Oil Rubbed Bronze Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Top Securing Panic Handle
PA100A4RKBLS CRL-Blumcraft Black Stainless Steel Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Top Securing Panic Handle
PA100A4RKBS CRL-Blumcraft Brushed Stainless Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Top Securing Panic Handle
PA100A4RKPB CRL-Blumcraft Polished Brass Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Top Securing Panic Handle
PA100A4RKPS CRL-Blumcraft Polished Stainless Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Top Securing Panic Handle
PA100A4RKSB CRL-Blumcraft Satin Brass Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Top Securing Panic Handle
PA100A4RP0RB CRL-Blumcraft Oil Rubbed Bronze Left Hand Reverse Rail Mount Retainer Plate "A" Exterior, Top Securing Panic Handle
PA100A4RPBS CRL-Blumcraft Brushed Stainless Left Hand Reverse Rail Mount Retainer Plate "A" Exterior, Top Securing Panic Handle
PA100A4RPPB CRL-Blumcraft Polished Brass Left Hand Reverse Rail Mount Retainer Plate "A" Exterior, Top Securing Panic Handle
PA100A4RPPS CRL-Blumcraft Polished Stainless Left Hand Reverse Rail Mount Retainer Plate "A" Exterior, Top Securing Panic Handle
PA100A4RPSB CRL-Blumcraft Satin Brass Left Hand Reverse Rail Mount Retainer Plate "A" Exterior, Top Securing Panic Handle
3DP100A4RKBS CRL-Blumcraft Brushed Stainless Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Designer Series Panic Handle for 3/4" Glass
3P100A4RK0RB CRL-Blumcraft Oil Rubbed Bronze Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Top Securing Panic Handle for 3/4" Glass
3P100A4RKBS CRL-Blumcraft Brushed Stainless Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Top Securing Panic Handle for 3/4" Glass
3P100A4RKPS CRL-Blumcraft Polished Stainless Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Top Securing Panic Handle for 3/4" Glass
3P100A4RPBS CRL-Blumcraft Brushed Stainless Left Hand Reverse Rail Mount Retainer Plate "A" Exterior, Top Securing Panic Handle for 3/4" Glass
3P100A4RPSB CRL-Blumcraft Satin Brass Left Hand Reverse Rail Mount Retainer Plate "A" Exterior, Top Securing Panic Handle for 3/4" Glass
5P100A4RKBS CRL-Blumcraft Brushed Stainless Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Top Securing Panic Handle for 5/8" Glass
5P100A4RKPS CRL-Blumcraft Polished Stainless Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Top Securing Panic Handle for 5/8" Glass
5P100A4RPBS CRL-Blumcraft Brushed Stainless Left Hand Reverse Rail Mount "A" Exterior Retainer Plate Handle for 5/8" Glass
BP100A4RKBS CRL-Blumcraft Brushed Stainless Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Top Securing Balanced Door Panic Handle
D3P100A4RKBS CRL-Blumcraft Brushed Stainless Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Top Securing D-Shape Panic Handle for 3/4" Glass
PA100A4RK0RB CRL-Blumcraft Oil Rubbed Bronze Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Top Securing Panic Handle
PA100A4RKBLS CRL-Blumcraft Black Stainless Steel Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Top Securing Panic Handle
PA100A4RKBS CRL-Blumcraft Brushed Stainless Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Top Securing Panic Handle
PA100A4RKPB CRL-Blumcraft Polished Brass Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Top Securing Panic Handle
PA100A4RKPS CRL-Blumcraft Polished Stainless Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Top Securing Panic Handle
PA100A4RKSB CRL-Blumcraft Satin Brass Left Hand Reverse Rail Mount Keyed Access "A" Exterior, Top Securing Panic Handle
PA100A4RP0RB CRL-Blumcraft Oil Rubbed Bronze Left Hand Reverse Rail Mount Retainer Plate "A" Exterior, Top Securing Panic Handle
PA100A4RPBS CRL-Blumcraft Brushed Stainless Left Hand Reverse Rail Mount Retainer Plate "A" Exterior, Top Securing Panic Handle
PA100A4RPPB CRL-Blumcraft Polished Brass Left Hand Reverse Rail Mount Retainer Plate "A" Exterior, Top Securing Panic Handle
PA100A4RPPS CRL-Blumcraft Polished Stainless Left Hand Reverse Rail Mount Retainer Plate "A" Exterior, Top Securing Panic Handle
PA100A4RPSB CRL-Blumcraft Satin Brass Left Hand Reverse Rail Mount Retainer Plate "A" Exterior, Top Securing Panic Handle
SPECIFICATIONS
Material:
1-1/4" (32 mm) Diameter 385 Bronze or 304 Stainless Steel Tubing (2 mm thick)
Glass Thickness:
3/4" (19 mm)
Glass Fabrication: Varies
Please contact CRL Technical Sales
ORDERING OPTIONS
When ordering Panic Handles you must specify:
PA100 or PA110 Series
Right or Left Hand (as viewed from the outside)
Rail Mount (for doors with full length rails) or Glass Mount (for doors with patch rails)
Standard Retainer Plate or Optional Keyed Access Device
Brushed or Polished Stainless, Satin or Polished Brass Finish
Optional Threshold Strike Plate (PA110 Series Only)
For more information contact CRL Commercial Products Technical Sales Department.
Material:
1-1/4" (32 mm) Diameter 385 Bronze or 304 Stainless Steel Tubing (2 mm thick)
Glass Thickness:
3/4" (19 mm)
Glass Fabrication: Varies
Please contact CRL Technical Sales
ORDERING OPTIONS
When ordering Panic Handles you must specify:
PA100 or PA110 Series
Right or Left Hand (as viewed from the outside)
Rail Mount (for doors with full length rails) or Glass Mount (for doors with patch rails)
Standard Retainer Plate or Optional Keyed Access Device
Brushed or Polished Stainless, Satin or Polished Brass Finish
Optional Threshold Strike Plate (PA110 Series Only)
For more information contact CRL Commercial Products Technical Sales Department.
