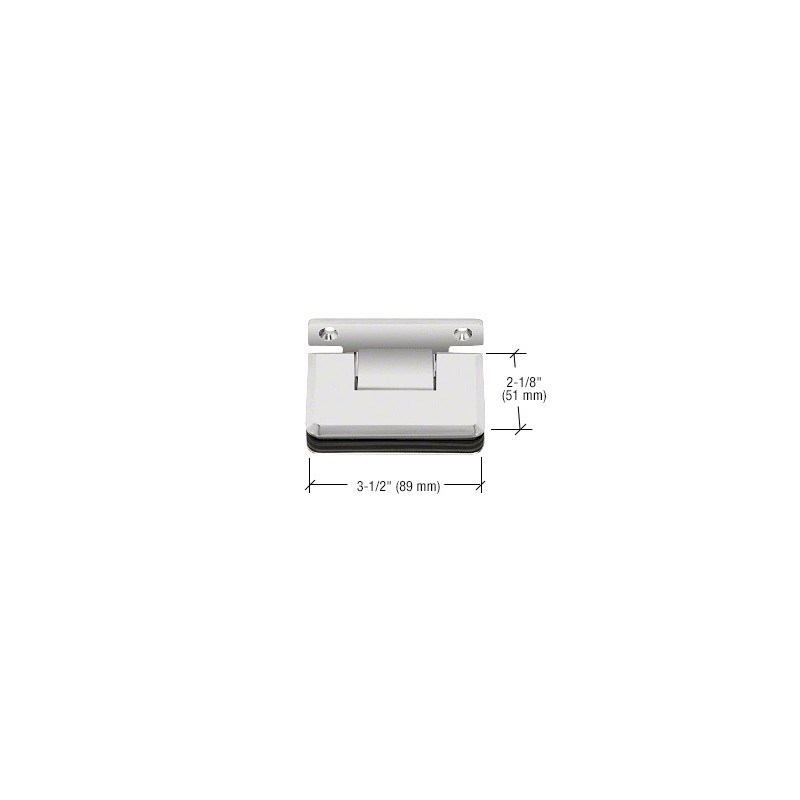

CRL Satin Chrome Pinnacle 3 - Point Movable Beveled Style Transom Clamp - PTC037SC
Our CRL 3-Point Movable Transom Clamps provides design alternatives to the traditional side mounted "teeter-totter" application. Mounted to the ceiling instead of the sides of the transom allows more glass exposure. The Clamps will hold at 45 degrees inward, at the closed position, and at 45 degrees outward. The square or beveled appearance matches many of our popular Hinge Series. Available finishes are Polished Chrome, Polished Brass, Brushed Nickel, Oil Rubbed Bronze, and Satin Chrome. Accommodates 1/2", 3/8", and 5/16" (12, 10, and 8 mm) thick tempered glass.
Catalog Number: PTC037SC
Also Available in These Catalogs:
SD16 Frameless Shower Door Hardware 2015, PAGE 189S
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 291J
Color: Satin Chrome
Ship Via: Can Ship UPS
Minimum Order: 1 Each
Also Available in These Catalogs:
SD16 Frameless Shower Door Hardware 2015, PAGE 189S
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 291J
Color: Satin Chrome
Ship Via: Can Ship UPS
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
PTC037CH CRL Polished Chrome Pinnacle 3 - Point Movable Beveled Style Transom Clamp
PTC037BN CRL Brushed Nickel Pinnacle 3 - Point Movable Beveled Style Transom Clamp
PTC037CH CRL Polished Chrome Pinnacle 3 - Point Movable Beveled Style Transom Clamp
PTC037BN CRL Brushed Nickel Pinnacle 3 - Point Movable Beveled Style Transom Clamp
SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Includes: Gaskets, Mounting Screws, Phillips Screws,
Allen Screws, and Glass Fabrication Dimensions
Gaskets are included for 3/8" and 1/2" (10 and 12 mm) glass only. If using 5/16" (8 mm) glass, Cat. No. P1N13 Gaskets must be ordered.
Cut-Out Required
NOTE: Maximum transom size is 28" W x 12" H (711 x 305 mm). Two Clamps must be used per transom. It is recommended to come in 6" (152 mm) to the center of the cutout for each Clamp.
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Includes: Gaskets, Mounting Screws, Phillips Screws,
Allen Screws, and Glass Fabrication Dimensions
Gaskets are included for 3/8" and 1/2" (10 and 12 mm) glass only. If using 5/16" (8 mm) glass, Cat. No. P1N13 Gaskets must be ordered.
Cut-Out Required
NOTE: Maximum transom size is 28" W x 12" H (711 x 305 mm). Two Clamps must be used per transom. It is recommended to come in 6" (152 mm) to the center of the cutout for each Clamp.
