CRL Brushed Nickel Prima Hinge with Rear Drip Plate - PPH08BN
The CRL Prima Hinge with Rear Drip Plate helps deflect water back into the shower. Water that may have escaped the shower in the gap between the hinge body and base plate is minimized due to the Drip Plate. The Drip Plate itself does not interfere in any way with the door swing. Stocked in our four most popular finishes, with other finishes available on special order. Drip Plates themselves (Cat. No. PPHWP1) are stocked in eight finishes for customers wanting to go back and add them to an existing installation.

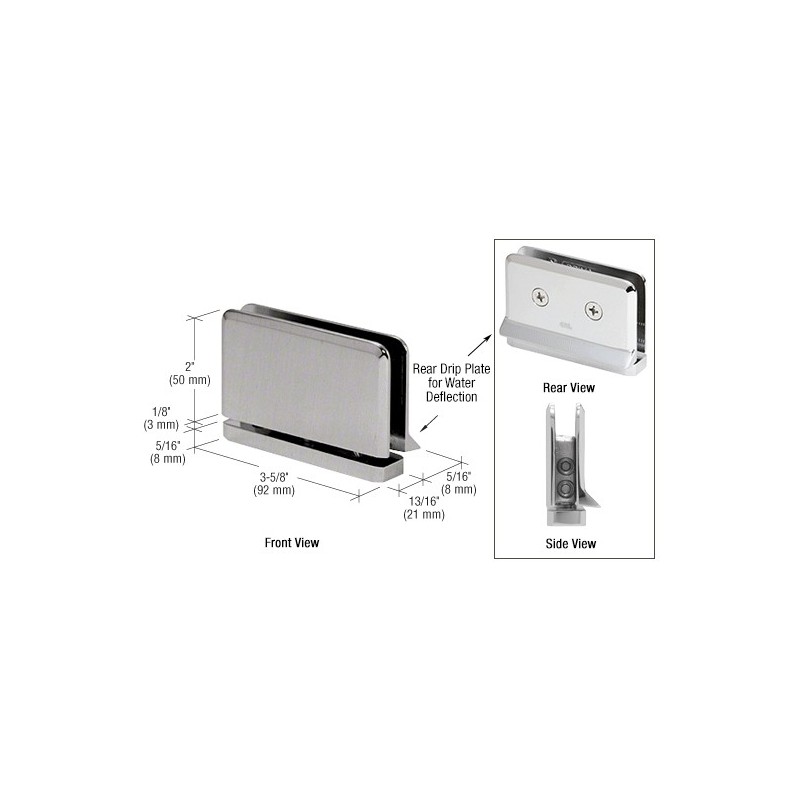

Attractive Drip Plate on Rear of Hinge Helps Deflect Water Back Into the Shower
Drip Plate Does Not Interfere with Door Swing
Use Monolithic Tempered Glass
Stocked in Four Most Popular Finishes
Other Finished Available Upon Special Order
Drip Plates Sold Separately in Eight Stock Finishes
Attractive Drip Plate on Rear of Hinge Helps Deflect Water Back Into the Shower
Drip Plate Does Not Interfere with Door Swing
Use Monolithic Tempered Glass
Stocked in Four Most Popular Finishes
Other Finished Available Upon Special Order
Drip Plates Sold Separately in Eight Stock Finishes
Catalog Number: PPH08BN
Also Available in These Catalogs:
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 119J
CRL93A Shower Door, PAGE SD048
Color: Brushed Nickel
Height: 2" (51 mm)
Width: 3-5/8" (92 mm)
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Minimum Order: 1 Each
Also Available in These Catalogs:
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 119J
CRL93A Shower Door, PAGE SD048
Color: Brushed Nickel
Height: 2" (51 mm)
Width: 3-5/8" (92 mm)
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
PPH08CH CRL Polished Chrome Prima Hinge with Rear Drip Plate
PPH08BR CRL Polished Brass Prima Hinge with Rear Drip Plate
PPH080RB CRL Oil Rubbed Bronze Prima Hinge with Rear Drip Plate
PPH08BN CRL Brushed Nickel Prima Hinge with Rear Drip Plate
PPH08CH CRL Polished Chrome Prima Hinge with Rear Drip Plate
PPH08BR CRL Polished Brass Prima Hinge with Rear Drip Plate
PPH080RB CRL Oil Rubbed Bronze Prima Hinge with Rear Drip Plate
PPH08BN CRL Brushed Nickel Prima Hinge with Rear Drip Plate
Optional 5 degree Pivot Pin set (for Prima, Cardiff, Rondo, and Shell Series): Optional 5 degree Pivot Pin Sets are available when you want to alter the closing position of the door by 5 degree. These Pivot Pins may be inserted prior to installation, or retrofitted after the installation is complete. Sold as a set: One for the top, and one for the bottom. Not included with hinge purchase. Pre-Set 5 degree Hinge models are available from stock.
Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum width of 31" (787 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor and ceiling, or floor and header.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required (PPH135 Model also requires two holes; PPH07 Model requires Cut-Out for Hinge and Hole for Clamp).
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).
Custom finishes are available on request. Contact the CRL Technical Sales Department.
Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum width of 31" (787 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor and ceiling, or floor and header.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required (PPH135 Model also requires two holes; PPH07 Model requires Cut-Out for Hinge and Hole for Clamp).
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).
Custom finishes are available on request. Contact the CRL Technical Sales Department.
