CRL Polished Nickel Top or Bottom Mount Prima Pivot Hinge with Attached U-Clamp - PPH07PN
CRL Prima Series Pivot Hinges are designed for use with 5/16" to 3/8" (8 to 10 mm) tempered safety glass, and provide an extra number of application possibilities. Some advantages of pivot type hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. Prima Series Pivot Hinges are self-centering, with four springs for maximum retention strength. Optional Cat. No. P1VP1N 5 degree Pre-Set Pivot Pin Sets may be ordered separately. In addition, Pre-Set 5 degree Hinge models are available. The PPH01 Model is adaptable to our Deluxe Header System for shower enclosures not going all the way up to the ceiling. Our PPH06 Model is only compatible with our EZ-Adjust Header System. It includes an adaptor used with the EZ-Adjust Header System.
Top or Bottom Mount with Attached U-Clamp (Provides Alternative to Using Traditional Header Systems)
Attached U-Clamp has Same Design and Profile as Hinge
This hinge series is patented (Patent No. 5,297,313) - CE Certification
Can Also Be Mounted at Bottom of Door and Adjacent Panel for Symmetry
5/16" to 3/8" (8 to 10 mm) Tempered Safety Glass
Stocked in Several Popular Finishes, with Custom Finishes Available
Use Monolithic Tempered Glass
Top or Bottom Mount with Attached U-Clamp (Provides Alternative to Using Traditional Header Systems)
Attached U-Clamp has Same Design and Profile as Hinge
This hinge series is patented (Patent No. 5,297,313) - CE Certification
Can Also Be Mounted at Bottom of Door and Adjacent Panel for Symmetry
5/16" to 3/8" (8 to 10 mm) Tempered Safety Glass
Stocked in Several Popular Finishes, with Custom Finishes Available
Use Monolithic Tempered Glass
Catalog Number: PPH07PN
Also Available in These Catalogs:
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 124J
SD16 Frameless Shower Door Hardware 2015, PAGE 132S
CRL93A Shower Door, PAGE SD051
Color: Polished Nickel

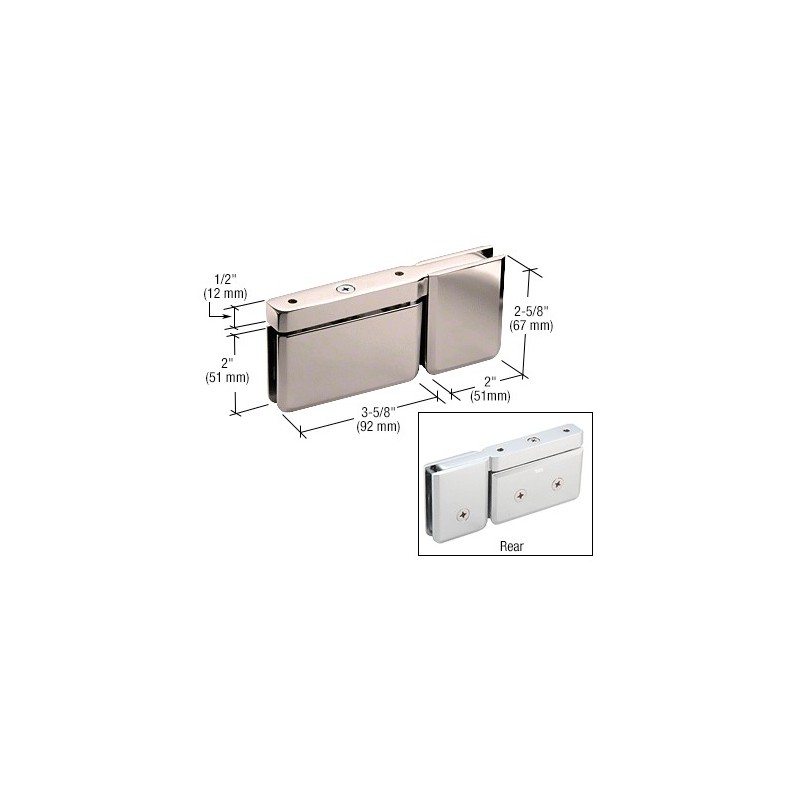

Height: 2" (51 mm)
Width: 3-5/8" (92 mm)
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Minimum Order: 1 Each
Also Available in These Catalogs:
CRL23R Frameless Shower Door and Mirror Hardware, PAGE 124J
SD16 Frameless Shower Door Hardware 2015, PAGE 132S
CRL93A Shower Door, PAGE SD051
Color: Polished Nickel
Height: 2" (51 mm)
Width: 3-5/8" (92 mm)
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
PPH07CH CRL Polished Chrome Top or Bottom Mount Prima Pivot Hinge with Attached U-Clamp
PPH07MBL CRL PPH07MBL Top or Bottom Mount Prima Pivot Hinge with Attached U-Clamp
PPH07BR CRL Polished Brass Top or Bottom Mount Prima Pivot Hinge with Attached U-Clamp
PPH070RB CRL Oil Rubbed Bronze Top or Bottom Mount Prima Pivot Hinge with Attached U-Clamp
PPH07BBRZ CRL Brushed Bronze Top or Bottom Mount Pivot Hinge with Attached U-Clamp
PPH07BN CRL Brushed Nickel Top or Bottom Mount Prima Pivot Hinge with Attached U-Clamp
PPH07PN CRL Polished Nickel Top or Bottom Mount Prima Pivot Hinge with Attached U-Clamp
PPH07SC CRL Satin Chrome Top or Bottom Mount Prima Pivot Hinge with Attached U-Clamp
PPH07ULBR CRL Unlacquered Brass Top or Bottom Mount Prima Pivot Hinge with Attached U-Clamp
PPH07CH CRL Polished Chrome Top or Bottom Mount Prima Pivot Hinge with Attached U-Clamp
PPH07MBL CRL PPH07MBL Top or Bottom Mount Prima Pivot Hinge with Attached U-Clamp
PPH07BR CRL Polished Brass Top or Bottom Mount Prima Pivot Hinge with Attached U-Clamp
PPH070RB CRL Oil Rubbed Bronze Top or Bottom Mount Prima Pivot Hinge with Attached U-Clamp
PPH07BBRZ CRL Brushed Bronze Top or Bottom Mount Pivot Hinge with Attached U-Clamp
PPH07BN CRL Brushed Nickel Top or Bottom Mount Prima Pivot Hinge with Attached U-Clamp
PPH07PN CRL Polished Nickel Top or Bottom Mount Prima Pivot Hinge with Attached U-Clamp
PPH07SC CRL Satin Chrome Top or Bottom Mount Prima Pivot Hinge with Attached U-Clamp
PPH07ULBR CRL Unlacquered Brass Top or Bottom Mount Prima Pivot Hinge with Attached U-Clamp
Optional 5 degree Pivot Pin set (For Prima, Cardiff, Rondo, and Shell Series): Optional 5 degree Pivot Pin Sets are available when you want to alter the closing position of the door by 5 degree. These Pivot Pins may be inserted prior to installation, or retrofitted after the installation is complete. Sold as a set: One for the top, and one for the bottom. Not included with hinge purchase. Pre-Set 5 degree Hinge models are available from stock.
Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum width of 31" (787 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" to 3/8" (8 to 10 mm) Tempered Safety Glass
Special Features: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor and ceiling, or floor and header.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required (PPH135 Model also requires two holes; PPH07 Model requires Cut-Out for Hinge and Hole for Clamp).
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).
Custom finishes are available on request. Contact the CRL Technical Sales Department.
Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum width of 31" (787 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" to 3/8" (8 to 10 mm) Tempered Safety Glass
Special Features: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor and ceiling, or floor and header.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required (PPH135 Model also requires two holes; PPH07 Model requires Cut-Out for Hinge and Hole for Clamp).
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).
Custom finishes are available on request. Contact the CRL Technical Sales Department.
