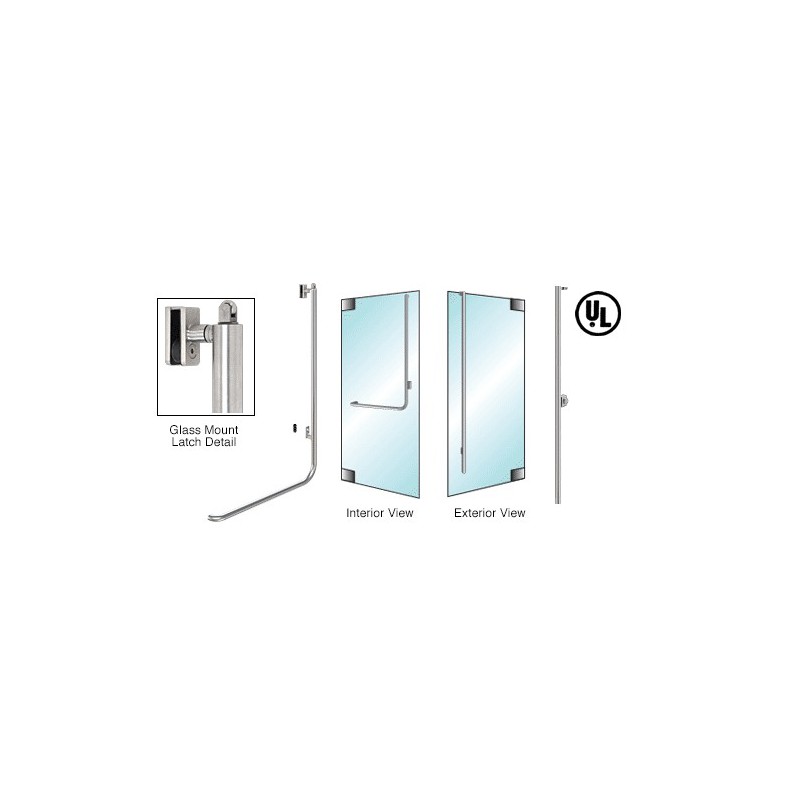

CRL-Blumcraft® Brushed Stainless Right Hand Reverse Glass Mount Keyed Access 'FS' Exterior Top Securing Panic Handle for 3/4" Glass - 3P100FS3GKBS
This CRL-Blumcraft® Glass Door Panic Handle is designed to allow maximum view and a contemporary look to 3/4" (19 mm) tempered glass doors. Installations can be made on single or double doors. For your convenience, we have designed the handles so they are ready-to-install on 36" to 48" (914 mm to 1.22 m) wide doors ranging in height from 90" to 102" (2.29 to 2.59 m) high without modifications. "Dogging", locking the device in the open position, is easy with just a slide of a knob. A Door Stop/Strike must be ordered separately. Threshold Strike Plate available for PA110 Series. Custom Header available with your choice of pre-installed hardware.
For 3/4" (19 mm) Tempered Glass Doors and Can Be Used as a Replacement for Older Panics
Custom Sizes Ship Within One to Two Weeks
Optional Keyed Access and Electric Strike
Certification: ANSI/BHMA A156.3 - 2001 Grade 1
For 3/4" (19 mm) Tempered Glass Doors and Can Be Used as a Replacement for Older Panics
Custom Sizes Ship Within One to Two Weeks
Optional Keyed Access and Electric Strike
Certification: ANSI/BHMA A156.3 - 2001 Grade 1
Catalog Number: 3P100FS3GKBS
Also Available in These Catalogs:
This Item is Not Yet Shown in Any Printed Catalog.
Color: Brushed Stainless
ANSI/BHMA Standards Web Site: buildershardware.com
U.S. UL Web Site: UL Certificate (US)
Canada UL Web Site: UL Certificate (CN)
Ship Via: No UPS - Common Carrier Only
Minimum Order: 1 Each
Also Available in These Catalogs:
This Item is Not Yet Shown in Any Printed Catalog.
Color: Brushed Stainless
ANSI/BHMA Standards Web Site: buildershardware.com
U.S. UL Web Site: UL Certificate (US)
Canada UL Web Site: UL Certificate (CN)
Ship Via: No UPS - Common Carrier Only
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
3P100FS3GKBS CRL-Blumcraft Brushed Stainless Right Hand Reverse Glass Mount Keyed Access 'FS' Exterior Top Securing Panic Handle for 3/4" Glass
5P100FS3GKBS CRL-Blumcraft Brushed Stainless Right Hand Reverse Glass Mount Keyed Access 'FS' Exterior, Top Securing Panic Handle for 5/8" Glass
5P100FS3GKPT CRL-Blumcraft Painted Right Hand Reverse Glass Mount Keyed Access 'FS' Exterior, Top Securing Panic Handle for 5/8" Glass
PA100FS3GK0RB CRL-Blumcraft Oil Rubbed Bronze Right Hand Reverse Glass Mount Keyed Access "FS" Exterior, Top Securing Panic Handle
PA100FS3GKPB CRL-Blumcraft Polished Brass Right Hand Reverse Glass Mount Keyed Access "FS" Exterior, Top Securing Panic Handle
PA100FS3GKPT CRL-Blumcraft Painted Right Hand Reverse Glass Mount Keyed Access "FS" Exterior, Top Securing Panic Handle
3P100FS3GKBS CRL-Blumcraft Brushed Stainless Right Hand Reverse Glass Mount Keyed Access 'FS' Exterior Top Securing Panic Handle for 3/4" Glass
5P100FS3GKBS CRL-Blumcraft Brushed Stainless Right Hand Reverse Glass Mount Keyed Access 'FS' Exterior, Top Securing Panic Handle for 5/8" Glass
5P100FS3GKPT CRL-Blumcraft Painted Right Hand Reverse Glass Mount Keyed Access 'FS' Exterior, Top Securing Panic Handle for 5/8" Glass
PA100FS3GK0RB CRL-Blumcraft Oil Rubbed Bronze Right Hand Reverse Glass Mount Keyed Access "FS" Exterior, Top Securing Panic Handle
PA100FS3GKPB CRL-Blumcraft Polished Brass Right Hand Reverse Glass Mount Keyed Access "FS" Exterior, Top Securing Panic Handle
PA100FS3GKPT CRL-Blumcraft Painted Right Hand Reverse Glass Mount Keyed Access "FS" Exterior, Top Securing Panic Handle
SPECIFICATIONS
Material:
1-1/4" (32 mm) Diameter 385 Bronze or 304 Stainless Steel Tubing (2 mm Thick)
Glass Thickness:
3/4" (19 mm)
Glass Fabrication: Varies
Please contact CRL Technical Sales
ORDERING OPTIONS
When ordering Panic Handles you must specify:
PA100 or PA110 Series
Right or Left Hand (as Viewed from the Outside)
Rail Mount (for Doors with Full Length Rails) or Glass Mount (for Doors with Patch Rails)
Standard Retainer Plate or Optional Keyed Access Device
Brushed or Polished Stainless, Satin or Polished Brass Finish
Optional Threshold Strike Plate (PA110 Series Only)
For more information contact CRL Commercial Products Technical Sales Department.
Material:
1-1/4" (32 mm) Diameter 385 Bronze or 304 Stainless Steel Tubing (2 mm Thick)
Glass Thickness:
3/4" (19 mm)
Glass Fabrication: Varies
Please contact CRL Technical Sales
ORDERING OPTIONS
When ordering Panic Handles you must specify:
PA100 or PA110 Series
Right or Left Hand (as Viewed from the Outside)
Rail Mount (for Doors with Full Length Rails) or Glass Mount (for Doors with Patch Rails)
Standard Retainer Plate or Optional Keyed Access Device
Brushed or Polished Stainless, Satin or Polished Brass Finish
Optional Threshold Strike Plate (PA110 Series Only)
For more information contact CRL Commercial Products Technical Sales Department.
