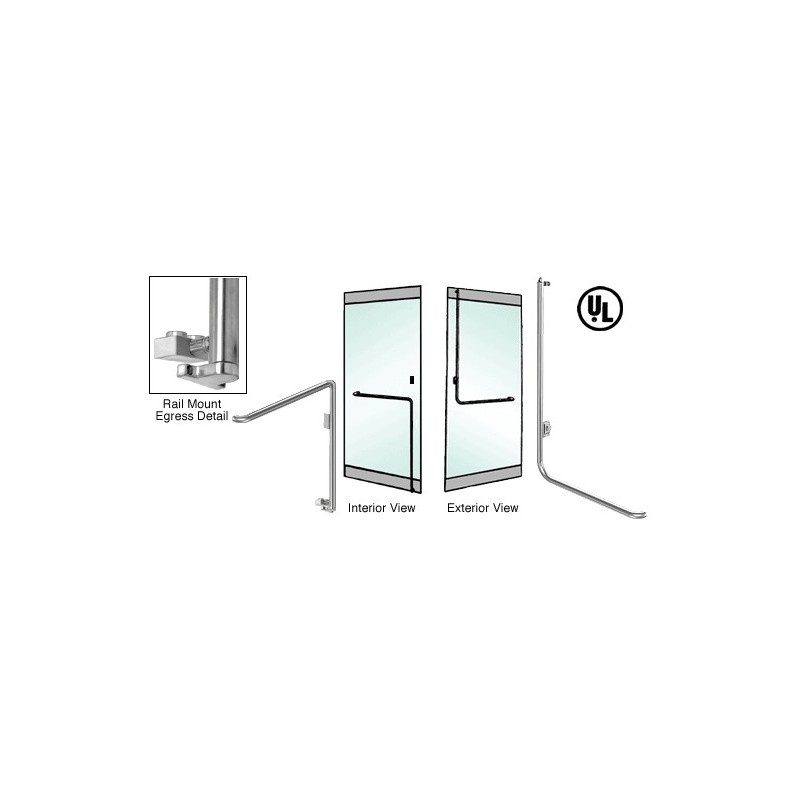

CRL-Blumcraft® Satin Brass Right Hand Reverse Rail Mount Retainer Plate "D" Exterior Bottom Securing Electronic Egress Control Handle - EG110D3RPSB

Finish: SATIN BRASS
UL and ULC Recognized Component
U.S. Patent No. 7,347,461 - Canadian Patent No. 2,418,658
Ideal for Maintaining Security and Aesthetics
Wide Selection of Exterior Fixed Handles for 1/2" (12 mm) or 3/4" (19 mm) Tempered Glass Doors
Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
Custom Finishes Available By Special Order
Custom Sizes Ship Within One to Two Weeks
CRL-Blumcraft® manufactures a complete line of Access Control Handles for your 'all-glass' door needs. We have Panic Devices, Deadbolt Handles, and Electronic Egress Control Handles in a wide variety of configurations. We can also supply you with Dummy Handles to match these devices, allowing you to maintain the same appearance throughout the project, but without the added costs.
UL and ULC Recognized Component
U.S. Patent No. 7,347,461 - Canadian Patent No. 2,418,658
Ideal for Maintaining Security and Aesthetics
Wide Selection of Exterior Fixed Handles for 1/2" (12 mm) or 3/4" (19 mm) Tempered Glass Doors
Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
Custom Finishes Available By Special Order
Custom Sizes Ship Within One to Two Weeks
Catalog Number: EG110D3RPSB
Also Available in These Catalogs:
CRL63A Architectural Hardware Master, PAGE 192H
CRL14D Door and Entrance Catalog, PAGE 404D
DC14 Door Controls Catalog 2014, PAGE D402
LP11 Commercial Door Handles Catalog, PAGE L222
Color: Satin Brass
UL Web Site: UL Certificate
Ship Via: No UPS - Common Carrier Only
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
EG110D3RKBS CRL-Blumcraft Brushed Stainless Right Hand Reverse Rail Mount Keyed Access "D" Exterior Bottom Securing Electronic Egress Control Handle
EG110D3RKPB CRL-Blumcraft Polished Brass Right Hand Reverse Rail Mount Keyed Access "D" Exterior Bottom Securing Electronic Egress Control Handle
EG110D3RKPS CRL-Blumcraft Polished Stainless Right Hand Reverse Rail Mount Keyed Access "D" Exterior Bottom Securing Electronic Egress Control Handle
EG110D3RKSB CRL-Blumcraft Satin Brass Right Hand Reverse Rail Mount Keyed Access "D" Exterior Bottom Securing Electronic Egress Control Handle
EG110D3RPBS CRL-Blumcraft Brushed Stainless Right Hand Reverse Rail Mount Retainer Plate "D" Exterior Bottom Securing Electronic Egress Control Handle
EG110D3RPPB CRL-Blumcraft Polished Brass Right Hand Reverse Rail Mount Retainer Plate "D" Exterior Bottom Securing Electronic Egress Control Handle
EG110D3RPPS CRL-Blumcraft Polished Stainless Right Hand Reverse Rail Mount Retainer Plate "D" Exterior Bottom Securing Electronic Egress Control Handle
EG110D3RPSB CRL-Blumcraft Satin Brass Right Hand Reverse Rail Mount Retainer Plate "D" Exterior Bottom Securing Electronic Egress Control Handle
An electronic switch concealed within the vertical tubing of our Electronic Egress Control Handle releases the Magnetic Lock at the top or bottom of the door, when the interior actuation bar is pushed. Please consult your local Building codes as they relate to the acceptability of electro-magnetic locking hardware.
If A.D.A. Codes are not a concern, we also have our EG110 Series Electronic Egress Control Handles. These Handles are of the same sleek design and operation as the EG100 Series, except they stretch across the door and then bend downward to the bottom of the door.
All of our EG100 and EG110 Electronic Egress Control Handles come equipped with surge suppression ZNR that is compatible with most Shear Locks. However, we suggest that the lock manufacturer be contacted to ensure compatibility with this feature.
All CRL Electronic Egress Control Handles go through rigorous testing before they leave our manufacturing facility, ensuring that a high quality, dependable product is installed every time. Most importantly, they are all UL and ULC Recognized Components, tested to NFPA Life and Safety Code Standards.
For additional information, contact CRL Technical Sales from the home page by clicking on Contact Us, and then click on Technical Sales for Commercial Products. The latest catalog pages with complete details on our CRL-Blumcraft Access Handle product line can be found here.
