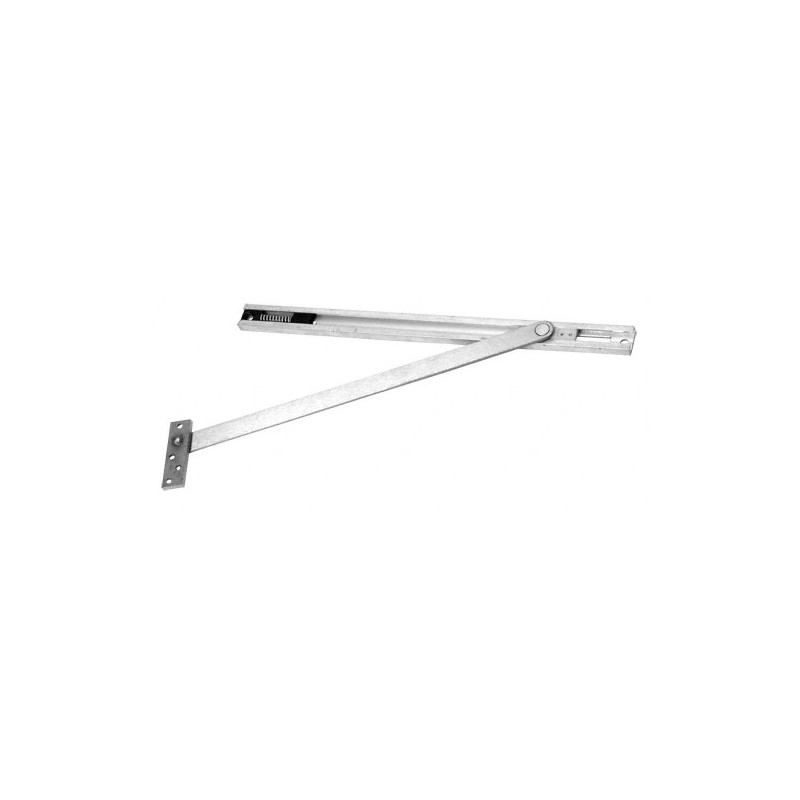

Rixson® Polished Brass 6 Series Concealed Mount Overhead Stop - 28-1/16" to 36" - 6236PB
Rixson® Overhead Stops are used to protect both doors and entire entryways from damage caused by violent openings due to wind gusts, heavy traffic frequency, abuse, and vandalism. By limiting the door travel, they can prevent damage to the door frame, closer, hinges, and pivots. The heavy shock absorbing spring provides 5º to 7º compression before reaching a dead-stop. Maximum opening is 110º. Furnished with fasteners for both wood or metal door and frame.
Protects Door and Entryway
Recommended for Moderate Traffic and Medium Weight Doors
For Exterior or Interior Doors
Concealed Slide Track in Top Door Rail Concealed and Surface Mounted
Non-Handed
ANSI 156.8 Grade 1
Protects Door and Entryway
Recommended for Moderate Traffic and Medium Weight Doors
For Exterior or Interior Doors
Concealed Slide Track in Top Door Rail Concealed and Surface Mounted
Non-Handed
ANSI 156.8 Grade 1
Catalog Number: 6236PB
Also Available in These Catalogs:
USAL15 U.S. Aluminum Curtain Wall Catalog, PAGE 33H9
AH18 Architectural Hardware Catalog 2018, PAGE 348Z
CRL63A Architectural Hardware Master, PAGE 482H
CRL83R Door and Window Replacement, PAGE 732W
CRL93A Architectural Hardware, PAGE CH187
DC14 Door Controls Catalog 2014, PAGE D379
Color: Polished Brass
Door Type Offset Pivots/Hinges: 28-1/16" to 33" (713 to 838 mm)
Door Type Center-Hung Pivots: 30" to 36" (762 to 914 mm)
Ship Via: Can Ship UPS
Minimum Order: 1 Each
Also Available in These Catalogs:
USAL15 U.S. Aluminum Curtain Wall Catalog, PAGE 33H9
AH18 Architectural Hardware Catalog 2018, PAGE 348Z
CRL63A Architectural Hardware Master, PAGE 482H
CRL83R Door and Window Replacement, PAGE 732W
CRL93A Architectural Hardware, PAGE CH187
DC14 Door Controls Catalog 2014, PAGE D379
Color: Polished Brass
Door Type Offset Pivots/Hinges: 28-1/16" to 33" (713 to 838 mm)
Door Type Center-Hung Pivots: 30" to 36" (762 to 914 mm)
Ship Via: Can Ship UPS
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
6236DU Rixson Dark Bronze 6 Series Concealed Mount Overhead Stop - 28-1/16" to 36"
6236PB Rixson Polished Brass 6 Series Concealed Mount Overhead Stop - 28-1/16" to 36"
6236SS Rixson Satin Stainless 6 Series Concealed Mount Overhead Stop - 28-1/16" to 36"
6246DU Rixson Dark Bronze Heavy-Duty 6 Series Multi-Function Concealed Mount Overhead Stop and Holder- 28-1/16" to 36"
6336DU Rixson Dark Bronze 6 Series Concealed Mount Overhead Stop - 33-1/16" to 41"
6336PB Rixson Polished Brass 6 Series Concealed Mount Overhead Stop - 33-1/16" to 41"
6336SS Rixson Satin Stainless 6 Series Concealed Mount Overhead Stop - 33-1/16" to 41"
6436DU Rixson Dark Bronze 6 Series Concealed Mount Overhead Stop - 38-1/16" to 46"
6436PB Rixson Polished Brass 6 Series Concealed Mount Overhead Stop - 38-1/16" to 46"
6436SS Rixson Satin Stainless 6 Series Concealed Mount Overhead Stop - 38-1/16" to 46"
6536DU Rixson Dark Bronze 6 Series Concealed Mount Overhead Stop - 43-1/16" to 50"
6536SS Rixson Satin Stainless 6 Series Concealed Mount Overhead Stop - 43-1/16" to 50"
6546DU Rixson Dark Bronze 6 Series Multi-Function Concealed Mount Overhead Stop and Holder - 43-1/16" to 50"
6546SS Rixson Satin Stainless 6 Series Multi-Function Concealed Mount Overhead Stop and Holder - 43-1/16" to 50"
6236DU Rixson Dark Bronze 6 Series Concealed Mount Overhead Stop - 28-1/16" to 36"
6236PB Rixson Polished Brass 6 Series Concealed Mount Overhead Stop - 28-1/16" to 36"
6236SS Rixson Satin Stainless 6 Series Concealed Mount Overhead Stop - 28-1/16" to 36"
6246DU Rixson Dark Bronze Heavy-Duty 6 Series Multi-Function Concealed Mount Overhead Stop and Holder- 28-1/16" to 36"
6336DU Rixson Dark Bronze 6 Series Concealed Mount Overhead Stop - 33-1/16" to 41"
6336PB Rixson Polished Brass 6 Series Concealed Mount Overhead Stop - 33-1/16" to 41"
6336SS Rixson Satin Stainless 6 Series Concealed Mount Overhead Stop - 33-1/16" to 41"
6436DU Rixson Dark Bronze 6 Series Concealed Mount Overhead Stop - 38-1/16" to 46"
6436PB Rixson Polished Brass 6 Series Concealed Mount Overhead Stop - 38-1/16" to 46"
6436SS Rixson Satin Stainless 6 Series Concealed Mount Overhead Stop - 38-1/16" to 46"
6536DU Rixson Dark Bronze 6 Series Concealed Mount Overhead Stop - 43-1/16" to 50"
6536SS Rixson Satin Stainless 6 Series Concealed Mount Overhead Stop - 43-1/16" to 50"
6546DU Rixson Dark Bronze 6 Series Multi-Function Concealed Mount Overhead Stop and Holder - 43-1/16" to 50"
6546SS Rixson Satin Stainless 6 Series Multi-Function Concealed Mount Overhead Stop and Holder - 43-1/16" to 50"
FEATURES AND SPECIFICATIONS:
Low Profile Concealed Channel Slide Track
Designed for Installation in Aluminum Door Webbing and Door Rails
Non-Handed
Designed for Moderate Traffic, Medium Weight Doors
Heavy Shock Absorbing Spring Provides 5 to 7 Compression Before Reaching a Dead-Stop
Non-Metal Slide Block
110 Maximum Opening
Furnished with Fasteners for Both Wood or Metal Door and Frame
Low Profile Concealed Channel Slide Track
Designed for Installation in Aluminum Door Webbing and Door Rails
Non-Handed
Designed for Moderate Traffic, Medium Weight Doors
Heavy Shock Absorbing Spring Provides 5 to 7 Compression Before Reaching a Dead-Stop
Non-Metal Slide Block
110 Maximum Opening
Furnished with Fasteners for Both Wood or Metal Door and Frame
