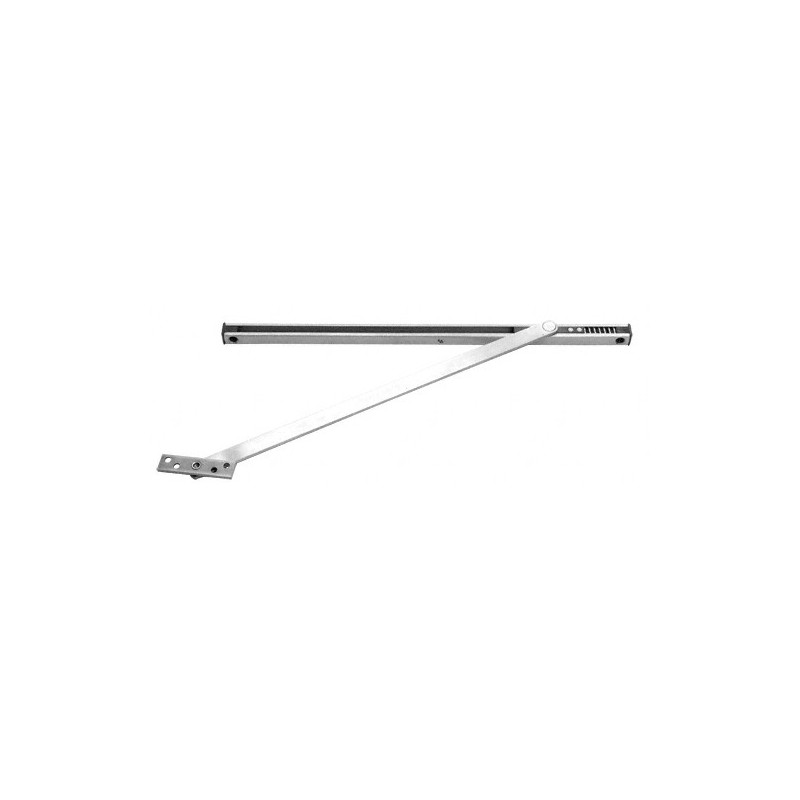

Rixson® Aluminum Multi-Function 10 Series Surface Mount Overhead Stop and Holder - 42-1/16" to 48" - 10546SA
Rixson® Overhead Stops and Holders are used to protect both doors and entire entryways from damage caused by violent openings due to wind gusts, heavy traffic frequency, abuse, and vandalism. By limiting the door travel, they can prevent damage to the door frame, closer, hinges, and pivots. The heavy shock absorbing spring provides 5º to 7º compression before reaching a dead-stop. Maximum opening is 110 Degrees. Furnished with fasteners for both wood or metal door and frame.
Surface Mounted for New or Retrofit Installations
Multi-Function Hold Open or Stop Only
Protects Door and Entryway
For Exterior or Interior Doors
Non-Handed
ANSI 156.8 Grade 1
Surface Mounted for New or Retrofit Installations
Multi-Function Hold Open or Stop Only
Protects Door and Entryway
For Exterior or Interior Doors
Non-Handed
ANSI 156.8 Grade 1
Catalog Number: 10546SA
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 348Z
CRL63A Architectural Hardware Master, PAGE 482H
CRL83R Door and Window Replacement, PAGE 732W
CRL93A Architectural Hardware, PAGE CH187
DC14 Door Controls Catalog 2014, PAGE D379
Color: Aluminum
Door Type Offset Pivots/Hinges: 42-1/16" to 48" (1.07 to 1.22 m)
Door Type Center-Hung Pivots: 45-1/16" to 48" (1.15 to 1.22 m)
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Minimum Order: 1 Each
Also Available in These Catalogs:
AH18 Architectural Hardware Catalog 2018, PAGE 348Z
CRL63A Architectural Hardware Master, PAGE 482H
CRL83R Door and Window Replacement, PAGE 732W
CRL93A Architectural Hardware, PAGE CH187
DC14 Door Controls Catalog 2014, PAGE D379
Color: Aluminum
Door Type Offset Pivots/Hinges: 42-1/16" to 48" (1.07 to 1.22 m)
Door Type Center-Hung Pivots: 45-1/16" to 48" (1.15 to 1.22 m)
Ship Via: Can Ship UPS
Shipping Weight: 2 lb (907g)
Minimum Order: 1 Each
CATALOG NUMBER DESCRIPTION COLOR
10346DU Rixson Dark Bronze Multi-Function 10 Series Surface Mount Overhead Stop and Holder - 30-1/16" to 38"
10346SA Rixson Aluminum Multi-Function 10 Series Surface Mount Overhead Stop and Holder - 30-1/16" to 38"
10346SS Rixson Satin Stainless Multi-Function 10 Series Surface Mount Overhead Stop and Holder - 30-1/16" to 38"
10446DU Rixson Dark Bronze Multi-Function 10 Series Surface Mount Overhead Stop and Holder - 36-1/16" to 45"
10446SA Rixson Aluminum Multi-Function 10 Series Surface Mount Overhead Stop and Holder - 36-1/16" to 45"
10446SS Rixson Satin Stainless Multi-Function 10 Series Surface Mount Overhead Stop and Holder - 36-1/16" to 45"
10546DU Rixson Dark Bronze Multi-Function 10 Series Surface Mount Overhead Stop and Holder - 42-1/16" to 48"
10546SA Rixson Aluminum Multi-Function 10 Series Surface Mount Overhead Stop and Holder - 42-1/16" to 48"
10546SS Rixson Satin Stainless Multi-Function 10 Series Surface Mount Overhead Stop and Holder - 42-1/16" to 48"
5258 CRL 10 Series Pull Side Optional Mounting Bracket
10346DU Rixson Dark Bronze Multi-Function 10 Series Surface Mount Overhead Stop and Holder - 30-1/16" to 38"
10346SA Rixson Aluminum Multi-Function 10 Series Surface Mount Overhead Stop and Holder - 30-1/16" to 38"
10346SS Rixson Satin Stainless Multi-Function 10 Series Surface Mount Overhead Stop and Holder - 30-1/16" to 38"
10446DU Rixson Dark Bronze Multi-Function 10 Series Surface Mount Overhead Stop and Holder - 36-1/16" to 45"
10446SA Rixson Aluminum Multi-Function 10 Series Surface Mount Overhead Stop and Holder - 36-1/16" to 45"
10446SS Rixson Satin Stainless Multi-Function 10 Series Surface Mount Overhead Stop and Holder - 36-1/16" to 45"
10546DU Rixson Dark Bronze Multi-Function 10 Series Surface Mount Overhead Stop and Holder - 42-1/16" to 48"
10546SA Rixson Aluminum Multi-Function 10 Series Surface Mount Overhead Stop and Holder - 42-1/16" to 48"
10546SS Rixson Satin Stainless Multi-Function 10 Series Surface Mount Overhead Stop and Holder - 42-1/16" to 48"
5258 CRL 10 Series Pull Side Optional Mounting Bracket
NOTE: Standard 10 series overhead stops and holders are shipped for push side mounting. For pull side mounting, order Cat. No. 5258 optional mounting bracket.
FEATURES AND SPECIFICATIONS:
Non-Handed Slide Track Design
Multi-Function Slider for Field Selection of Hold Open, Friction Stay or Stop Only
Degree of Opening Fully Adjustable 110 Maximum Opening
Heavy Shock Absorber Spring Provides 5 to 7 Compression Before Reaching a Dead-Stop
Non-Metal Slide and Shock Block
Furnished with Fasteners for Both Wood or Metal Door and Frame
Recommended for Medium Traffic, Medium Weight Doors
FEATURES AND SPECIFICATIONS:
Non-Handed Slide Track Design
Multi-Function Slider for Field Selection of Hold Open, Friction Stay or Stop Only
Degree of Opening Fully Adjustable 110 Maximum Opening
Heavy Shock Absorber Spring Provides 5 to 7 Compression Before Reaching a Dead-Stop
Non-Metal Slide and Shock Block
Furnished with Fasteners for Both Wood or Metal Door and Frame
Recommended for Medium Traffic, Medium Weight Doors
