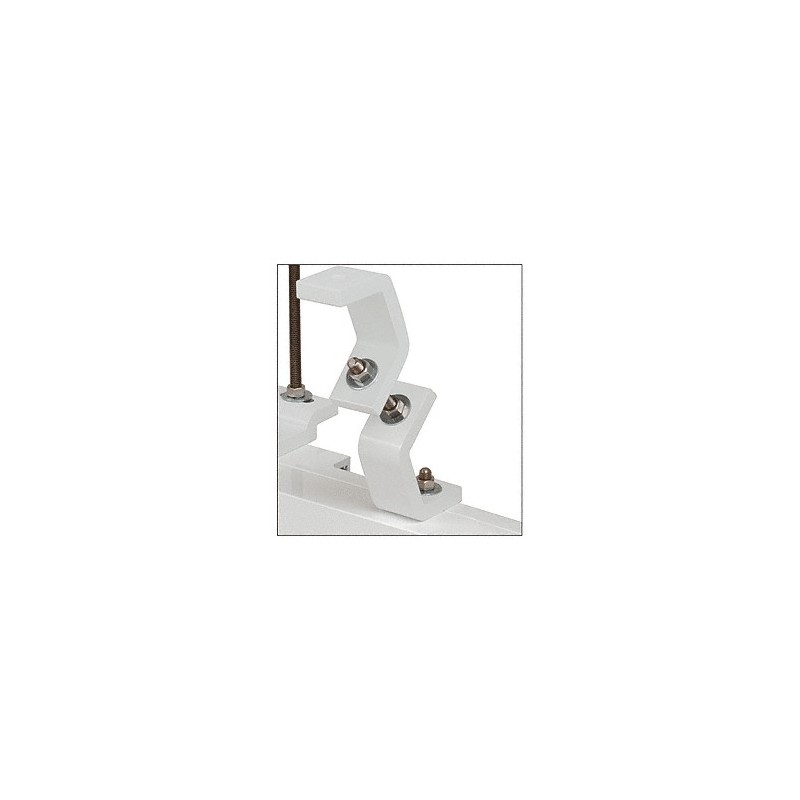

CRL SPS Angled Support Assembly - 90TSA1
The SPS Angled Support Assembly is used to provide lateral support when the mounting substrate is more than 6" (152 mm) from the top of the SPS Overhead Track. Each set consists of a steel Upper Angled Mounting Bracket, an aluminum Lower Angled Mounting Bracket, one 1/2"-13 x 55" (1.40 m) long Suspension Rod, one 3/8"-16 x 1-1/4" (31.7 mm) Track Mounting Bolt, five 1/2"-13 Hex Nuts, five Flat Washers, and two Lock Washers.
Angled to Provide Lateral Support
Accommodates Up to a 40" (1.02 m) Vertical Suspension from Structure
Provides 'Fine-Tune' Adjustment
Angled to Provide Lateral Support
Accommodates Up to a 40" (1.02 m) Vertical Suspension from Structure
Provides 'Fine-Tune' Adjustment
Catalog Number: 90TSA1
Also Available in These Catalogs:
Ship Via: Can Ship UPS
Also Available in These Catalogs:
Ship Via: Can Ship UPS
CATALOG NUMBER DESCRIPTION
90TSA1 CRL SPS Angled Support Assembly
90TSA1 CRL SPS Angled Support Assembly
The Upper Mounting Bracket requires a single fastener (not supplied) to attach it to the substrate, or if mounting to steel, it can be welded. Consult a structural engineer for recommendation.
NOTE: Must be used in conjunction with CRL Cat. No. 90TSX1 Extended Support Assemblies to stabilize the entire SPS Overhead Track.
NOTE: Must be used in conjunction with CRL Cat. No. 90TSX1 Extended Support Assemblies to stabilize the entire SPS Overhead Track.
