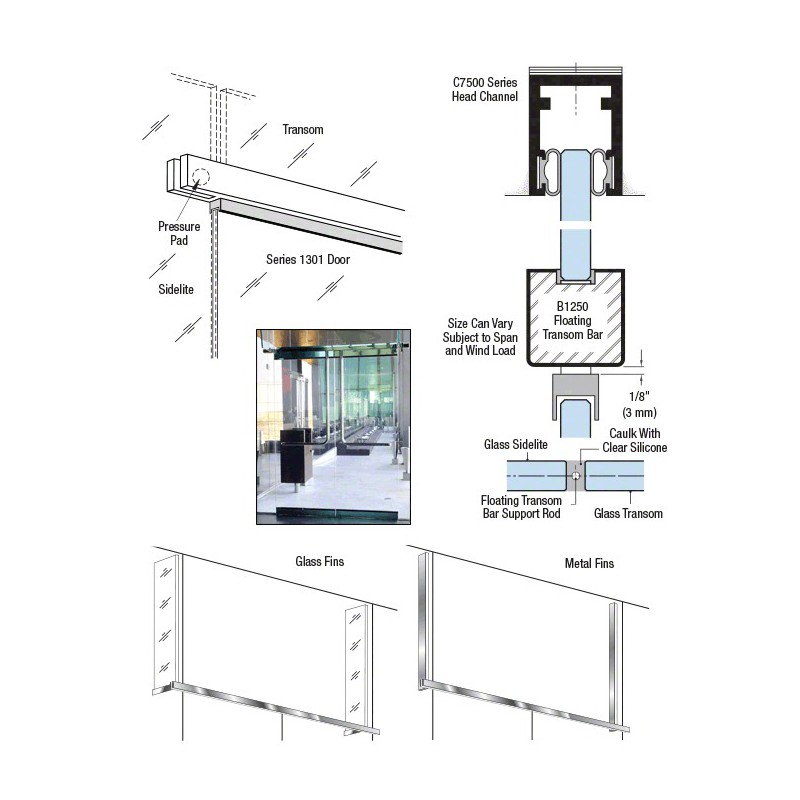

The CRL-Blumcraft B1250 Floating Transom System provides a clean, 'all-glass' look with minimal metal, and requires no holes or notches in the transom or sidelites. The narrow header of the B1250 is suspended from the C7500 Series Head Channel by thin stainless steel rods that are concealed in the gaps between the transom and sidelites.
Custom Length to Your Specifications
Suspended by Stainless Steel Rods
Use Monolithic Tempered Glass
No Holes or Notches in Transom or Sidelites
Available in Several Architectural Finishes, Custom Finishes Including Oil Rubbed Bronze Available on Special Order
Custom Length to Your Specifications
Suspended by Stainless Steel Rods
Use Monolithic Tempered Glass
No Holes or Notches in Transom or Sidelites
Available in Several Architectural Finishes, Custom Finishes Including Oil Rubbed Bronze Available on Special Order
Numro d'article: B125012SB
galement disponible dans ces trois catalogues:
Cet article n'apparat pas encore dans aucun catalogue imprim
Couleur: Laiton satin
Expdier par: Expdition UPS
galement disponible dans ces trois catalogues:
Cet article n'apparat pas encore dans aucun catalogue imprim
Couleur: Laiton satin
Expdier par: Expdition UPS
NUMRO D'ARTICLE DESCRIPTION COULEUR
B1250120RB CRL-Blumcraft Oil Rubbed Bronze B1250 Floating Transom System for 1/2" Glass
B125012BS CRL-Blumcraft Brushed Stainless B1250 Floating Transom System for 1/2" Glass
B125012PS CRL-Blumcraft Polished Stainless B1250 Floating Transom System for 1/2" Glass
B125012SB CRL-Blumcraft Satin Brass B1250 Floating Transom System for 1/2" Glass
B1250120RB CRL-Blumcraft Oil Rubbed Bronze B1250 Floating Transom System for 1/2" Glass
B125012BS CRL-Blumcraft Brushed Stainless B1250 Floating Transom System for 1/2" Glass
B125012PS CRL-Blumcraft Polished Stainless B1250 Floating Transom System for 1/2" Glass
B125012SB CRL-Blumcraft Satin Brass B1250 Floating Transom System for 1/2" Glass
Constructed of solid steel for ultimate strength, the B1250 Header is clad with brushed or polished stainless steel. Custom finishes are available upon request. The B1250 Floating Transom Bar 'sandwiches' the sidelite glass with concealed pressure pads, giving the system lateral support without any holes in the glass. Transom Bars can be designed to mount to walls or framing, and can also be used with Egress Handles in combination with electric strikes. The system is also available with glass or metal stabilizer fins when wind load conditions are greater than what the standard system can withstand.
La plupart des poids d'expdition sont approximatifs et n'ont pas t vrifis. Si vous avez besoin du poids exact pour calculer le cot de l'expdition et ce cot est ncessaire pour complter la commande, veuillez l'obtenir avant de soumettre votre demande en prenant le contact avec le service client Glass Experts. Les images des produits proviennent des produits actuels ou proches. Couleurs peuvent varier selon la carte vido de votre ordinateur et selon le rglage des color de votre cran.
