CRL-Blumcraft® Satin Brass B1250 Floating Transom System for 1/2" Glass - B125012SB

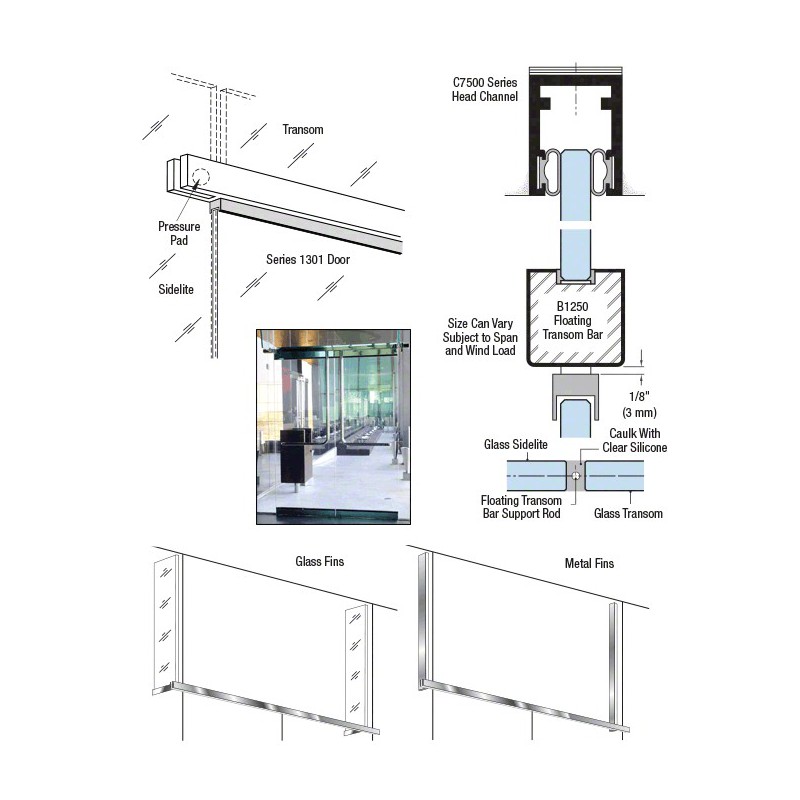

The CRL-Blumcraft® B1250 Floating Transom System provides a clean, 'all-glass' look with minimal metal, and requires no holes or notches in the transom or sidelites. The narrow header of the B1250 is suspended from the C7500 Series Head Channel by thin stainless steel rods that are concealed in the gaps between the transom and sidelites.
Custom Length to Your Specifications
Suspended by Stainless Steel Rods
Use Monolithic Tempered Glass
No Holes or Notches in Transom or Sidelites
Available in Several Architectural Finishes, Custom Finishes Including Oil Rubbed Bronze Available on Special Order
Custom Length to Your Specifications
Suspended by Stainless Steel Rods
Use Monolithic Tempered Glass
No Holes or Notches in Transom or Sidelites
Available in Several Architectural Finishes, Custom Finishes Including Oil Rubbed Bronze Available on Special Order
Catalog Number: B125012SB
Also Available in These Catalogs:
This Item is Not Yet Shown in Any Printed Catalog.
Color: Satin Brass
Ship Via: Can Ship UPS
Also Available in These Catalogs:
This Item is Not Yet Shown in Any Printed Catalog.
Color: Satin Brass
Ship Via: Can Ship UPS
CATALOG NUMBER DESCRIPTION COLOR
B1250120RB CRL-Blumcraft Oil Rubbed Bronze B1250 Floating Transom System for 1/2" Glass
B125012BS CRL-Blumcraft Brushed Stainless B1250 Floating Transom System for 1/2" Glass
B125012PS CRL-Blumcraft Polished Stainless B1250 Floating Transom System for 1/2" Glass
B125012SB CRL-Blumcraft Satin Brass B1250 Floating Transom System for 1/2" Glass
B1250120RB CRL-Blumcraft Oil Rubbed Bronze B1250 Floating Transom System for 1/2" Glass
B125012BS CRL-Blumcraft Brushed Stainless B1250 Floating Transom System for 1/2" Glass
B125012PS CRL-Blumcraft Polished Stainless B1250 Floating Transom System for 1/2" Glass
B125012SB CRL-Blumcraft Satin Brass B1250 Floating Transom System for 1/2" Glass
Constructed of solid steel for ultimate strength, the B1250 Header is clad with brushed or polished stainless steel. Custom finishes are available upon request. The B1250 Floating Transom Bar 'sandwiches' the sidelite glass with concealed pressure pads, giving the system lateral support without any holes in the glass. Transom Bars can be designed to mount to walls or framing, and can also be used with Egress Handles in combination with electric strikes. The system is also available with glass or metal stabilizer fins when wind load conditions are greater than what the standard system can withstand.
