CRL-Blumcraft Dark Bronze Anodized RG500 Series Two Piece Base Shoe - RG500DU
CRL-Blumcraft's RG500 Series Two Piece Base Shoe System is offered in stock lengths or custom fabricated to size with or without factory installed 3/4" (19 mm) glass panels. The system permits easy glass panel installation and replacement by means of bolts. CRL-Blumcraft's Glass Railing Systems are designed to meet and exceed typical code requirements for guard rail applications.
Numro d'article: RG500DU
galement disponible dans ces trois catalogues:
CRL63R Systmes de garde-corps d'architecture, PAGE 156R
HR18 Systmes de garde-corps d'architecture 2018, PAGE 182B
CRL93A Architectural Railings, PAGE HR044
Couleur: Bronze fonc
Expdier par: Non expdi par UPS - Uniquement par transporteur
Commande minimum: 1 Unit
galement disponible dans ces trois catalogues:
CRL63R Systmes de garde-corps d'architecture, PAGE 156R
HR18 Systmes de garde-corps d'architecture 2018, PAGE 182B
CRL93A Architectural Railings, PAGE HR044
Couleur: Bronze fonc
Expdier par: Non expdi par UPS - Uniquement par transporteur
Commande minimum: 1 Unit
NUMRO D'ARTICLE DESCRIPTION COULEUR
RG500MCA CRL-Blumcraft Mill Clear Anodized RG500 Series Two Piece Base Shoe
RG500SA CRL-Blumcraft Satin Anodized RG500 Series Two Piece Base Shoe
RG500MCA CRL-Blumcraft Mill Clear Anodized RG500 Series Two Piece Base Shoe
RG500SA CRL-Blumcraft Satin Anodized RG500 Series Two Piece Base Shoe

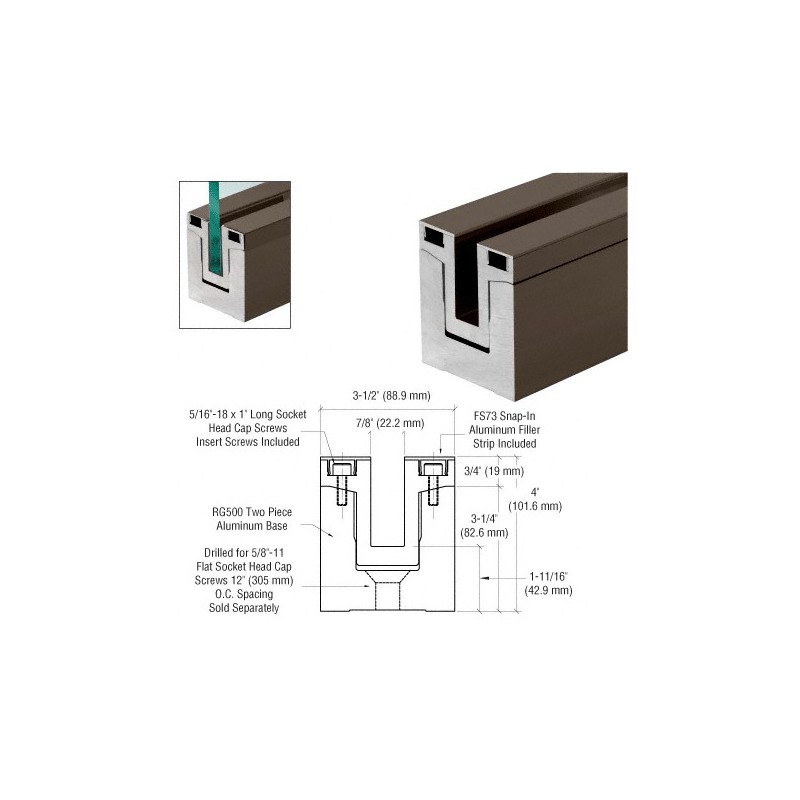

Typical Mountings for 3/4" (19 mm) Glass, Steel Sub-Structures by Others.
Installation Note: The RG500 Base is furnished with pre-drilled thru holes 12" (305 mm) O.C. spacing for 5/8"-11 Flat Socket Head Cap Screws. Customer to drill and tap thru 5/8" (16 mm) thick (minimum) Continuous Steel Plate using RG500 Base as a template for hole location.
Glass Specifications: 3/4" (19 mm) Thick Glass using Wet Glaze System.
Tempered Glass: Shall be 3/4" (19 mm) thick safety glass meeting the requirements of ANSI Standard 297.1 for Safety Glazing Materials and Consumer Product Safety Commission Standard 16 CFR 1201 Categories 1 and 2.
Shipping Note: Due to the difficulty in packaging and handling 144" (3.65 m) stock lengths, it is suggested that you take delivery of these at any of our distribution centers. If requiring shipment, all packaging and handling concerns must be agreed to by CRL and the customer prior to shipping. All shipping arrangements will be documented on your quotation for your signed approval.
Installation Note: The RG500 Base is furnished with pre-drilled thru holes 12" (305 mm) O.C. spacing for 5/8"-11 Flat Socket Head Cap Screws. Customer to drill and tap thru 5/8" (16 mm) thick (minimum) Continuous Steel Plate using RG500 Base as a template for hole location.
Glass Specifications: 3/4" (19 mm) Thick Glass using Wet Glaze System.
Tempered Glass: Shall be 3/4" (19 mm) thick safety glass meeting the requirements of ANSI Standard 297.1 for Safety Glazing Materials and Consumer Product Safety Commission Standard 16 CFR 1201 Categories 1 and 2.
Shipping Note: Due to the difficulty in packaging and handling 144" (3.65 m) stock lengths, it is suggested that you take delivery of these at any of our distribution centers. If requiring shipment, all packaging and handling concerns must be agreed to by CRL and the customer prior to shipping. All shipping arrangements will be documented on your quotation for your signed approval.
La plupart des poids d'expdition sont approximatifs et n'ont pas t vrifis. Si vous avez besoin du poids exact pour calculer le cot de l'expdition et ce cot est ncessaire pour complter la commande, veuillez l'obtenir avant de soumettre votre demande en prenant le contact avec le service client Glass Experts. Les images des produits proviennent des produits actuels ou proches. Couleurs peuvent varier selon la carte vido de votre ordinateur et selon le rglage des color de votre cran.
